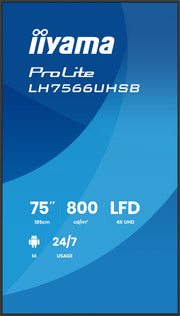

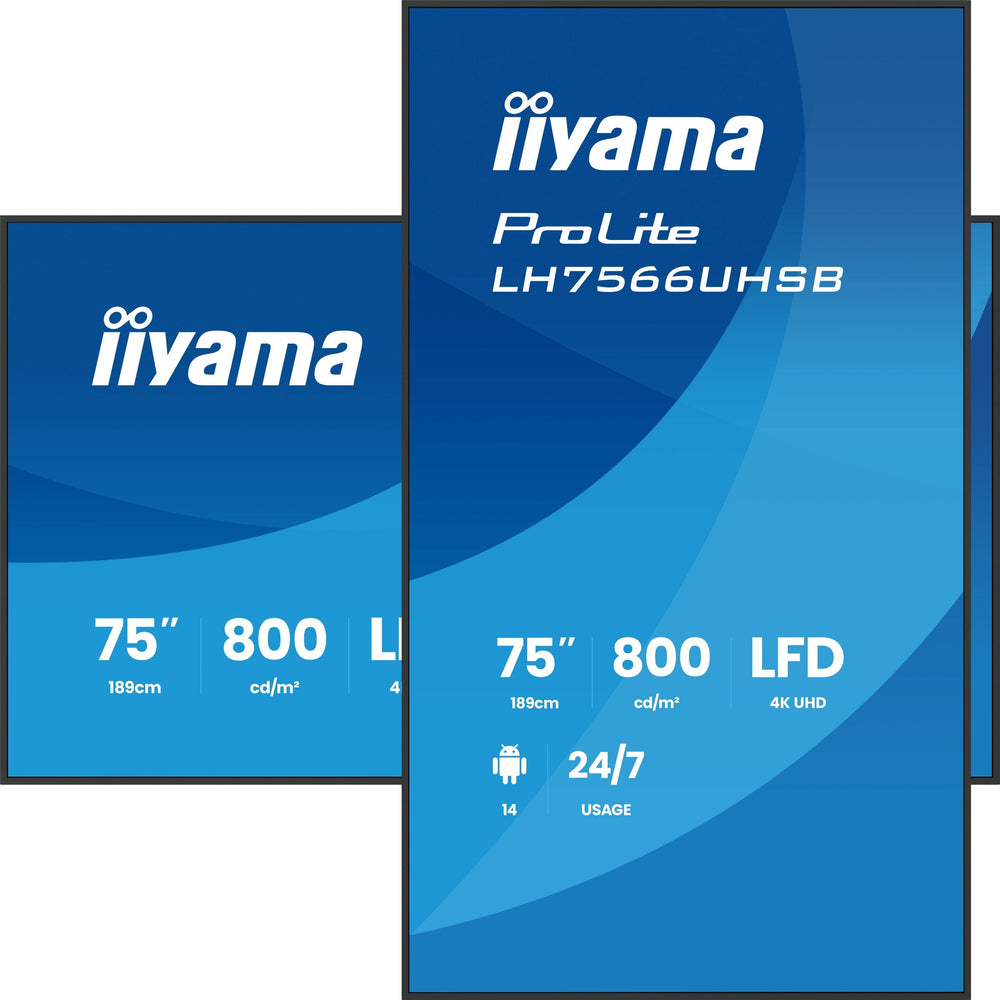

The iiyama ProLite LH7566UHSB-B1AG is a 75-inch 4K UHD professional digital signage display engineered for high-visibility environments. Featuring 800 cd/m² brightness, Android 14, and 24/7 fanless operation, it is supplied by Smart-Boards to schools, ministries, and enterprises across the GCC and Africa.
This 75-inch VA panel delivers 3840 x 2160 resolution with 800 nits brightness and a 5,000:1 contrast ratio, ensuring clarity in well-lit spaces. The device runs Android 14, allowing direct app installation and integration with iiSignage² CMS for secure remote content management. Its fanless design supports continuous 24/7 operation, while the 12.8 mm bezel minimizes visual distraction for multi-panel installations. Connectivity includes dual HDMI, LAN, RS-232C, and USB-C with 15 W PD for flexible deployment options.
Smart-Boards supplies this display to organizations requiring reliable visual communication across the GCC and Africa. The unit supports landscape or portrait orientation and includes iiShare for wireless presentation. FailOver input switching ensures content continuity by automatically detecting and prioritizing available signal sources. Installation services are available within the UAE, while deliveries to other countries arrive ready for local setup with remote guidance. Pricing is provided by quotation, accommodating education, government, and bulk tender requirements.
Key features
- Android 14 Platform - Built-in Android 14 OS allows direct application installation and native integration with iiSignage² CMS for centralized content control.
- High Brightness Panel - 75-inch VA screen offers 800 cd/m² brightness and 5,000:1 contrast for clear visibility in ambient light conditions.
- Continuous Operation - Fanless design and IP5X front rating enable reliable 24/7 duty cycle performance in demanding commercial environments.
- FailOver Input Switching - Automatically detects signal loss on default inputs and switches to the next available source to ensure continuous content display.
- Connectivity Options - Includes dual HDMI, RJ45 LAN, three RS-232C ports, IR, and USB-C with 15 W PD for versatile hardware integration.
Ideal for: Retail stores, corporate lobbies, hospitality venues, and educational institutions across the GCC and Africa requiring durable, high-brightness digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LH7566UHSB-B1AG
- Product type
- Digital Signage Display
- Key features
- Android 14 OS, iiSignage² CMS, iiControl DMS, iiShare wireless presentation, FailOver input switching, 24/7 operation, fanless design, landscape or portrait
- Finish
- Black, matte bezel
- IP rating
- IP5X (front)
- Orientation
- Landscape, portrait
Display
- Brightness
- 800 cd/m²
- Colour depth
- 8-bit + FRC
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- NTSC 72%
- Contrast ratio
- 5,000:1
- Panel technology
- VA
- Response time
- 6.5 ms
System
- Operating system
- Android 14
- Operating hours
- 24/7
- Storage conditions
- -10 to 60 °C
Connectivity
- USB-C
- USB-C × 1 (DP Alt Mode, 15 W PD)
- USB ports
- USB 2.0 × 2
- Wi-Fi
- Wi-Fi 5 (2.4 GHz / 5 GHz)
- Ports
- HDMI × 2, RJ45 (LAN) × 1, RS-232C × 3, IR × 2, 3.5 mm audio out × 1
Camera & audio
- Speaker output
- 2 × 10 W
Physical & warranty
- Operating temperature
- 0 to 40 °C
- Power consumption
- 219 W (typical)
- Standby power
- 0.5 W
- Dimensions
- 1679 x 957.1 x 69 mm
- Weight
- 28 kg
- VESA mount
- 500 x 500 mm
- Bezel size
- 12.8 mm (all sides)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, TÜV-Bauart, EAC, RoHS, ErP, WEEE, REACH, UKCA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this display suitable for outdoor use?
No. The IP5X rating protects the front panel from dust, but the unit is designed for indoor environments with operating temperatures between 0°C and 40°C.
Which countries does Smart-Boards deliver to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations, via established logistics partners.
Does Smart-Boards offer on-site installation?
On-site installation is provided within the UAE only. For other countries, the display is delivered ready for local setup, with remote guidance available if needed.
Can I manage multiple displays remotely?
Yes. The iiSignage² CMS allows secure remote management of content and displays, while iiControl DMS supports device monitoring and control across locations.
What is the bezel size for multi-screen setups?
The bezel measures 12.8 mm on all sides, minimizing visual gaps when arranging multiple units for large video walls or signage arrays.
Does it support portrait orientation?
Yes. The display supports both landscape and portrait orientations, allowing flexible content design for vertical messaging or safety information.
Is the pricing fixed or by quotation?
Pricing is by quotation only. Smart-Boards provides tailored quotes for education, government, bulk, and tender options based on order size and destination.
