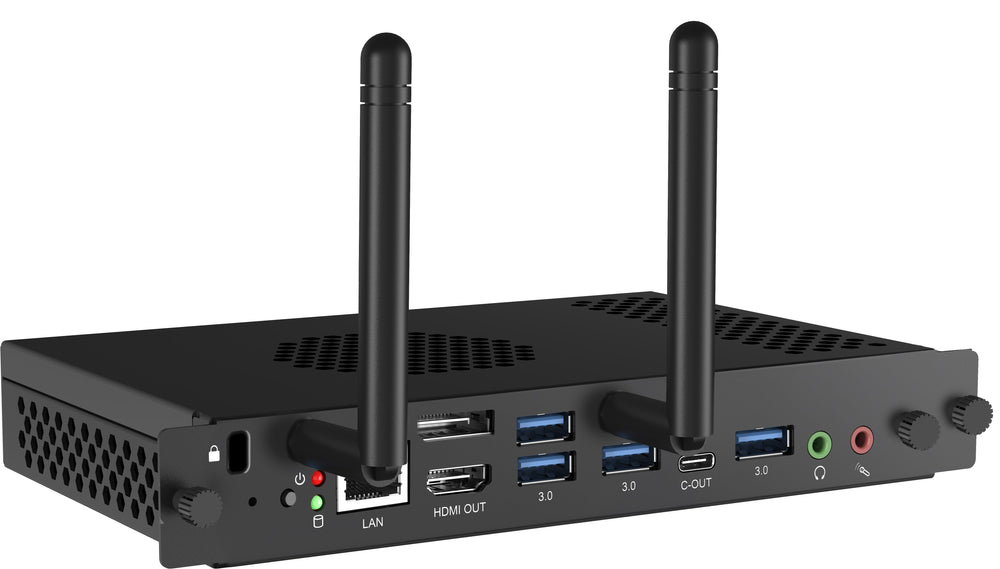

The iiyama OPC51204BC-1 is a slot-in OPS module that transforms large displays into standalone workstations. It features an Intel Core i5-12450H processor, 8GB DDR4 RAM, and a 256GB PCIe SSD. Smart-Boards supplies this unit for interactive flat panels in the GCC and Africa.
This slot-in computer integrates directly into compatible iiyama interactive flat panels to create a fully functional workstation without external cabling. Powered by a 12th Gen Intel Core i5-12450H processor and integrated Intel UHD graphics, it handles daily business and educational tasks efficiently. The module includes 8GB of DDR4 RAM expandable to 32GB, paired with a 256GB M.2 PCIe SSD for fast boot times and responsive application performance. It runs on Windows 11 IoT Enterprise, providing a stable environment for commercial and public sector deployments.
Connectivity is provided via Wi-Fi 6 (802.11ax), Bluetooth 5.2, and a Gigabit LAN port, ensuring reliable network integration in diverse environments. The unit offers four USB 3.0 ports, one USB 3.2 Type-C port, HDMI 2.0, and DisplayPort 1.4 outputs for flexible peripheral and display connections. Designed for operational durability, it withstands temperatures from 0°C to 45°C and operates quietly with noise levels below 34dB. Smart-Boards, as an authorised iiyama reseller, provides this module with manufacturer warranty and after-sales support for sites across the GCC and Africa.
Key features
- Processing Power - Intel Core i5-12450H CPU with TPM 2.0 security and integrated UHD graphics for smooth multitasking and secure operations.
- Memory and Storage - 8GB DDR4 RAM expandable to 32GB, combined with a 256GB PCIe M.2 SSD for rapid data access and system responsiveness.
- Wireless Connectivity - Built-in Wi-Fi 6 (802.11ax) and Bluetooth 5.2 ensure stable wireless connections for peripherals and network access.
- Input and Output Ports - Features four USB 3.0 ports, one USB 3.2 Type-C port, HDMI 2.0, DisplayPort 1.4, and a Gigabit LAN interface.
- Operational Specifications - Operates within 0°C to 45°C temperature range with low power consumption of 80.7W typical and 2.9W standby.
- Physical Dimensions - Compact form factor measuring 180 x 119 x 30mm and weighing 0.60kg, designed for easy installation into OPS slots.
Ideal for schools, universities, and government offices in the GCC and Africa requiring reliable, low-maintenance computing for interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- OPC51204BC-1
- Product type
- OPS Slot PC
- Brand
- IIYAMA
- Key features
- Intel Core i5-12450H, TPM 2.0, 8 GB DDR4 (max 32 GB), 256 GB SSD, Intel UHD Graphics, Wi-Fi 6, Bluetooth 5.2, Windows 11 IoT Enterprise, 4K UHD at 60 Hz output
- Compatibility
- Intel Core i5-12450H, 8GB DDR4, 256GB SSD, Intel UHD Graphics, Windows 11 IoT Enterprise
System
- Processor
- Intel Core i5-12450H (12th Gen)
- Graphics
- Intel UHD Graphics
- Operating system
- Windows 11
- RAM
- 8 GB (max 32 GB)
- Storage
- 256 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- DisplayPort 1.4 Out × 1
- Ethernet (RJ45)
- RJ45 (Gigabit) × 1
- HDMI output
- HDMI Out (HDMI 2.0) × 1
- USB ports
- USB 3.0 × 4, USB-C 3.2 × 1
- Wi-Fi
- Wi-Fi 6 (802.11ax)
Camera & audio
- Audio in
- Audio in × 1
- Audio out
- Audio out × 1
Physical & warranty
- Mounting type
- OPS slot
- Operating humidity
- 10% to 95% RH
- Operating temperature
- 0 to 45 °C
- Power consumption
- 80.7 W (typical)
- Standby power
- 2.9 W
- Dimensions
- 180 x 119 x 30mm
- Weight
- 0.60kg
- Shipping dimensions
- 260 x 192 x 72mm
- Shipping weight
- 0.957kg
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this module support external monitors?
Yes. The OPC51204BC-1 includes one HDMI 2.0 port and one DisplayPort 1.4 output, allowing connection to external displays with resolutions up to 3840 x 2160 at 60Hz.
What operating system is installed?
The unit comes pre-installed with Windows 11 IoT Enterprise, designed for stable and secure operation in commercial and public sector environments.
Can the RAM be upgraded later?
Yes. The module includes 8GB of DDR4 RAM but supports expansion up to a maximum of 32GB, allowing for future performance upgrades.
Which countries can receive this product?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the product is delivered ready for local setup, with remote guidance available if needed.
Does this include a warranty?
Yes, this product is supplied with the manufacturer warranty plus Smart-Boards after-sales support. Delivery times depend on the country and order size.
What are the power consumption levels?
The typical power usage is 80.7W, with a standby consumption of 2.9W, making it energy efficient for continuous operation in classroom or meeting settings.
