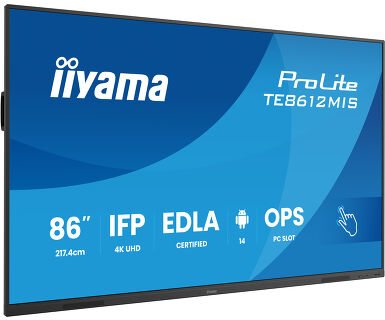

iiyama 86" Interactive 4K UHD Touchscreen elevating interactive collaboration. A 86" interactive display built for boardrooms, classrooms and training rooms.
Built for modern meeting rooms and classrooms, the iiyama 86" 4K UHD elevating collaboration is an all-in-one interactive flat panel with a crisp screen, natural writing and built-in collaboration tools. It replaces the projector-and-whiteboard setup with one clean device that deploys fast and is easy to use. Smart-Boards delivers it throughout the GCC and African markets with demos, tailored quotations and cost-efficient shipping through established logistics partners.
Key features
- 86" display at 400 cd/m² brightness in 4K UHD for sharp, readable content
- 40 Points Multi Touch, Infrared touch for smooth, natural writing and group work
- Built-in Android 14 on a RK3576 Octa-core A72 × 4 + A53 × 4 processor for apps, whiteboarding and casting
- Integrated audio (2 × 16W) that fills the room
- Flexible connectivity: HDMI In (HDMI 2.0) × 2; USB 3.2 × 4, USB-C 3.2 × 1, USB-C 2…
- Wireless ready (Wi-Fi 6, 2.4G/5G, Bluetooth 5.0) for cable-free sharing
| Accessories | Remote control, Touch pen × 4, Mounting bracket for NUC, Mounting bracket for webcam, Quick start guide, Safety guide |
|---|---|
| Ambient light sensor | Yes |
| Audio in | Audio In × 1 |
| Audio out | Audio Out × 1 |
| Backlight | IPS DLED |
| Bluetooth | Bluetooth 5.0 |
| Blue light filter | Yes |
| Brightness | 400 cd/m² |
| Cpu | RK3576 Octa-core A72 × 4 + A53 × 4 |
| Display color | 10bit |
| Dp 1 2 | DisplayPort 1.2 × 1 |
| Ethernet rj45 | RJ45 (1000 Mbps Port) × 2 |
| Gpu | Mali G52 MC3 |
| Hdmi input | HDMI In (HDMI 2.0) × 2 |
| Hdmi output | HDMI Out × 1 |
| Included cables | Power, USB, HDMI |
| Operating temprature | 0 °C to 40 °C |
| Ops pc slot | Optional |
| Os version | Android 14 |
| Power consumption | < 181 W |
| Power standby | ? 0.5 W |
| Product dimensions | 1957 × 1160 × 98 mm |
| Product weight | 48.5 kg |
|---|---|
| Ram | 8 GB |
| Resolution | 4K UHD |
| Screen size | 86" |
| Sd card slot | Micro SD Slot × 1 |
| Serial port | RS232 × 1 |
| Shipping dimensions | 2110 × 1291 × 225 mm |
| Speaker output | 2 × 16W |
| Speaker type | Built-in Speakers |
| Storage | 128 GB |
| Surface protection | Anti-Glare Smooth Glass |
| Touch points | 40 Points Multi Touch |
| Touch technology | Infrared |
| Type c functionality | USB 3.2 Gen 1, 65W PD (Front), 15W PD (Rear), DP IN 1.2 |
| Type c in | Type-C × 2 (Front × 1; Rear × 1) |
| Usb ports | USB 3.2 × 4, USB-C 3.2 × 1, USB-C 2.0 × 1 |
| Vgainput | VGA × 1 (Rear) |
| Viewing angle | 178° (H) / 178° (V) |
| Wall mount | 800 × 600 mm (VESA) |
| Warranty | 5 years |
| Wi fi | Wi-Fi 6, 2.4G/5G |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the iiyama 86" 4K UHD elevating collaboration?
It is a 86" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at 4K UHD on a led backlight (ips dled), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 40 Points Multi Touch, Infrared, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Android 14 on board for whiteboarding, casting and apps, powered by a RK3576 Octa-core A72 × 4 + A53 × 4 processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (2 × 16W) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Because of its size we recommend professional mounting - included within the UAE.
7. Which countries can you deliver to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
8. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
9. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the iiyama 86" 4K UHD elevating collaboration ready for your local team to set up, with remote guidance if needed.
10. What warranty do I get?
It is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
