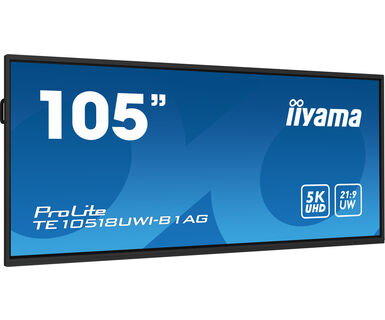

The iiyama ProLite TE10518UWI-B1AG is a 105-inch interactive flat panel featuring 5K UHD resolution and a 21:9 ultra-wide aspect ratio. Designed for large meeting rooms and lecture halls, it supports Microsoft Teams Front Row and includes integrated audio components. Smart-Boards supplies this unit across the GCC and Africa.
This 104.6-inch display delivers a native 5120 x 2160 resolution on a VA panel with 450 cd/m² brightness. The 21:9 format accommodates multiple content windows side-by-side, optimizing space for collaborative work. It uses PureTouch-IR+ technology for 40-point touch accuracy with palm rejection, supporting fingers, stylus, and gloves. The matte black metal housing houses a fanless system for silent operation in professional environments.
Integrated iiWare 11 runs on Android 13, providing built-in tools like iiyama Class and wireless sharing via EShare. Connectivity includes four HDMI ports, two USB-C inputs with up to 100W power delivery, and dual RJ45 LAN ports. Audio is handled by dual 16W speakers, a 16W subwoofer, and an 8-array microphone for clear voice pickup. The unit operates on AC 100-240V and fits standard VESA 1000 x 400mm mounting patterns.
Key features
- Ultra-Wide 5K Display - The 105-inch screen offers 5120 x 2160 resolution and a 21:9 aspect ratio for expansive multitasking.
- Integrated Collaboration OS - iiWare 11 provides Android-based tools including iiyama Class, cloud drives, and EShare wireless connectivity.
- Advanced Audio System - Built-in dual 16W speakers, a 16W subwoofer, and an 8-array microphone ensure clear audio for video conferencing.
- Versatile Connectivity - Features four HDMI inputs, two USB-C ports with 100W PD, and dual RJ45 LAN ports for stable network integration.
- Precision Touch Control - PureTouch-IR+ technology supports 40 touch points with 1mm accuracy using fingers, stylus, or gloves.
Ideal for: Large executive boardrooms, lecture theatres, and training centres requiring ultra-wide visual space and integrated conferencing tools, suitable for multi-site deployments across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- Power, USB, HDMI
- Controls
- Power, Power Indicator, Remote Sensor, Ambient Light Sensor, USB-C Connector (3.2), USB Connector (3.2), Microphone Indicator
- Finish
- black, matte
- Orientation
- landscape
Display
- Backlight
- VA
- Blue light filter
- Yes
- Brightness
- 450 cd/m²
- Colour depth
- 1.07B 10bit (NTSC 90%)
- Resolution
- 5120 × 2160
- Screen size
- 105"
- Surface protection
- AG coated glass, zero bonding
- Viewing angle
- horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
- Aspect ratio
- 21:9
- Contrast ratio
- 4000:1
- Panel technology
- VA
- Response time
- 6.5ms
Touch
- Palm rejection
- Yes
- Touch accuracy
- ± 1 mm
- Touch points
- 40, 32pt writing (HID, only with supported OS)
- Touch technology
- Infrared
System
- Ambient light sensor
- Yes
- Processor
- CPU: A311D2, A76*4+A55*4(2.4GHz), GPU: Mali G610, RAM: 8GB, ROM: 64GB
- Graphics
- Mali G610
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Storage
- 64 GB
- Operating hours
- 16/7
- Storage conditions
- - 20°C - 60°C
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- x2 (IN/OUT, Auto switch for PC & Android, 1000MB)
- HDMI input
- HDMI In (HDMI 2.1) × 1; HDMI In (HDMI 2.0) × 3
- HDMI output
- HDMI Out × 1
- Serial port
- RS232 × 1
- USB-C functions
- USB 3.2 Gen 1, 3840 × 2160, DP Alt mode 1.2, Touch, 15W PD (front), 100W PD (back)
- USB-C
- Type-C × 2 (Front × 1; Rear × 1)
- USB ports
- x8 (media playback / peripherals / storage – front: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 15W PD), back side: 2x 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 100W PD), top side: 2x 3.2 (Gen 1, 5Gbit))
- Wi-Fi
- yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IIEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0)
- Inputs
- HDMI x4 (1x 2.1, max. 5120x2160 @60Hz; 3x 2.0, max. 3840x2160 @60Hz, YUV444); DisplayPort x1 (5120); USB-C x2 (3.2 Gen 1, 3840x2160 @60Hz, DP Alt mode 1.2, Touch, front: 15W PD, back: 100W PD)
- Outputs
- HDMI x1 (3840x2160 @60Hz, YUV/RGB444); USB-C x1 (3.2 Gen 1, 3840x2160 @60Hz (DP 1.2 Alt mode, Touch, 5W PD, MSD (Multi-Screen Display))
- Ports
- RS-232c x1
- Connectivity options
- USB
Camera & audio
- Audio in
- Mini jack x1
- Audio out
- S/PDIF (Optical) x1; Mini jack x1; Speakers 2 x 16W (Front + 16W Subwoofer)
- Speaker output
- 2 × 16W (Front + 16W Subwoofer)
- Speaker type
- Built-in Speakers
- Microphone
- 8-Array (8m voice pick-up, Front facing)
Physical & warranty
- Material
- metal
- In the box
- power, USB, HDMI
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- 282W typical, 0.5W stand by, 0.3W off mode
- Standby power
- 0.5 W
- Dimensions
- 2507.2 × 1130.1 × 103 mm
- Weight
- 91.4 kg
- Shipping dimensions
- 2668 × 1305 × 280 mm
- VESA mount
- 1000 × 400 mm (VESA)
- Warranty
- 5 years
- Shipping weight
- 119.5kg
- Input voltage
- AC 100 - 240V, 50/60Hz
- Power source
- internal
- Certifications
- CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this display be delivered to African countries?
Yes, Smart-Boards ships to GCC and African countries through established logistics partners at the lowest possible cost. Delivery time depends on the country and order size and is confirmed on the quotation.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup with remote guidance if needed to assist with the initial configuration.
Does the unit support Microsoft Teams Front Row?
Yes, the display is optimised for Microsoft Teams Front Row, allowing users to host or join meetings using the touchscreen as a central hub with an expansive canvas for meeting room equity.
What is the warranty coverage for this model?
The product comes with a 5-year manufacturer warranty. Eligible countries and specific terms can be verified via the Warranty section on the Smart-Boards website before purchase.
Can I book a demonstration before purchasing?
Yes, Smart-Boards offers live or virtual demonstrations before purchase. This allows your team to review the 5K resolution, touch response, and iiWare 11 software features firsthand.
Does it have built-in wireless presentation capabilities?
Yes, it includes WiFi 6 and EShare for wireless connection with Windows, iOS, and Android devices. It also supports iiyama Share for managed wireless collaboration.
What accessories are included with the panel?
The package includes a remote control with batteries, power cable, USB cable, and HDMI cable. A quick start guide and safety guide are also provided for initial setup.
