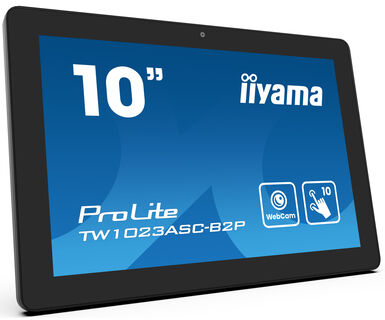

The iiyama ProLite TW1023ASC-B2P is a 10.1-inch interactive touch panel PC designed for high-use environments. Featuring Android 13, PoE connectivity, and a 10-point capacitive touch interface, it supports retail, POS, and hospitality applications across the GCC and Africa through Smart-Boards.
This 10.1-inch (25.5cm) display utilizes an IPS panel with edge-to-edge glass to deliver a 1280 x 800 native resolution at 450 cd/m² brightness. The 16:9 aspect ratio and 16.7 million colour support ensure clear visuals for interactive tasks. Its robust 1.25mm glass with 6H hardness rating withstands frequent contact in busy retail or hospitality settings.
Powered by Android 13 and a Rockchip RK3568 processor, the unit offers 4GB RAM and 32GB eMMC storage for responsive performance. Integration is simplified via IEEE 802.3 at PoE, providing both power and data through a single cable. The system includes built-in microphone, speakers, and WiFi 5 for versatile standalone or networked operation in offices and public spaces.
Key features
- Android 13 Platform - Pre-installed Android 13 OS with Chrome, Play Store, and kiosk mode for custom application deployment and remote management.
- PoE Connectivity - Supports IEEE 802.3 at Power over Ethernet (max 30W) for simplified installation using a single cable for data and power.
- 10-Point Touch Interface - Projective capacitive touch technology supports 10 simultaneous touch points via finger, glove, or capacitive stylus for intuitive interaction.
- Multimedia Integration - Built-in 2x 1.5W speakers, HDMI input, and a microphone allow for audio-visual applications and video conferencing without external hardware.
- Versatile Mounting Options - Supports landscape, portrait, and face-up orientations with a 75 x 75mm VESA mount and included cable management cover for clean setups.
Ideal for interactive POS terminals, information kiosks, and hospitality check-in counters, this display suits buyers across the GCC and Africa seeking reliable, easy-to-install AV solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- SD Card Slot × 1
- Controls
- Power, home, brightness +, brightness -, volume +, volume -
- Duty cycle
- 24/7
- Orientation
- landscape, portrait, face-up
Display
- Colour
- black, matte
- Backlight
- IPS
- Brightness
- 450 cd/m²
- Colour depth
- 16.7mln 8bit
- Resolution
- 1280 × 800
- Screen size
- 10.1 inch
- Surface protection
- 1.25mm
- Viewing angle
- horizontal/vertical: 160°/160°, right/left: 80°/80°, up/down: 80°/80°
- Aspect ratio
- 16:9
- Contrast ratio
- 1000:1 with touch
- Panel technology
- IPS
- Response time
- 25ms
Touch
- Touch points
- 10 (HID, only with supported OS)
- Touch technology
- Capacitive
System
- Processor
- Rockchip RK3568 Quad-core A55 × 4
- Graphics
- G52 MP2
- Operating system
- Android 13
- RAM
- 4 GB
- Storage
- 32 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- x1 (PoE - IEEE802.3 at/Max. 30W)
- HDMI output
- HDMI Out × 1
- USB ports
- x4 (1 x 3.2 Gen1 (5Gbps, DC5V, 900mA), 2 x 2.0 (DC5V, 500mA), 1 x MICRO with OTG)
- Wi-Fi
- Wi-Fi IEEE802.11a/b/g/n/ac
- Outputs
- HDMI x1 (mini HDMI, 1280x720 @60Hz)
- Connectivity options
- USB
Camera & audio
- Audio in
- Mini jack x1
- Audio out
- Speakers 2 x 1.5W
- Built-in camera
- Yes
- Speaker output
- Speakers 2 × 1.5W
- Speaker type
- Built-in Speakers
- Microphone
- x1
Physical & warranty
- In the box
- quick start guide, safety guide, AC adapter, cable cover
- Power consumption
- 18W typical, 0.5W stand by
- Standby power
- 0.5 W
- Dimensions
- 255 × 172 × 30.5 mm
- Weight
- 0.8 kg
- Shipping dimensions
- 398 × 223 × 68 mm
- VESA mount
- 75 × 75 mm (VESA)
- Shipping weight
- 1.36kg
- Input voltage
- DC 12 V
- Power source
- external
- Certifications
- CE, EAC, RoHS support, ErP, WEEE, REACH, UKCA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What operating system does the iiyama TW1023ASC-B2P use?
It runs Android 13, allowing users to install applications directly from the Play Store or deploy custom kiosk apps for interactive use in retail and office environments.
Does this model support Power over Ethernet?
Yes, the device supports IEEE 802.3 at PoE, delivering up to 30W of power and data through a single LAN cable, which simplifies installation in commercial settings.
Which countries can Smart-Boards deliver this product to?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations, via established logistics partners to ensure cost-effective delivery.
Is on-site installation available outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed to assist with configuration.
What is the touch technology used in this panel?
The TW1023ASC-B2P uses projective capacitive touch technology, supporting up to 10 simultaneous touch points via finger, latex gloves, or a capacitive stylus for precise input.
Can this display be mounted in portrait orientation?
Yes, the unit supports landscape, portrait, and face-up orientations, making it adaptable for vertical digital signage or interactive table-top applications in various commercial spaces.
What connectivity ports are included on the device?
It features one HDMI mini input, one audio input jack, one RJ45 LAN port, one USB 3.2 Gen1 port, two USB 2.0 ports, and one USB Micro OTG port for peripheral connections.
