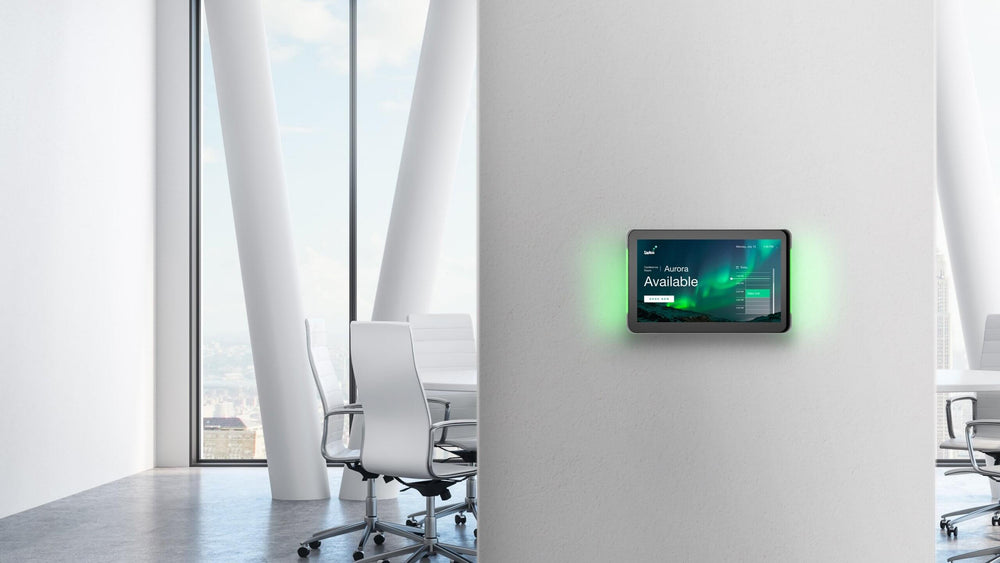

The IAdea XDS-1078 is a 10.1-inch interactive room booking control panel running Android 12. It features a 1280 x 800 capacitive touch display and supports PoE+ for simplified installation. Smart-Boards supplies this solution for meeting rooms across the GCC and Africa.
This 10.1-inch LCD panel delivers 1280 x 800 resolution with 350 nits brightness and 10-point multi-touch. It runs Android 12, supporting HTML5, CSS, and JavaScript for custom booking interfaces. The device includes built-in stereo speakers, Wi-Fi 802.11 b/g/n, and Ethernet connectivity. A 3.5 mm audio out and micro SD slot allow for expanded storage up to 64 GB.
The XDS-1078 supports advanced signage features like StrongCache for offline playback and AppLock for security. It offers multiple mounting options, including VESA 75 x 75 mm and flush-to-wall covers. Power can be supplied via 12 V DC or IEEE 802.3at PoE+. The unit operates between 0°C and 40°C with 10-85% humidity tolerance, ensuring reliability in various environments.
Key features
- Android 12 Platform - Runs on Android 12 with Chromium-based browser engine for web-based booking widgets and third-party solution integration.
- Touch Display Specs - Features a 10.1-inch LCD with 1280 x 800 resolution, 350 nits brightness, and 10-point capacitive multi-touch.
- Power and Connectivity - Supports IEEE 802.3at PoE+ and 12 V DC input, with Wi-Fi, Ethernet RJ45, USB 2.0/3.0, and micro SD expansion.
- Signage Management - Includes SignApps Express Utility and W3C SMIL support for remote commissioning, multi-zone layouts, and automatic error recovery.
- Mounting Options - Designed with built-in VESA 75 x 75 mm posts and a flush-to-wall back cover for discreet installation in meeting rooms.
Ideal for corporate meeting rooms and conference facilities requiring intuitive booking interfaces, suitable for buyers across the GCC and Africa seeking reliable AV control solutions.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot (up to 64 GB)
- Model
- XDS-1078
- Key features
- Multi-zone layout, transparent PNG overlay, scrolling ticker, AlwaysOn and AppLock, StrongCache offline playback, Remote commissioning, HTML5 widgets, auto-play of scheduled content
Display
- Resolution
- 1280 × 800
- Screen size
- 10.1"
- Viewing angle
- 160° (H) / 160° (V)
- Panel technology
- LCD
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- Capacitive
System
- Operating system
- Android 12
Connectivity
- Ethernet (RJ45)
- RJ45 × 1 (10/100 BASE-T)
- USB ports
- USB 2.0 × 1, USB 3.0 × 1, Micro USB for ADB
- Wi-Fi
- 802.11 b/g/n
- Connectivity options
- Wi-Fi, Ethernet, Bluetooth, USB
Camera & audio
- Audio out
- 3.5 mm audio out
Physical & warranty
- In the box
- DC in and microSD stopper, Hardware and software quick start guide
- Operating humidity
- 10% to 85% RH
- Dimensions
- 269.88 x 170.77 x 28.5 mm
- Weight
- 727 g
- Shipping dimensions
- 336 x 100 x 227 mm
- VESA mount
- 75 x 75 mm
- Warranty
- 1 year (parts and labor)
- Country of origin
- Taiwan
- Input voltage
- 100–240 V AC, 50/60 Hz
- Power source
- Power over Ethernet (PoE) or DC adapter
- Certifications
- CE / FCC / RoHS
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the IAdea XDS-1078 support PoE?
Yes, the XDS-1078 supports IEEE 802.3at PoE+ for power and data. It also offers an Eco mode compatible with IEEE 802.3af PoE, reducing cabling complexity in meeting rooms.
Can I install this outside the UAE?
Smart-Boards delivers ready-for-setup units to GCC and African countries. On-site installation is available only within the UAE; other regions receive remote guidance for local setup.
What is the display resolution?
The display resolution is 1280 x 800 pixels. This provides clear visibility for room status information and booking widgets on the 10.1-inch capacitive touch panel.
Is Android 12 supported?
Yes, the device runs Android 12. This ensures access to modern web standards, security updates, and compatibility with current third-party booking solutions via the Chromium engine.
Does it include a camera?
No, the XDS-1078 does not include a built-in camera. It functions primarily as a room booking panel and control interface, relying on external cameras for video conferencing integration.
What are the mounting options?
The unit features built-in VESA 75 x 75 mm posts for standard arms. It also includes a flush-to-wall mount back cover for discrete installation in meeting room walls or panels.
Which countries receive delivery?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations. Delivery costs are optimized through established logistics partners, with availability confirmed on quotation.
