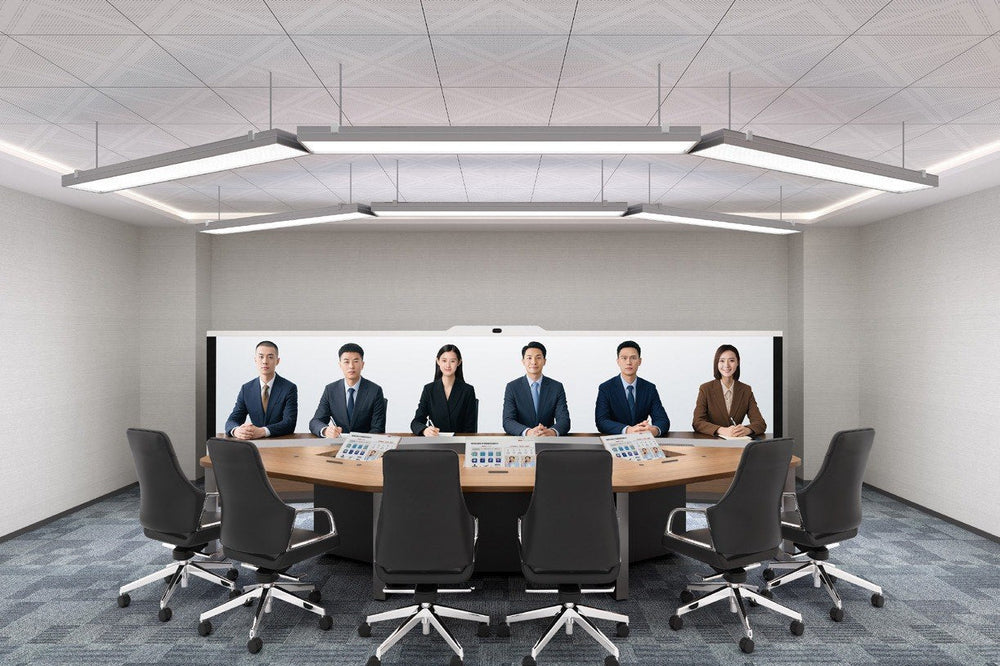

The Huawei Immersive Telepresence System TPX6206 is a high-end video conferencing solution featuring a 216-inch curved LED screen and 3-lens 4K panoramic camera. Designed for executive meetings and command centers, Smart-Boards supplies this immersive system to organizations across the GCC and Africa.
This system delivers ultra-realistic 1:1 video reproduction for high-level conferences, telemedicine, and emergency command. It integrates a 216-inch seamless curved LED display with a resolution of 5760 x 1080 and a 100° horizontal field of view panoramic fusion camera. The setup supports six participants in a single row, requiring a conference room area of at least 38 m² for optimal performance.
Audio clarity is maintained through independent desktop microphones with status indicators and high-fidelity speakers featuring sound source localisation. The system supports ITU-T H.323 and IETF SIP protocols with visible presentation and invisible audio/video watermarks for security. Smart-Boards offers live or virtual demonstrations to verify suitability for your specific infrastructure and power requirements in the region.
Key features
- Panoramic Visuals - A 216-inch curved LED screen with 5760 x 1080 resolution provides a 48:9 aspect ratio for expansive, distortion-free viewing of remote participants.
- 4K Capture - The 3-lens 12 MP panoramic fusion camera captures UHD 4K video with a 100° horizontal field of view to ensure all attendees are clearly visible.
- Immersive Audio - Independent seat microphones and high-fidelity speakers with sound localisation create multi-channel surround audio for natural conversation flow.
- Secure Protocols - Supports ITU-T H.323 and IETF SIP standards with invisible audio/video watermarks and visible presentation watermarks to protect sensitive communications.
- Touch Control - An 11-inch dedicated touchscreen controller with 1920 x 1200 resolution allows intuitive management of system settings and conference parameters.
Ideal for: Executive boardrooms, government command centers, and multi-party video conferences for buyers across the GCC and Africa requiring immersive remote collaboration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- Immersive Telepresence
- Product type
- Immersive Telepresence System
- Key features
- 216-inch curved LED screen, 3-lens 4K panoramic camera, seat microphones, sound localisation, 11-inch touch controller, AV watermarking
- Application
- Executive meetings, multi-party video conferences, remote consultation, command and dispatch
- Conference calling
- TPX6206: 6 participants (single row); TPX6218: 18 participants (dual row)
- Protocols
- ITU-T H.323, IETF SIP, H.239, BFCP; video H.265, H.264HP, H.264BP, H.263, H.263+
- Security features
- Invisible audio and video watermarks; visible presentation watermark
Display
- Resolution
- 5760 × 1080
- Screen size
- 216"
- Aspect ratio
- 48:9
- Display
- 21.5-inch tabletop display, 1920 x 1080
- Display type
- Seamless curved LED, full flip-chip COB, 5400 x 1012.5 mm
Touch
- Touchscreen
- 11-inch dedicated touch controller, 1920 x 1200
Connectivity
- Outputs
- HDMI 2.0 × 3 (4K 60 fps each)
Camera & audio
- Camera
- Panoramic fusion camera, 3 lenses, 12 MP 1/2.3-inch, 100° horizontal field of view, UHD 4K
- Speaker type
- High-fidelity speakers with sound source localisation
- Audio codecs
- AAC-LD, G.711A, G.711U, G.722, G.722.1C, G.729A, OPUS, G.719
- Microphone
- Independent desktop microphone at every seat, with status indicator
Physical & warranty
- Operating humidity
- 10% to 95% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- TPX6206: < 3072.5 W (peak); TPX6218: < 3492.5 W (peak)
- Weight
- TPX6206: 770 kg; TPX6218: 1100 kg
- Bandwidth
- H.265 1080p 30 fps: 3 x 768 kbit/s minimum; 4K 60 fps: 3 x 4 Mbit/s minimum
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum number of participants for the TPX6206?
The TPX6206 model supports six participants arranged in a single row. For larger groups, the TPX6218 variant accommodates 18 participants in a dual-row configuration.
Which countries receive delivery of this system?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners to ensure reliable delivery.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the system is delivered ready for local setup, with remote guidance available if needed.
What are the minimum bandwidth requirements?
For H.265 1080p at 30 fps, the minimum is 3 x 768 kbit/s. For 4K at 60 fps, the requirement increases to 3 x 4 Mbit/s per connection.
Does the system support standard video conferencing protocols?
Yes, it supports ITU-T H.323, IETF SIP, H.239, and BFCP protocols, along with video codecs including H.265, H.264HP, and H.264BP for interoperability.
What are the power and weight specifications?
The TPX6206 weighs 770 kg with peak power consumption under 3072.5 W. It operates on 100–240 V AC, 50/60 Hz power input for global compatibility.
How is pricing determined for this product?
Pricing is by quotation only. Smart-Boards provides quote-only pricing with education, government, bulk, and tender options to suit your organizational needs.
