The Huawei IdeaHub OPS W022 D is a Windows OPS-C slot-in PC designed for interactive flat panels. It features a 13th Gen Intel Core i7 processor, 16 GB DDR4 RAM, and 512 GB SSD. Smart-Boards supplies this module to organisations across the GCC and Africa.
This pluggable computer integrates directly into compatible displays via the OPS-C JAE 80-pin connector. Powered by a 13th Gen Intel Core i7 and Intel UHD Graphics, it handles demanding educational and corporate tasks. The system runs Windows 11 and includes Wi-Fi 6 and Bluetooth 5.3 for reliable connectivity without additional adapters.

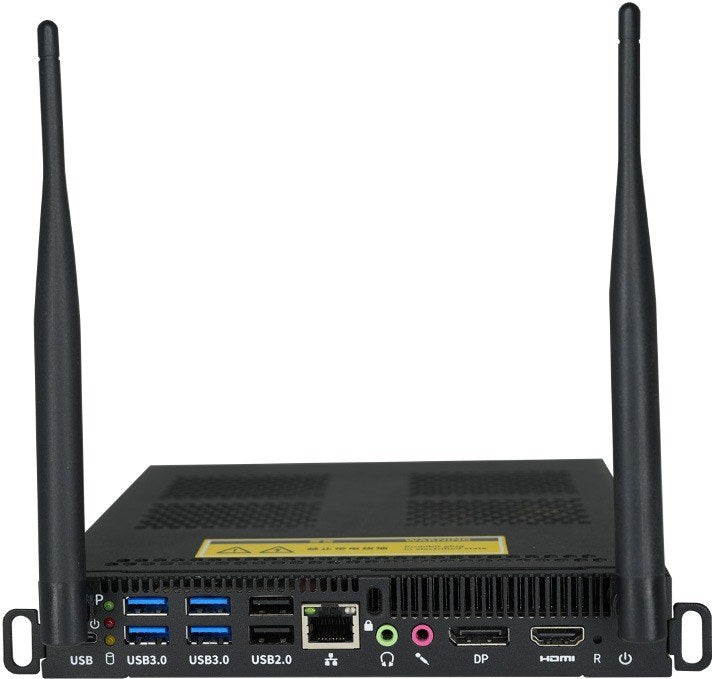

Connectivity options include four USB 3.0 ports, two USB 2.0 ports, one USB-C port, and an HDMI output supporting 4K 60 Hz video. It also provides DisplayPort, RJ45 Ethernet, and audio inputs/outputs. Designed for professional environments, it operates between 0 to 40 °C and meets international certifications including CE, RoHS, and CCC.
Key features
- Processing Power - Equipped with a 13th Gen Intel Core i7 processor and 16 GB DDR4 RAM for efficient multitasking.
- Storage Capacity - Includes a 512 GB SSD to ensure fast boot times and ample space for applications and data.
- Wireless Connectivity - Features built-in Wi-Fi 6 (802.11 ax) and Bluetooth 5.3 for stable wireless peripheral support.
- Video Output - Provides an HDMI output capable of 4K 60 Hz resolution for clear display mirroring and content sharing.
- Physical Dimensions - Compact form factor measuring 195 x 30 x 180 mm, designed for easy integration into standard OPS slots.
Ideal for schools, universities, and corporate offices requiring plug-in computing power for interactive displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- OPS W022 D
- Product type
- Windows OPS-C Slot-in PC
- Key features
- 13th Gen Intel Core i7, 16 GB DDR4, 512 GB SSD, Wi-Fi 6, Bluetooth 5.3, 4K 60 Hz HDMI, one-click backup and restore
- Form factor
- OPS-C pluggable computer
Display
- Colour
- Black
System
- Processor
- 13th Gen Intel Core i7
- Graphics
- Intel UHD Graphics (integrated)
- OPS slot
- OPS-C, JAE 80-pin connector
- Operating system
- Windows 11
- RAM
- 16 GB
- Storage
- 512 GB
- Memory type
- DDR4 (dual DIMM)
- Storage conditions
- -20 to 70 °C
Connectivity
- Bluetooth
- Bluetooth 5.3
- DisplayPort
- DP × 1
- Ethernet (RJ45)
- RJ45 × 1
- HDMI output
- HDMI Out × 1 (4K 60 Hz)
- USB-C
- 1
- USB ports
- USB 3.0 × 4, USB 2.0 × 2
- Wi-Fi
- Wi-Fi 6 (802.11 a/b/g/n/e/ac/ax), M.2 2230
- Ports
- HDMI Out × 1, DP × 1, USB 3.0 × 4, USB 2.0 × 2, USB-C × 1, RJ45 × 1, MIC IN × 1, LINE OUT × 1
Camera & audio
- Audio in
- MIC IN × 1
- Audio out
- LINE OUT × 1
Physical & warranty
- Operating humidity
- 5% to 95% RH
- Operating temperature
- 0 to 40 °C
- Dimensions
- 195 x 30 x 180 mm (W x H x D)
- Input voltage
- 19 V DC
- Certifications
- SRRC, CCC, CE, RoHS, REACH, WEEE, ERP, CB, VCCI, HDMI, BQB
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Huawei OPS W022 D include an operating system?
Yes, this module comes pre-installed with Windows 11. It allows immediate use with standard Windows applications for presentations, collaboration, and educational software without needing separate licensing or setup.
Is this product compatible with all interactive flat panels?
No, it is specifically designed for displays with an OPS-C slot and JAE 80-pin connector. You must verify your panel's slot type before purchase to ensure physical and electrical compatibility.
What are the connectivity options for peripherals?
The device offers four USB 3.0 ports, two USB 2.0 ports, and one USB-C port. It also includes an HDMI output, DisplayPort, RJ45 Ethernet, and audio input/output jacks for various peripherals.
Which countries receive delivery for this item?
We ship to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Logistics partners ensure delivery to your location, with availability confirmed on your quotation.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, we deliver the unit ready for local setup. Remote guidance is available to assist your technical team with the physical installation.
What is the power requirement for this OPS module?
The Huawei OPS W022 D requires a 19 V DC input voltage. It draws power directly from the compatible interactive flat panel's OPS slot, eliminating the need for a separate external power adapter.
Does Smart-Boards offer support for this product?
Yes, as an authorised reseller, we provide manufacturer warranty coverage plus Smart-Boards after-sales support. We also offer live or virtual demonstrations before purchase to ensure the module meets your specific needs.
