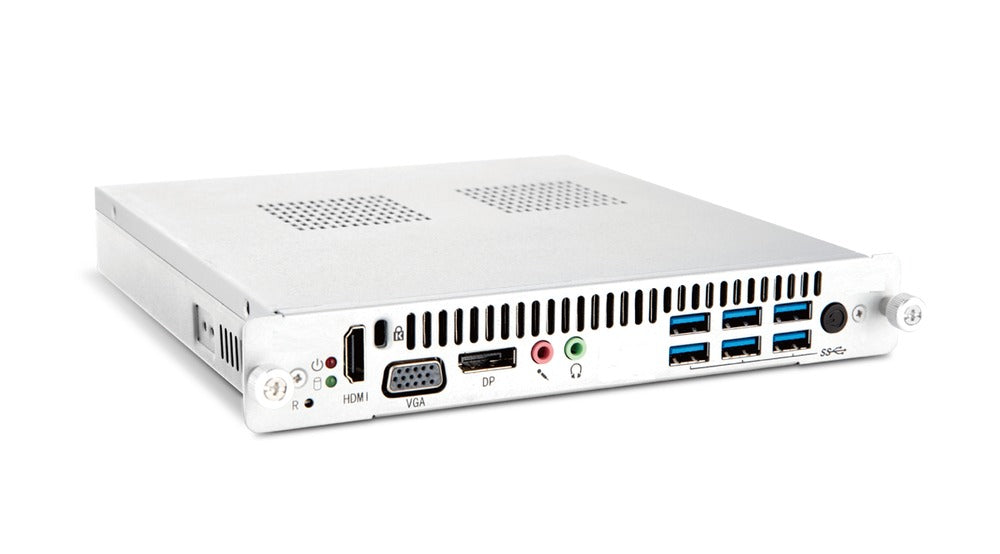

The Hisense S02ADAS5881 is a discontinued OPS on-board computer designed for slot-in integration with Hisense interactive flat panels. It utilises an Intel Coffee Lake processor, 8GB of IRAM and a 128GB SSD to deliver desktop-class performance within the display frame. Smart-Boards supplies this component across the GCC and African markets.
This OPS module integrates directly into the Hisense interactive display slot, eliminating external desktop clutter while maintaining full computing capability. Powered by an internal power supply module requiring 12V-19V DC input, it delivers up to 95W of max power with a standby consumption of just 0.5W. The dual brass and dual fan heat-removal system ensures stable operation within the specified 0°C to 40°C temperature range and 10%-90% humidity environment.
Connectivity is provided via six USB 3.0 ports, one HDMI, one DisplayPort and one VGA interface, alongside integrated high definition audio stereo. Measuring 180 x 194 x 30mm and weighing 1.24kg, the white chassis fits standard OPS slots securely. As a discontinued item, Smart-Boards can confirm current availability or recommend the latest successor model to meet your specific regional requirements.
Key features
- Processing Power - Intel Coffee Lake processor on the H310 Express chipset supports robust interactive computing tasks within the display.
- Memory Configuration - Equipped with 8GB of IRAM and a 128GB SSD for efficient operating system and application performance.
- Input/Output Ports - Provides six USB 3.0 ports, one HDMI, one DP and one VGA connector for peripheral and display connectivity.
- Thermal Management - Dual brass heat sinks and dual fans maintain operational stability in temperatures from 0°C to 40°C.
- Physical Dimensions - Compact 180 x 194 x 30mm white chassis with a net weight of 1.24kg fits standard OPS slots.
Ideal for: Schools, universities and corporate training rooms in the GCC and Africa requiring integrated computing for Hisense interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- S02ADAS5881
- Product type
- OPS On-Board Computer
- Brand
- Hisense
- Key features
- Intel Core i5 8400 CPU, Intel HD Graphics 630, 8GB RAM, 128GB SSD, 6 x USB 3.0, HDMI, DP, VGA, Dual Brass & Dual Fan cooling, Internal Power Supply
Display
- Colour
- White
System
- Processor
- Intel Core i5 (i5-8400)
- Operating system
- Windows 10
- RAM
- 8 GB
- Storage
- 128 GB
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- USB ports
- USB 3.0 × 6
Physical & warranty
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 95 W (max)
- Standby power
- 0.5 W
- Dimensions
- 180*194*30 mm
- Weight
- 1.24kg
- Shipping weight
- 1.24 kg
- Input voltage
- 12–19 V DC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this product still in production?
No, the Hisense S02ADAS5881 is discontinued. Smart-Boards can confirm current stock availability or recommend a compatible successor model from the latest Hisense range suitable for your site.
Which countries do you deliver to?
We ship to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman and Bahrain, as well as selected African nations. Logistics partners ensure delivery at the lowest possible cost, with lead times confirmed on your quotation.
Do you provide installation services?
On-site installation is available within the UAE only. For GCC and African deliveries, units arrive ready for local setup with remote guidance to assist your technical team during the configuration process.
Can I see a demo before buying?
Yes, Smart-Boards offers live or virtual demonstrations upon request. This allows you to verify the OPS module's integration and performance with your specific Hisense interactive panel model before purchase.
What is the power consumption?
The module operates on 12V-19V DC with a maximum power draw of 95W. Standby power consumption is minimal at 0.5W, making it energy efficient when the display is idle.
Does it include a warranty?
Yes, Smart-Boards provides the manufacturer warranty plus our own after-sales support for all supplies across the GCC and Africa regions, ensuring long-term reliability for your interactive display system.
