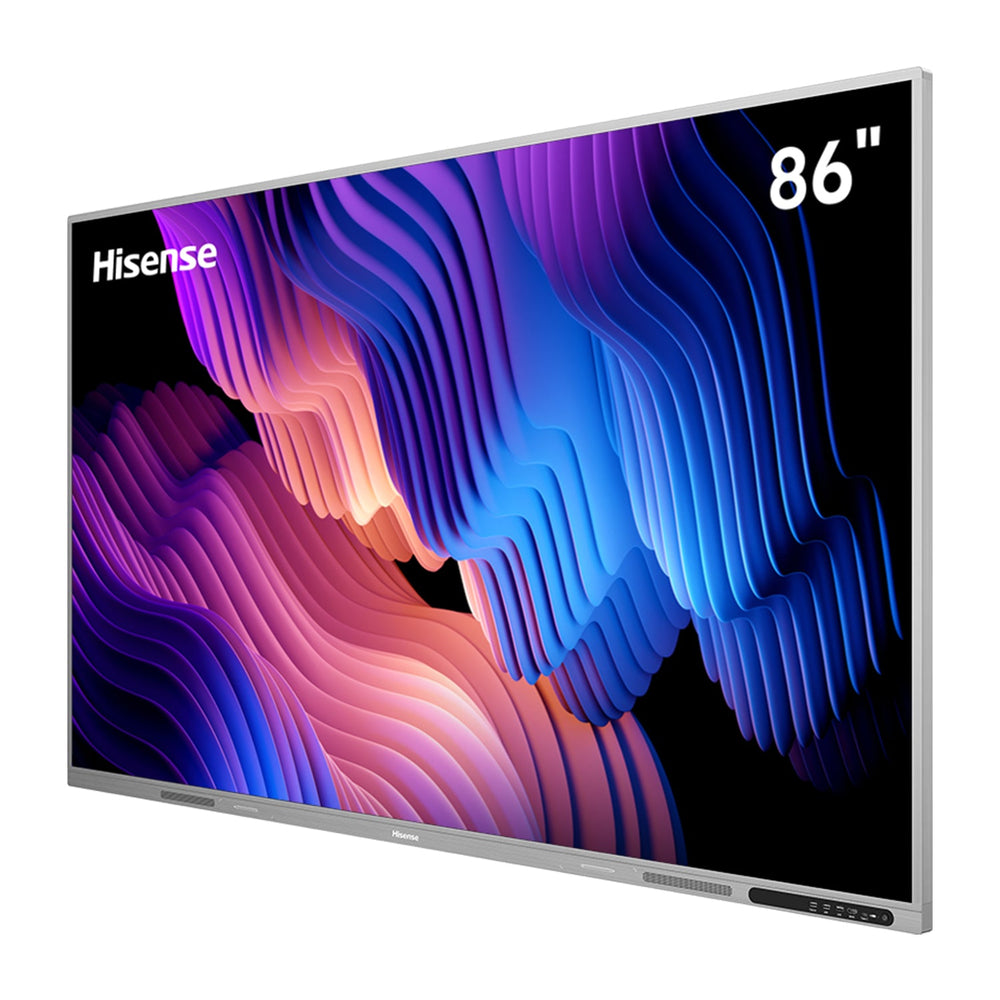

The Hisense 86X1EE is an 86-inch operating system-free interactive flat panel designed for secure, large-format collaboration in GCC and African institutions. It features 4K UHD resolution, 40-point infrared touch, and 400 nits brightness for clear classroom and boardroom visibility.
This LiteBoard model from Hisense eliminates the need for a built-in operating system, allowing organisations to connect their own computers or OPS modules for enhanced security and flexibility. The 86-inch VA panel delivers 4K UHD visuals with 400 nits brightness and a 4,000:1 contrast ratio, ensuring content remains crisp in brightly lit GCC classrooms or conference rooms. The infrared touch technology supports up to 40 simultaneous points of contact, facilitating collaborative sessions for large groups without lag.
Smart-Boards supplies this interactive display across the GCC and African regions, handling logistics from Dubai Silicon Oasis to ensure reliable delivery. While the device itself is operating system-free, it integrates smoothly with Windows and Google platforms via external modules. For sites requiring installation, the team provides on-site setup within the UAE, while international deliveries include remote guidance for local installation, ensuring the 54.5 kg unit is mounted correctly to VESA 1000 x 600 mm standards.
Key features
- Secure OS-Free Design - Operates without a built-in OS to prevent security vulnerabilities, requiring external computing modules for function.
- 4K UHD Visual Clarity - 86-inch VA panel with 3840 x 2160 resolution and 400 nits brightness for high-contrast, clear presentations.
- 40-Point Infrared Touch - Infrared touch technology allows up to 40 users to interact simultaneously with 90% accuracy.
- Integrated Audio Output - Dual 15 W and single 20 W speakers provide direct audio without external sound systems.
- Versatile Connectivity - Includes three HDMI inputs, USB-C, OPS slot, and RS-232 for flexible integration into existing AV setups.
Ideal for: This display suits schools, universities, and corporate training centres in the GCC and Africa that require secure, large-screen collaboration tools without a fixed operating system.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 86X1EE
- Product type
- Interactive Flat Panel
- Key features
- Operating system-free design, infrared touch up to 40 points, VA panel, 4,000:1 contrast, 2 x 15 W + 20 W speakers, 50,000-hour typical lifetime
Display
- Backlight
- D-LED
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-glare glass
- Viewing angle
- 178° (H) / 178° (V)
- Colour gamut
- 72% NTSC
- Contrast ratio
- 4,000:1 (typical)
- Panel technology
- VA
- Response time
- 8 ms
Touch
- Touch accuracy
- 90% (±1 mm)
- Touch points
- Up to 40
- Touch technology
- Infrared
System
- Operating system
- None
Connectivity
- Outputs
- Touch × 2, Audio Out × 1
- Ports
- HDMI In × 3, OPS × 1, USB 2.0 × 1, USB 3.0 × 1, USB-C × 1, RS-232 In × 1, Service × 1
Camera & audio
- Built-in camera
- Yes
- Camera
- None
- Speaker output
- 2 x 15 W + 20 W
Physical & warranty
- Power consumption
- 430 W (max) / 226.7 W (typical, without OPS)
- Standby power
- <0.5 W
- Dimensions
- 1954.2 x 1151.1 x 98 mm
- Weight
- 54.5 kg (net)
- VESA mount
- 1000 x 600 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CB, CE, ERP, cTUVus, CEC, FCC, UKCA, Energy Star
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Hisense 86X1EE currently available for purchase?
This model is discontinued. Our team can confirm current availability or recommend the latest Hisense successor model that meets your specifications and regional requirements.
Which countries in the GCC and Africa receive delivery?
We ship to all GCC nations including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African countries, using established logistics partners from our Dubai office.
Does the panel include an operating system?
No, the 86X1EE features an operating system-free design. You must connect a separate computer or OPS module to run Windows, Android, or Google platforms.
Can you install this display outside the UAE?
On-site installation is provided only within the UAE. For other regions, the unit is delivered ready for local setup, with remote guidance available to assist your technical team.
What are the touch capabilities of this panel?
It supports up to 40 simultaneous touch points using infrared technology, with 90% accuracy, making it suitable for large group interactions in classrooms or meeting rooms.
What power and voltage specifications does it support?
The device accepts 100–240 V AC input at 50/60 Hz, making it compatible with standard power grids across the GCC and African regions without voltage converters.
Does Smart-Boards provide after-sales support for this model?
Yes, as an authorised reseller, we offer manufacturer warranty coverage combined with Smart-Boards after-sales support to assist with any technical inquiries or maintenance needs.
