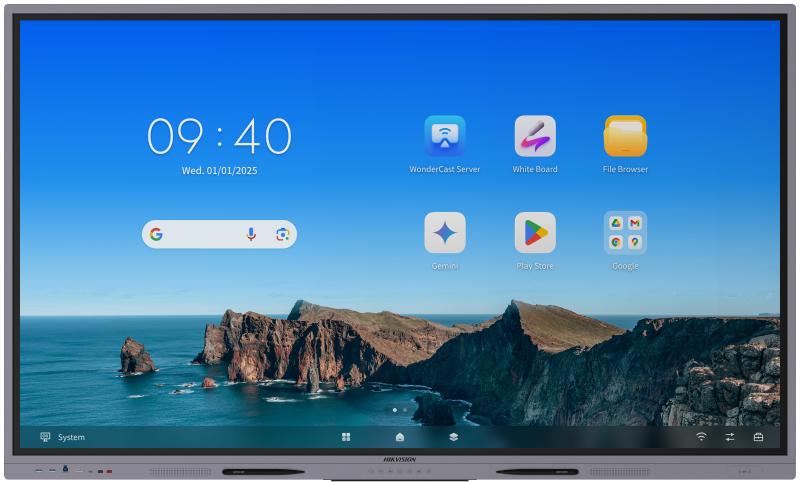

The Hikvision DS-D5A75RB/A3 is a 75-inch 4K interactive flat panel designed for modern classrooms and meeting rooms. It features 50-point multi-touch, Android 16, and EDLA certification. Smart-Boards supplies this model across the GCC and Africa with installation support in the UAE.
This 75-inch display delivers a 3840 x 2160 resolution on an IPS panel with 400 nits brightness. The Android 16 operating system includes a quad-core processor and 8 GB RAM for responsive performance. An optional OPS slot allows for Windows integration, supporting various video conferencing applications. The device includes Wi-Fi 6 and Bluetooth 5.4 for reliable connectivity.
Interaction is supported by 50-point touch with ±0.5 mm accuracy and anti-glare tempered glass. The unit weighs 41.23 kg and fits standard 600 x 400 mm VESA mounts. Built-in speakers provide 40 W of audio output. Smart-Boards offers this product to educational and corporate clients in the GCC and Africa, providing live demonstrations and tailored quotations for bulk or multi-site orders.
Key features
- 4K IPS Display - Delivers 3840 x 2160 resolution with 178-degree viewing angles and 400 nits brightness.
- 50-Point Touch - Enables simultaneous multi-user interaction with ≤ 5 ms response time and ±0.5 mm accuracy.
- Android 16 System - Runs on Android 16 with EDLA certification, featuring 8 GB RAM and 128 GB storage.
- Dual System Ready - Includes an optional OPS slot for Windows, allowing flexible software deployment for conferencing.
- Connectivity Suite - Features Wi-Fi 6, Bluetooth 5.4, NFC, HDMI 2.1, USB-C, and built-in network switch capabilities.
- Installation Support - Comes with a wall mount bracket and hook, with on-site installation available within the UAE.
Ideal for classrooms, boardrooms, and training centres requiring reliable interactive displays, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DS-D5A75RB/A3
- Product type
- Interactive Flat Panel
- Key features
- UHD 4K, IPS panel, 50-point touch, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, NFC card reader, EDLA certified
Display
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 10 bit (8 bit + FRC)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- 9H pencil hardness, anti-glare tempered glass, 25% haze
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,200:1 static (15,000:1 dynamic)
- Panel technology
- IPS
- Response time
- 5 ms
Touch
- Touch accuracy
- ±0.5 mm
- Touch points
- 50-point multi-touch
- Touch response time
- ≤ 5 ms
System
- Processor
- Quad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
- OPS slot
- Optional OPS module (195 x 30 x 180 mm) for Windows
- Operating system
- Android 16
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Ethernet (RJ45)
- 2 × LAN (1000 Mbps)
- Serial port
- RS232 × 1
- Touch USB ports
- TOUCH-USB 2.0 × 2 (front and rear)
- USB-C
- Type-C × 1 (front, USB 3.0, 15 W charging)
- USB ports
- USB 3.0 × 2 (front), USB 2.0 × 2 (rear)
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
- Ports
- HDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
- Connectivity options
- Wi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Camera & audio
- Speaker output
- 2 × 20 W
Physical & warranty
- Mounting type
- Wall mount
- In the box
- Wall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 189 W (average)
- Standby power
- ≤ 0.5 W
- Dimensions
- 1710 x 1017 x 96 mm
- Weight
- 41.23 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- EDLA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this model EDLA certified?
Yes, the Hikvision DS-D5A75RB/A3 is EDLA certified, ensuring compatibility with Google Play services and standard Android applications for educational and enterprise use.
Can the Android system be replaced with Windows?
The unit runs Android 16 by default but includes an optional OPS slot. You can insert a Windows OPS module to run Windows-based video conferencing or presentation software.
What is the touch technology used?
It uses infrared touch technology supporting 50 simultaneous points with a response time of ≤ 5 ms and an accuracy of ±0.5 mm for precise writing and navigation.
Which countries in the GCC and Africa receive delivery?
We ship to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners, ensuring cost-effective delivery to your location.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance available if needed.
Does the panel include a built-in network switch?
Yes, the device has a built-in network switch chip, which eliminates the need for an external switch and simplifies connectivity for classroom or office environments.
What is included in the box?
The package contains the display, wall mount bracket, hook, power cable, remote control, touch pen, user manual, and packing list for straightforward initial setup.
