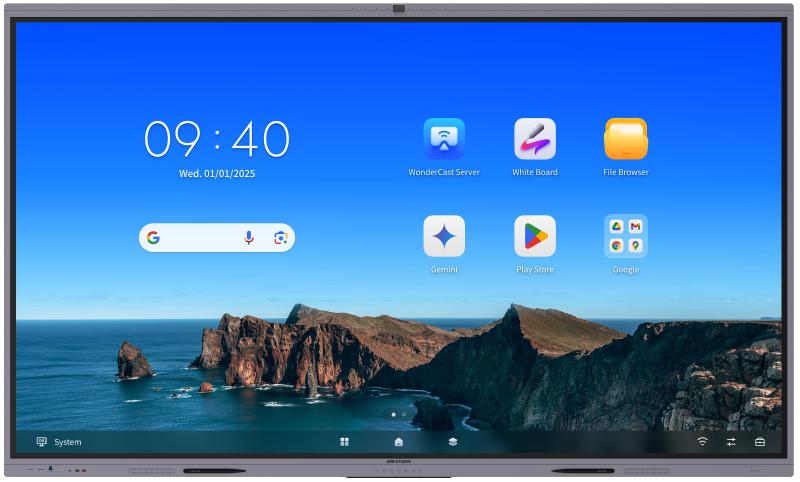

The Hikvision DS-D5A75RB/B3 is a 75-inch 4K interactive flat panel featuring a 50-point touch surface, Android 16 OS, and integrated 4K camera. Smart-Boards supplies this EDLA-certified display for educational and corporate clients across the GCC and Africa.
This 75-inch UHD display combines high brightness with an anti-glare tempered glass surface for clear visibility in well-lit GCC classrooms and conference rooms. The IPS panel delivers 1,200:1 static contrast and 72% NTSC color gamut, while the integrated 8-array microphone array with noise cancellation ensures reliable audio for hybrid meetings. Built-in Wi-Fi 6 and dual LAN ports provide robust connectivity for multi-site deployments.
Running on Android 16 with EDLA certification, the system supports seamless wireless presentation and touch control up to 50 points with ±0.5 mm accuracy. An optional OPS slot allows for Windows integration, bridging the gap between interactive teaching and professional video conferencing. The all-in-one design reduces cabling complexity, making it suitable for schools and ministries managing rollouts across multiple African and Middle Eastern sites.
Key features
- 4K UHD Display - The screen offers 3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles for clear content visibility.
- 50-Point Touch - Multi-touch technology responds in under 5 ms with ±0.5 mm accuracy for smooth writing and interaction on the anti-blocking glass.
- Integrated Camera - A built-in 48 MP photo sensor and 8 MP video camera with a 93.4-degree field of view enable direct video conferencing capabilities.
- Android 16 System - The device runs on Android 16 with EDLA certification, providing a familiar interface and access to Google services for education.
- Dual Connectivity - Wi-Fi 6 (802.11ax) and dual 1000 Mbps LAN ports ensure stable network performance for cloud-based applications and streaming.
- Audio Capabilities - An 8-array microphone with echo reduction and 2x20 W speakers provide clear audio pickup and playback for collaborative sessions.
Ideal for interactive classrooms, corporate boardrooms, and government training centers requiring reliable 4K collaboration tools across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DS-D5A75RB/B3
- Product type
- Interactive Flat Panel
- Key features
- UHD 4K, IPS panel, built-in 4K camera, 8-array microphone, 50-point touch, Android 16 with optional Windows OPS, built-in network switch, multi-button front panel, EDLA certified
Display
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 10 bit (8 bit + FRC)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Surface protection
- 9H pencil hardness, anti-glare tempered glass, 25% haze
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,200:1 static (15,000:1 dynamic)
- Panel technology
- IPS
- Response time
- 5 ms
Touch
- Touch accuracy
- ±0.5 mm
- Touch points
- 50-point multi-touch
- Touch response time
- ≤ 5 ms
System
- Processor
- Quad-core Cortex-A72 @ 2.2 GHz + quad-core Cortex-A53 @ 1.8 GHz
- OPS slot
- Optional OPS module (195 x 30 x 180 mm) for Windows
- Operating system
- Android 16
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Ethernet (RJ45)
- 2 × LAN (1000 Mbps)
- Serial port
- RS232 × 1
- Touch USB ports
- TOUCH-USB 2.0 × 2 (front and rear)
- USB-C
- Type-C × 1 (front, USB 3.0, 15 W charging)
- USB ports
- USB 3.0 × 2 (front), USB 2.0 × 2 (rear)
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4 GHz / 5 GHz, 2 × 2 MIMO
- Ports
- HDMI 2.1 In × 3 (one front, two rear), Audio In × 1, Audio Out × 1, TF card slot × 1
- Connectivity options
- Wi-Fi 6, Bluetooth 5.4, 13.56 MHz NFC card reader
Camera & audio
- Built-in camera
- Yes
- Camera
- 48 MP photo sensor, 8 MP video up to 4K, 93.4° diagonal field of view
- Speaker output
- 2 × 20 W
- Microphone
- Omni-directional 8-array, 12 m voice distance, echo reduction and noise cancellation
Physical & warranty
- Mounting type
- Wall mount
- In the box
- Wall mount bracket, hook, user manual, touch pen, packing list, power cable, remote control
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 189 W (average)
- Standby power
- ≤ 0.5 W
- Dimensions
- 1710 x 1035 x 96 mm
- Weight
- 41.88 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- EDLA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Hikvision DS-D5A75RB/B3 support Windows?
Yes, it includes an optional OPS slot compatible with 195 x 30 x 180 mm Windows modules. This allows users to run video conferencing software on Windows while retaining the Android system for interactive features.
Can this display be delivered to KSA and Qatar?
Yes, Smart-Boards ships to all GCC countries including Saudi Arabia and Qatar via established logistics partners. Delivery times depend on the order size and are confirmed during the quotation process.
Is on-site installation included for African deliveries?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available from our Dubai office to assist your technical team.
What is the warranty coverage for this model?
The product comes with a manufacturer warranty plus Smart-Boards after-sales support. We can confirm specific warranty lengths and terms in your official quotation based on your region.
How many touch points does the screen support?
The display supports up to 50 simultaneous touch points with a response time of 5 ms or less, ensuring smooth collaboration for multiple users in educational or meeting environments.
Does it have built-in video conferencing hardware?
Yes, it features a built-in 8 MP camera and an 8-array microphone system with noise cancellation, reducing the need for external peripherals in standard meeting rooms.
Is the pricing fixed or by quotation?
Pricing is by quotation only. We offer education, government, and bulk tender options to ensure competitive rates for multi-site deployments across the GCC and Africa.
