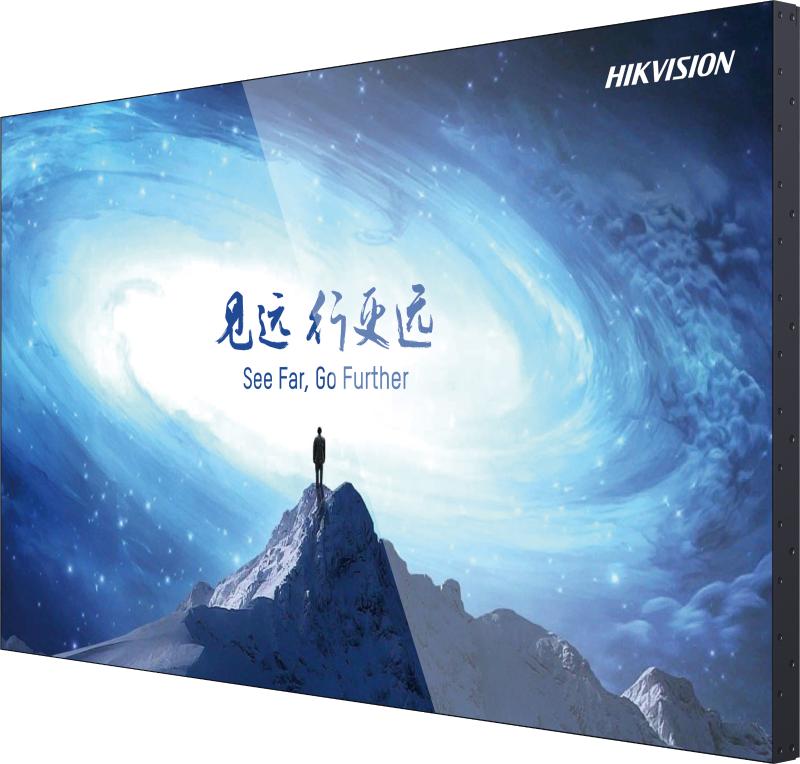

The Hikvision DS-D2055LR-G is a 55-inch LCD display unit designed for video wall applications. Featuring a 0.88mm extreme-narrow bezel and 500 cd/m² brightness, it supports stable 24-hour operation. Smart-Boards supplies this model for multi-site deployments across the GCC and Africa.
This 55-inch panel utilizes a direct-lit LED backlight to deliver uniform brightness without boundary shadows. The screen offers a 1920 × 1080 resolution at 60 Hz with a 178° horizontal and vertical viewing angle. Factory calibration ensures consistent color and brightness across the array. The metal casing provides protection against electromagnetic interference, ensuring reliable performance in continuous monitoring environments.
Connectivity includes one each of VGA, HDMI, DVI, and DisplayPort inputs, alongside USB and RS232 control interfaces. The unit supports 4K signal input and can auto-loop up to 30 screens via HDMI. Weighing 20.8 kg, it fits standard VESA 600 × 400 mm mountings. Smart-Boards, based in Dubai, facilitates logistics to GCC nations and African countries, offering live demonstrations and quote-only pricing for government and corporate buyers.
Key features
- Narrow Bezel Design - Features 0.88mm bezels (0.44mm top/left, 0.44mm bottom/right) for minimal visual interruption.
- Bright LED Backlight - Direct-lit LED provides 500 cd/m² brightness with 1100:1 contrast and 72% NTSC color gamut.
- Versatile Connectivity - Includes VGA, HDMI, DVI, DP, and USB inputs, plus RS232 IN/OUT for system control.
- Continuous Operation - Designed for stable 24-hour working with a wide operating temperature range of 0°C to 40°C.
- Image Calibration - Factory calibration ensures color and brightness uniformity across all panels in a video wall.
Ideal for security control rooms, corporate boardrooms, and digital signage networks requiring reliable multi-panel displays for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DS-D2055LR-G
- Key features
- Extreme narrow bezel, 4K signal input, factory calibration, anti-glare, high brightness, high color gamut, 24-hour continuous working, metal casing, wall-mount and modular brackets
Display
- Backlight
- Direct LED
- Brightness
- 500 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 55"
- Surface protection
- Anti-glare, 3H hardness, 28% haze
- Viewing angle
- 178° (H) / 178° (V)
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,100:1
- Response time
- 8 ms
System
- Operating hours
- 24/7
Connectivity
- DisplayPort
- DisplayPort × 1
- HDMI input
- HDMI In × 1
- HDMI output
- HDMI Out × 1
- Serial port
- RS-232 in × 1, RS-232 out × 1
- USB ports
- USB × 1
- VGA input
- VGA × 1
Camera & audio
- Audio out
- Line out
Physical & warranty
- In the box
- LCD display × 1, Power cable × 1, Network cable × 1, 2-meter HDMI cable × 1, Screw × 4, Remote control × 1, IR receiver × 1, RS-232 converter × 1, Quick start guide (multilingual) × 1, Quick start guide (English) × 1
- Operating humidity
- 10% to 80% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- ≤ 245 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 1210.81 x 681.76 x 68.9 mm
- Weight
- 20.8 kg
- Shipping dimensions
- 1404 x 910 x 231 mm
- VESA mount
- 600 x 400 mm
- Bezel size
- 0.88 mm (panel-to-panel gap)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the bezel width of the Hikvision DS-D2055LR-G?
The bezel width is 0.88mm total. Specifically, it measures 0.44mm on the top and left edges, and 0.44mm on the bottom and right edges.
Can this display be used in a video wall configuration?
Yes. It supports 4K signal input and can auto-loop up to 30 screens using HDMI interfaces for seamless video wall setups.
Which countries receive delivery from Smart-Boards?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Is installation included outside the UAE?
No. On-site installation is only available within the UAE. Deliveries to other regions are ready for local setup, with remote guidance provided if needed.
What is the power consumption of this unit?
The unit consumes ≤ 245 W during operation and ≤ 0.5 W in standby mode, supporting 100-240 VAC power input.
Does it include a remote control?
Yes, the package includes one remote control, an IR receiver, and an RS-232 converter for easy operation and integration.
What is the net weight of a single display?
The net weight is 20.8 ± 0.5 kg for a single display unit. The gross weight with packaging is 39.2 ± 0.5 kg.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
