The Hikvision DS-D2046TL-2B is a 46-inch Full HD video wall display designed for 24/7 continuous operation in surveillance and control environments. Featuring a 2.5mm ultra-narrow bezel, 500 nits brightness, and factory calibration, it ensures uniform image quality. Smart-Boards supplies this unit to organizations across the GCC and Africa.
This 46-inch display utilises VA panel technology to deliver a 1920 x 1080 resolution with a 1,200:1 contrast ratio and 178-degree viewing angles. The direct-lit LED backlight provides 500 nits of brightness, supported by anti-glare surface protection with 25% haze. Its metal casing offers stability against electromagnetic interference, while the ultra-narrow 2.5mm bezel minimizes visual disruption in multi-panel arrays.
The DS-D2046TL-2B supports 4K signal input with automatic loop output to up to 30 screens via HDMI interfaces. It includes three dedicated picture modes for Monitoring, Meeting, and Movie applications, ensuring optimal settings for different operational needs. Factory calibration guarantees color and brightness uniformity across the entire video wall, making it suitable for critical visual monitoring tasks.
Key features
- Ultra-Narrow Bezel - Features a 2.5 mm bezel size to create a near-seamless visual surface for multi-screen configurations.
- 24/7 Continuous Operation - Built with a metal casing and stable components for reliable 24-hour continuous working in demanding environments.
- Signal Loop Capability - Supports 4K signal input with automatic loop output to HDMI interfaces for displays up to 30 screens.
- Uniform Brightness - Uses direct-lit LED backlighting and factory calibration to ensure consistent brightness and color across the video wall.
- Flexible Connectivity - Includes VGA, HDMI In/Out, DVI, DisplayPort, and RS232 ports for versatile system integration and control.
Ideal for: Surveillance centers, control rooms, and corporate lobbies requiring reliable video wall solutions for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DS-D2046TL-2B
- Product type
- Video Wall Display
- Key features
- 4K signal input with auto loop up to 30 screens, three picture modes, factory calibration, direct-lit LED backlight, 2.5 mm bezel, metal casing
- Body construction
- Metal casing
- Controls
- IR remote control, RS232 control
- Duty cycle
- 24-hour continuous operation
Display
- Backlight
- Direct-lit LED
- Brightness
- 500 cd/m²
- Colour depth
- 8-bit (16.7 M colours)
- Resolution
- Full HD
- Screen size
- 46"
- Surface protection
- Anti-glare, 25% haze
- Viewing angle
- 178° horizontal, 178° vertical
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1,200:1
- Panel technology
- VA
- Response time
- 8.5 ms
System
- Storage conditions
- -20 to 60 °C, 10% to 90% RH (non-condensing)
Connectivity
- Serial port
- RS232 In × 1, RS232 Out × 1
- Ports
- VGA × 1, HDMI In × 1, DVI × 1, DisplayPort × 1, USB × 1, HDMI Out × 1
Physical & warranty
- Mounting type
- Wall mount and modular brackets available
- In the box
- LCD display × 1, power cable × 1, network cable × 1, 2 m HDMI cable × 1, screws × 4, remote control × 1, IR receiver × 1, quick start guides × 2, LCD maintenance notice × 1
- Operating humidity
- 20% to 80% RH (non-condensing)
- Operating temperature
- 0 to 40 °C
- Power consumption
- 200 W (maximum)
- Standby power
- 0.5 W (maximum)

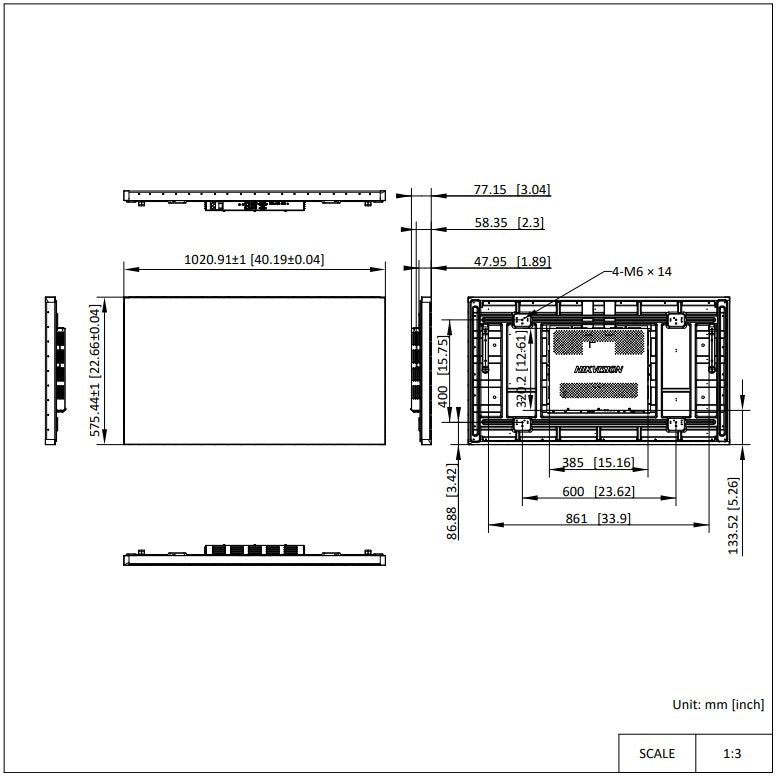

- Dimensions
- 1020.91 x 575.44 x 47.95 mm
- Weight
- 10.5 kg
- Shipping dimensions
- 1159 x 725 x 310 mm
- VESA mount
- 600 x 400 mm
- Shipping weight
- 15.0 kg
- Bezel size
- 2.5 mm
- Colour temperature
- 10,000 K ± 1,000 K
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the maximum number of screens this display can loop?
It supports automatic loop output to up to 30 screens via HDMI interfaces, allowing for extensive video wall configurations.
Does this model support 24-hour continuous operation?
Yes, the DS-D2046TL-2B is designed for stable 24-hour continuous working, making it suitable for critical monitoring environments.
Can I install this display outside the UAE?
On-site installation is available within the UAE only. For other countries, we deliver the units ready for local setup, with remote guidance if needed.
Which countries receive delivery from Smart-Boards?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at competitive costs.
What mounting options are available for this video wall?
The display supports wall mounting and modular brackets, with VESA 600 x 400 mm compatibility for various installation requirements.
Is color uniformity guaranteed across multiple units?
Yes, the unit undergoes factory calibration for color and brightness uniformity to ensure consistent image quality across the entire video wall.
What picture modes are included for different uses?
It offers three picture modes: Monitoring, Meeting, and Movie, allowing users to switch between optimized settings for different operational needs.
