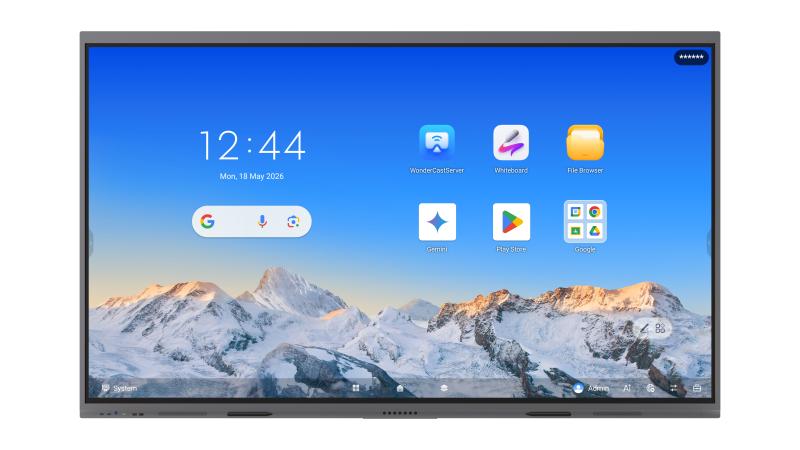

The Hikvision DS-D5C98RB/A2L is a 98-inch 4K UHD interactive flat panel designed for large educational and corporate environments in the GCC and Africa. This model features 50-point multi-touch, Android 16, and built-in networking, supplied by Smart-Boards from Dubai.
This 98-inch interactive display delivers 4K UHD resolution (3840 × 2160) with 600 nits brightness and a 178° viewing angle. The screen uses anti-glare and anti-fingerprint glass with 9H pencil hardness, ensuring clarity in bright GCC classrooms. It runs Android 16 with an optional Windows OPS slot, supporting video conferencing software on the Windows system for versatile hybrid learning or meeting setups.
Connectivity includes three HDMI 2.1 inputs, two full-function USB Type-C ports with 100W charging, and a built-in network switch. The unit weighs 99.6 kg and requires a VESA 1000 x 400 mm mount. Smart-Boards ships this product to GCC and African countries through established logistics partners. On-site installation is available within the UAE only.
Key features
- 4K Touch Display - Features a 98-inch 4K UHD screen with 50-point multi-touch accuracy of ±0.5 mm and 2 ms response time.
- Android 16 System - Runs Android 16 with 8 GB RAM and 128 GB storage, plus an optional OPS slot for Windows integration.
- Built-in Networking - Includes a built-in network switch chip to eliminate external switch needs and supports dual Gigabit LAN ports.
- Comprehensive Ports - Equipped with 3x HDMI 2.1, 2x USB-C (100W PD), 4x USB 3.0, and RS232 for flexible device connectivity.
- Sensors & Audio - Monitors light, humidity, and temperature internally, with dual 20W + 25W speakers for clear audio output.
- Included Accessories - Package contains a wall mount bracket, hook, touch pen, 3m USB and HDMI cables, power cable, remote, and cleaning cloth.
Ideal for large lecture halls, boardrooms, and training centers requiring high visibility and multi-device interaction, suited for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DS-D5C98RB/A2L
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 50-point multi-touch, Android 16 with optional Windows OPS, built-in whiteboard, WonderCast casting for up to 9 devices, built-in network switch, AI Assistant and AI Notes
- Duty cycle
- 7 x 16 hours
- Protocols
- HDCP 2.3, 2.0, 1.4; HDMI CEC
Display
- Backlight
- DLED
- Brightness
- 600 cd/m²
- Colour depth
- 10 bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 98"
- Surface protection
- 9H pencil hardness, 7 Mohs; anti-glare and anti-fingerprint glass, 25% haze
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC (typical)
- Response time
- 5 ms
Touch
- Touch accuracy
- ±0.5 mm
- Touch points
- 50-point multi-touch
- Touch resolution
- 32768 x 32768
- Touch response time
- 2 ms or less
System
- Processor
- Quad-core Cortex-A76 at 2.4 GHz and quad-core Cortex-A55 at 1.8 GHz; Mali-G610 MC4 GPU
- OPS slot
- Optional OPS (195 x 30 x 180 mm)
- Operating system
- Android 16
- RAM
- 8 GB (16 GB optional)
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4 (BLE)
- Ethernet (RJ45)
- LAN (1000 Mbps) × 2
- HDMI input
- HDMI 2.1 × 3 (front × 1, rear × 2)
- HDMI output
- HDMI 2.1 × 1
- Serial port
- RS232 × 1
- Touch USB ports
- TOUCH-USB 3.0 × 1 (front), TOUCH-USB 2.0 × 2 (rear)
- USB-C
- Type-C × 2 (DP 1.2 input, 100 W charging)
- USB ports
- USB 3.0 × 4, USB 2.0 × 1
- VGA input
- VGA × 1
- Connectivity options
- Wi-Fi 6 (2 x 2 MIMO), Bluetooth 5.4, NFC card reader (13.56 MHz)
Camera & audio
- Audio in
- Audio × 1
- Audio out
- Audio × 1, SPDIF × 1
- Speaker output
- 2 x 20 W + 25 W
Physical & warranty
- In the box
- Wall mount bracket, hook, user manual, touch pen, 3 m touch USB cable, 3.5 m HDMI cable, 3 m power cable, remote control, cleaning cloth
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- Under 325 W (average)
- Standby power
- 0.5 W or less
- Dimensions
- 2219.8 x 1341.35 x 104.61 mm (without wall attachment)
- Weight
- 99.6 kg (net)
- VESA mount
- 1000 x 400 mm (4 × M8, 20 mm)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, CB, LOA, EDLA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the touch accuracy of this display?
The display offers 50-point multi-touch with an accuracy of ±0.5 mm and a touch response time of 2 ms or less, ensuring precise writing and interaction.
Can this model run Windows?
Yes, it supports a dual-system setup. An optional OPS module (195 x 30 x 180 mm) can be inserted to run Windows, which is recommended for video conferencing software.
Which countries can it be delivered to?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners. Delivery times depend on the country and order size.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What certifications does it hold?
The Hikvision DS-D5C98RB/A2L holds CE, CB, LOA, and EDLA certifications, ensuring compliance with educational licensing standards in supported regions.
Does it have built-in wireless casting?
Yes, it includes WonderCast casting capability, allowing up to 9 devices to cast content simultaneously to the display.
What accessories are included in the box?
The package includes a wall mount bracket, hook, touch pen, 3m touch USB cable, 3.5m HDMI cable, 3m power cable, remote control, and cleaning cloth.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
