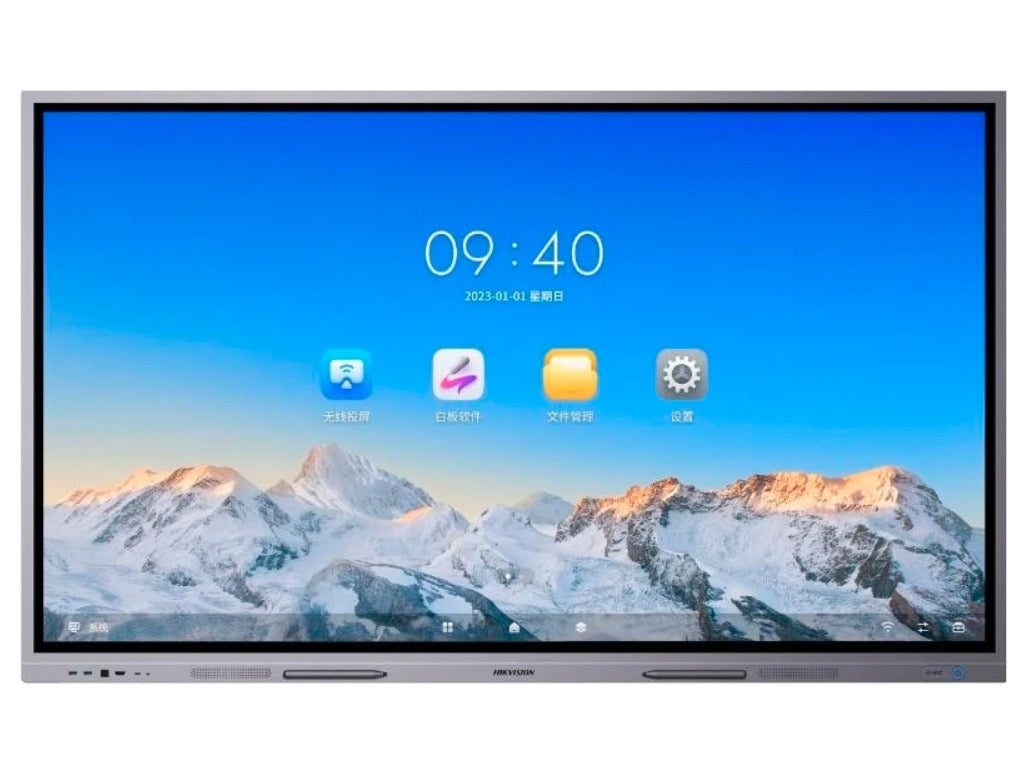

The Hikvision DS-D5C86RB/B2L is an 86-inch interactive flat panel designed for collaborative environments in the GCC and Africa. Featuring a 4K UHD screen, built-in Android 16.0, and a 4MP camera, it supports multi-site AV deployments with local setup guidance.
This 86-inch interactive display combines a 4K UHD screen with a durable anti-glare surface for clear visibility in bright classrooms or meeting rooms. The built-in Android 16.0 operating system allows for immediate use, while dual USB-C ports enable direct connection to external PCs with up to 100W power delivery. The integrated 4MP camera and 8-microphone array facilitate hybrid meetings, with AI features for noise cancellation and echo reduction ensuring clear audio over distances up to 12 metres.
Smart-Boards supplies this unit to educational and government institutions across the GCC and Africa. The device includes a network switch chip to simplify connectivity without external hardware. Delivery is ready for local setup in most countries, with on-site installation available within the UAE. We provide live demonstrations and quotation-only pricing tailored for bulk or tender requirements.
Key features
- 4K UHD Display - The screen offers a resolution of 3840 × 2160 at 60 Hz with 480 cd/m² brightness for clear visual content.
- 50-Point Touch - Multi-touch technology supports up to 50 simultaneous points with ±0.5 mm precision for collaborative work.
- Integrated Camera & Mic - A 4MP camera and 8-array microphone system provide video conferencing capabilities with AI noise reduction.
- Dual USB-C Ports - Two Type-C ports support DisplayPort 1.2 input and up to 100W power delivery for connected devices.
- Built-in Sensors - Ambient light, humidity, and temperature sensors monitor the environment to optimize display performance.
Ideal for: Schools, universities, and government ministries in the GCC and Africa requiring reliable interactive displays for education and video conferencing.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- 3 M touch USB cable, 3.5 M HDMI cable (2.0), 3 M power cable
- Key features
- NFC card reader, Sensors: Ambient light, Humidity, Temperature
Display
- Backlight
- DLED
- Brightness
- 480 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- Anti-Glare Smooth Glass
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 5,000:1
- Panel technology
- VA
- Response time
- 5 ms
Touch
- Touch accuracy
- ± 0.5 mm
- Touch points
- 50 Points Multi Touch
- Touch resolution
- 32768 × 32768
- Touch response time
- 2 ms
- Touch technology
- Infrared
System
- Ambient light sensor
- Yes
- Processor
- ARM 4x Cortex-A76 + 4x Cortex-A55, 2.4 GHz + 1.8 GHz
- Graphics
- Mali-G610 MC4
- OPS slot
- Optional
- Operating system
- Android 16
- RAM
- 8 GB
- Sensors
- Light, Humidity, Temperature
- Storage
- 128 GB
- Operating hours
- 16/7
Connectivity
- Bluetooth
- Bluetooth 5.4
- Ethernet (RJ45)
- Gigabit LAN (RJ45) × 2
- HDMI input
- HDMI In (HDMI 2.1) × 3
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- Touch-USB 3.0 × 1, Touch-USB 2.0 × 2
- USB-C functions
- Supports USB 2.0, 100W Charging, DP IN 1.2
- USB-C
- USB-C × 2 (USB 2.0, DP 1.2 in, 100 W charging)
- USB ports
- USB 3.0 × 4, USB 2.0 × 1
- VGA input
- VGA × 1 (Rear)
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5 GHz
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- 48 MP
- Speaker output
- 2 × 20 W + 25 W
- Speaker type
- Built-in Speakers
- Microphone
- 8-mic array, 12 m pickup range
- Pickup range
- 12 m
Physical & warranty
- In the box
- Wall mount bracket, hook, user manual, touch writing pen, packing list, remote control, screen cleaning cloth
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 °C - 40 °C
- Power consumption
- < 274 W
- Standby power
- 0.5 W
- Dimensions
- 1960.4 × 1158.2 × 82.5 mm
- Weight
- 58.5 ± 0.5 kg
- Shipping dimensions
- 2157 × 1345 × 223 mm
- VESA mount
- 800 × 600 mm (VESA)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Hikvision DS-D5C86RB/B2L support Windows?
Yes. The unit runs Android 16.0 natively. Windows functionality is available via an optional OPS module (195×30×180mm) that inserts into the rear slot.
Can this interactive panel be delivered to KSA and Qatar?
Yes. Smart-Boards ships to all GCC countries including KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations, through established logistics partners.
Is on-site installation included for GCC countries?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup with remote guidance available if needed.
What is the touch technology specification?
The display supports up to 50-point multi-touch with a response time of ≤ 2 ms. The touch resolution is 32768 × 32768 with ±0.5 mm precision.
Does the device include a network switch?
Yes. It features a built-in network switch chip with dual 1000 Mbps LAN ports, eliminating the need for external networking hardware for basic connectivity.
What are the standard accessories included?
The package includes a wall mount bracket, hook, user manual, touch writing pen, 3.5 m HDMI cable, power cable, remote control, and a screen cleaning cloth.
What AI features are available?
The device includes AI Assistant, AI Identify, and AI Notes. AI Notes is free for a 1-year validity period with 6,000 minutes of usage.
