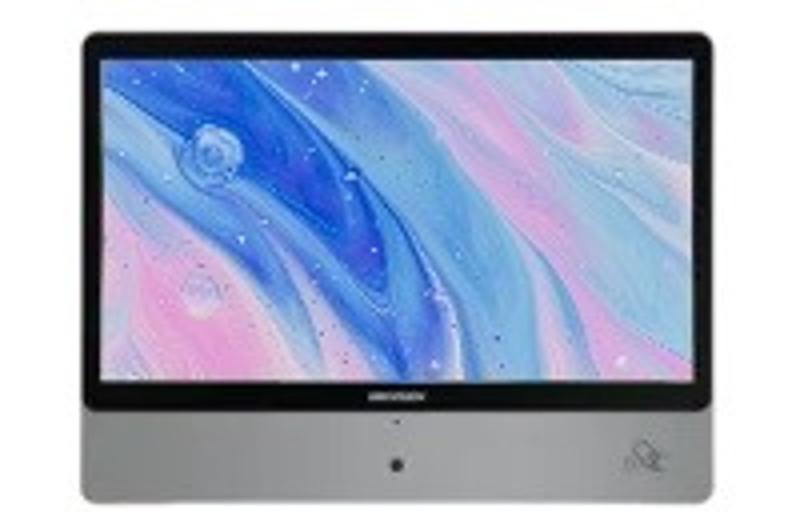

The Hikvision DS-D5F22CB/BH is a 21.5-inch interactive scheduling panel for room booking and access control. It features 10-point multi-touch, a 2MP WDR camera, and built-in RFID reader. Smart-Boards supplies this device to organisations across the GCC and Africa.

This 21.5-inch full HD panel manages room reservations and visitor access through a single interface. The 10-point capacitive touch screen responds in 8 milliseconds, supporting efficient scheduling workflows. The 27mm anti-glare toughened glass ensures visibility in bright conference rooms. Built-in Wi-Fi and Ethernet ports allow flexible network integration for various site layouts.

Integrated hardware simplifies building security and attendance tracking. The 13.56MHz RFID module reads standard Type A and B cards for entry control. A 2MP WDR camera and face comparison algorithm support recognition for up to ten individuals. The device links to door locks via Wiegand protocol, enabling automated access management. It operates on 24VDC power with IPX3 water resistance.

Key features

• Interactive Display - 21.5-inch 1920x1080 screen with 10-point PCAP touch and 8ms response time.
• Access Control - Built-in 13.56MHz RFID reader and Wiegand protocol support for door lock integration.
• Visual Recognition - 2MP WDR camera with face comparison algorithm for up to 10 users.
• Environmental Adaptation - Light sensor adjusts brightness automatically; anti-glare glass and IPX3 rating.
• Connectivity - Built-in Wi-Fi, Bluetooth 4.0, 1x LAN, and 2x USB 2.0 ports.
• Secure Mounting - Wall-mountable design with included screw kit and L-type spanner.

Ideal for: Schools, universities, and corporate offices in the GCC and Africa requiring integrated room booking and visitor access management.
