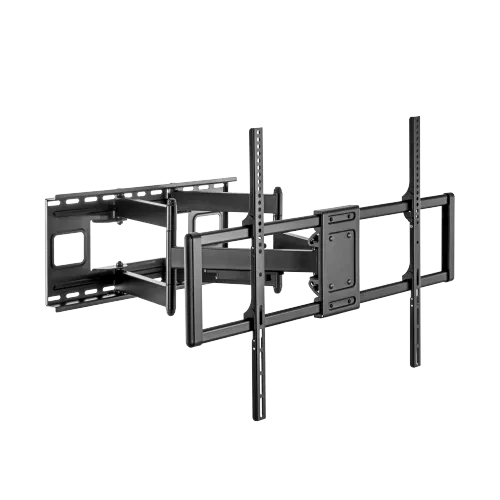

VSYS VS02D-696 Heavy-Duty Full-Motion Wall Mount for 60"–120" Displays, 120 kg. The articulating arm you specify when the panel is too big for anything else.
Above about 85", most full-motion arms stop being an option: the VESA pattern is too wide, the load is too high, or the arm cannot reach far enough to clear the wall recess the display sits in. The VSYS VS02D-696 is built for that end of the market - 60" to 120" panels weighing up to 120 kg, VESA out to 900x600 mm, and 703 mm of reach. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
The arm is powder-coated steel, strength tested to three times its rated load, and moves through tilt of plus 5 to minus 15 degrees on a free-tilting head, swivel of 60 degrees each way and a plus 5 to minus 5 degree levelling correction. A quick-release latch locks the display onto the arm and releases it again for servicing without touching the wall plate - the difference between a ten-minute panel swap and a full de-install. The plate spans two studs at 406, 450 or 600 mm centres, or bolts to concrete.
Key features
- 120 kg load rating, strength tested to three times that figure - the headroom you want when a single panel is worth more than the room it is in
- 60" to 120" screen coverage, including curved commercial displays
- VESA 200x200 mm to 900x600 mm, with a maximum mounting hole span of 910x610 mm for the widest large-format panels
- Reach from 75 mm to 703 mm off the wall, enough to bring a screen clear of a recess or a column
- Quick-release latch lets the display come off the arm for servicing while the wall plate stays fixed and aligned
- Swivel of 60 degrees each way turns a very large screen towards a second viewing zone in a wide room
- Free-tilting head from plus 5 to minus 15 degrees, plus a plus 5 to minus 5 degree levelling adjustment
- Dual-stud wall plate spanning 406, 450 or 600 mm centres, or direct fixing into concrete and block
- Powder-coated steel throughout, specified for permanent commercial installation
- Supplied with the heavy-duty hardware bag, hook-on bubble level and printed installation guide
| Brand | VSYS |
|---|---|
| Display compatibility | 60 inch to 120 inch flat or curved large-format displays |
| In the box | Heavy-duty full-motion arm, dual-stud wall plate, heavy-duty mounting hardware bag, hook-on bubble level, printed installation guide |
| Material | Powder-coated steel |
| Max load | 120 kg (264 lbs) |
| Mounting type | Wall mount, heavy-duty full-motion arm |
| Quick release | Latch locks and releases the display without removing the wall plate |
| Screen levelling | Plus 5 to minus 5 degrees |
| Swivel range | Plus 60 to minus 60 degrees |
|---|---|
| Testing | Strength tested to 3 times rated load |
| Tilt range | Plus 5 to minus 15 degrees, free-tilting head |
| Vesa pattern | 200x200 mm to 900x600 mm, maximum hole span 910x610 mm |
| Wall distance | 75 mm folded, 703 mm fully extended |
| Wall fixing | Solid wall or dual stud at 406, 450 or 600 mm centres |
| Model | VS02D-696 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS02D-696?
It is a heavy-duty full-motion wall mount for large-format displays from 60" to 120" weighing up to 120 kg. It reaches from 75 mm to 703 mm off the wall, swivels 60 degrees each way, and takes VESA patterns up to 900x600 mm.
2. Is it compatible with my display?
Yes - if the panel is 60" to 120", weighs 120 kg or less and has a VESA pattern between 200x200 mm and 900x600 mm, it will fit; the maximum hole span is 910x610 mm. Tell us your display model when you request a quote and we will confirm the exact fit.
3. What does the quick-release latch actually do?
It locks the display onto the arm and releases it again without disturbing the wall plate. On a 120 kg panel that is a significant practical difference: you can lift the screen off for a repair, a cable change or a swap and put it back on the same alignment, instead of re-levelling the whole installation.
4. How far does it extend?
From 75 mm parked to 703 mm fully out. That reach is what lets a very large screen clear a wall recess, a column or a cabinet and still turn towards the audience.
5. What kind of wall does it need?
Solid concrete or block, or two timber studs at 406, 450 or 600 mm centres. A single stud is not sufficient for this class of load. Given the weight involved, plan the fixing before the display arrives on site.
6. Do you ship the VSYS VS02D-696 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS02D-696?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit, and we strongly recommend professional installation at this size and weight. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
9. Can it carry a large interactive panel?
Yes. A 120 kg rating and 900x600 mm VESA support cover essentially every interactive flat panel and large-format commercial display on the market, including 98" and 110" models that smaller full-motion arms cannot take.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
