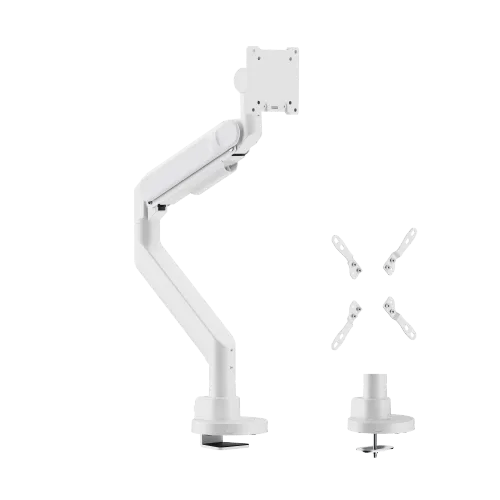

VSYS VMAD-C012 Heavy-Duty Gas-Spring Monitor Arm for 24"–57" Monitors, 27 kg. Built for the ultrawide and curved screens that break ordinary desk arms.
A 49" ultrawide or a 57" curved panel is not a big monitor - it is a small television on a desk, and most arms rated for 9 kg simply sag under one. The VSYS VMAD-C012 is engineered for that class: 24" to 57" displays weighing up to 27 kg flat or 22 kg curved, carried on an internal gas spring instead of a coil. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and display range, with quotations and low-cost delivery to your country.
Gas assistance is what makes a 25 kg screen feel weightless through a height range of 370 mm to 660 mm, and it holds position without creeping downward over months of use. Tilt is unusually generous at plus 60 to minus 20 degrees, swivel is plus or minus 90 degrees and rotation plus or minus 90 degrees. VESA support runs from 75x75 mm through the rectangular 100x200 and 200x100 patterns up to 200x200 mm, which is what large panels actually use. The detachable plate hangs on the monitor first so one person can lift and click a heavy display into place, and both a clamp (10-45 mm tops) and a grommet mount (10-40 mm) are supplied.
Key features
- 27 kg flat and 22 kg curved capacity - the two figures are quoted separately because curved panels load the arm differently
- Handles 24" up to 57", covering ultrawide, super-ultrawide and large curved desktop displays
- Gas spring rather than a coil spring: smoother through a long travel and far less prone to sagging as the arm ages
- Height range of 370 mm to 660 mm, enough to serve both a seated user and a sit-stand desk raised for standing work
- Tilt from plus 60 to minus 20 degrees, a wide arc that matters when a tall panel has to be angled away from overhead lighting
- VESA 75x75 mm to 200x200 mm including the rectangular 100x200 and 200x100 patterns used on large screens
- Detachable VESA plate turns installing a 25 kg monitor into a one-person job instead of a two-person lift
- Integrated rotation stop keeps a very wide screen from swinging into a wall, partition or neighbouring desk
- Desk clamp and grommet mount both included, with a cable channel running the length of the arm
- Steel and aluminium construction, powder coated in matte black or matte white, RoHS compliant
| Brand | VSYS |
|---|---|
| Cable management | Integrated channel along the arm |
| Colour | Matte black or matte white |
| Compliance | RoHS compliant |
| Counterbalance | Internal gas spring, tension tuned to the monitor weight |
| Desk fixing | Desk clamp for 10 to 45 mm tops, grommet mount for 10 to 40 mm tops |
| Display compatibility | One monitor, 24 inch to 57 inch, including ultrawide and curved |
| Height adjustment | 370 mm to 660 mm |
| In the box | Gas-spring arm, detachable VESA plate, desk clamp, grommet mount, installation instructions |
| Material | Steel and aluminium, powder coated |
|---|---|
| Max load | 2 kg to 27 kg flat panels, 2 kg to 22 kg curved panels |
| Mounting type | Desk-mounted single arm, gas spring, clamp or grommet |
| Rotation | Plus or minus 90 degrees, with integrated rotation stop |
| Swivel range | Plus or minus 90 degrees |
| Tilt range | Plus 60 to minus 20 degrees |
| Vesa pattern | 75x75, 100x100, 100x200, 200x100 and 200x200 mm |
| Model | VMAD-C012 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VMAD-C012?
It is a heavy-duty desk arm for one large monitor. A gas spring carries screens from 24" to 57" weighing up to 27 kg, with a 370 mm to 660 mm height range, wide tilt, swivel and rotation, and VESA support up to 200x200 mm.
2. Is it compatible with my monitor?
Yes - if the screen is 24" to 57", weighs no more than 27 kg flat or 22 kg curved, and uses a VESA pattern between 75x75 mm and 200x200 mm, it will fit. Tell us your monitor model when you request a quote and we will confirm the exact fit.
3. Why are the flat and curved weight limits different?
A curved panel puts its mass further from the mounting plate and generates more leverage on the arm, so the safe working load drops from 27 kg to 22 kg. Use the curved figure if your screen is curved, even if the manufacturer quotes a lower weight.
4. What is the advantage of a gas spring over a mechanical spring?
Two things at this weight class: a smoother, more even lift across a long 370 mm to 660 mm travel, and better resistance to gradual sag. Coil-spring arms are excellent up to around 9 kg; above that a gas cylinder is the right engineering answer.
5. Can one person install a 25 kg monitor on it?
Yes, and that is what the detachable VESA plate is for. Fix the plate to the back of the screen while it is flat on the desk, then lift once and click the assembly onto the arm. Make sure the desk itself is solid - the clamp fits tops from 10 mm to 45 mm.
6. Do you ship the VSYS VMAD-C012 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VMAD-C012?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can fit the arm, tension the gas spring to your screen and route the cables. Outside the UAE it ships ready for local setup with the clamp, grommet mount and instructions in the box.
9. Can it rotate a big screen into portrait?
Rotation is plus or minus 90 degrees, so portrait is mechanically possible. On a 49" or larger ultrawide it is rarely practical - the screen becomes taller than the user - so in that size class the rotation is more often used for fine levelling than for a full portrait flip.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects. Heavy-duty arms are commonly specified across whole trading floors and editing suites.
