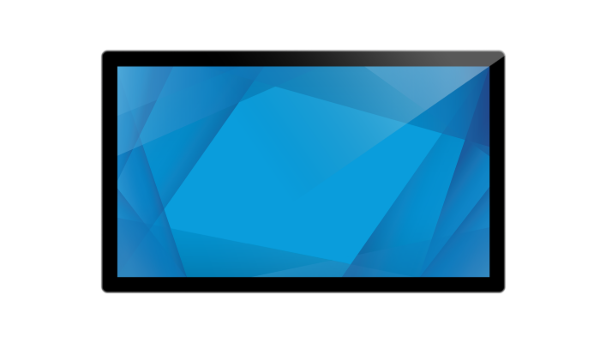

The Elo 5503L is a 55-inch interactive digital signage display featuring a 1920 x 1080 resolution and 450-nit brightness. This discontinued model supports up to 40-point touch input. Smart-Boards provides the current successor, the Elo 5554L, to clients across the GCC and Africa.
The Elo 5503L serves as a robust digital signage canvas, designed for continuous commercial operation. It features an active matrix TFT LCD panel with a 16:9 aspect ratio, delivering sharp visuals for collaborative meetings or endless aisle experiences. The enclosure is black, with slim dimensions of 1271.8 mm x 742.6 mm, allowing for clean integration into various environments.
Touch functionality is available via TouchPro PCAP technology supporting 40 touches or Infrared for 20 touches, both offering fast response times. The display includes dual HDMI 1.4 inputs, DisplayPort 1.2, and USB-C for touch and video. It operates on 100-240VAC power and includes 2 x 10 W stereo speakers for audio output in public or corporate settings.
Key features
- Touch Technology - Supports PCAP touch with 40 points and palm rejection or Infrared touch with 20 points for versatile interaction.
- Visual Specifications - Features a 55-inch diagonal screen with 1920 x 1080 resolution and 4000:1 contrast ratio for clear image reproduction.
- Connectivity Options - Equipped with two HDMI 1.4 ports, DisplayPort 1.2, and USB-C for video input and touch data transmission.
- Durability Design - Built for 24-hour daily operation with a 450-nit brightness level and sealed touchscreen for commercial resilience.
- Mounting Flexibility - Compatible with VESA 400 x 400mm and 600 x 600mm mounting patterns for wall or stand installation.
Ideal for: Suitable for corporate lobbies, retail kiosks, and command centers requiring large-format interaction, serving buyers across the GCC and Africa seeking reliable digital signage infrastructure.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- 5503L
- Product Name
- Elo 5503L - 55'' Interactive Digital Display Monitor
- Manufacturer
- Elo
- Compatibility
- Windows, macOS, Linux, Android
Display
- Backlight
- LED
- Brightness
- 450 cd/m²
- Colour depth
- 8-bit + FRC (1.07 billion colours)
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Screen Size
- 55 inches
- Resolution
- 1920 x 1080 Full HD
- Brightness
- 400 nits
- Contrast Ratio
- 4000:1
- Response Time
- 8ms typical
- Viewing Angle
- 178° horizontal, 178° vertical
- Aspect ratio
- 16:9
- Contrast ratio
- 4,000:1
- Panel technology
- LCD
- Response time
- 8 ms
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- Infrared
- Touch Technology
- Infrared (IR) touch
- Touch Points
- Up to 10 simultaneous touch points
System
- Operating system
- Android
- Operating System Compatibility
- Windows, Mac, Android, Linux
Connectivity
- Ports
- HDMI, DisplayPort, VGA, USB, RS-232, Ethernet, Audio In/Out
- Ports
- HDMI, DisplayPort, VGA, USB, RS-232, Ethernet, Audio In/Out
Camera & audio
- Speaker output
- 2 × 10 W
- Speaker type
- Built-in
Physical & warranty
- Operating humidity
- 20% to 80% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 81 W (typical)
- Standby power
- 0.3 W
- Weight
- 31.2 kg
- Shipping dimensions
- 1410 x 930 x 244 mm
- Warranty
- 3 years
- Weight
- 68.7 lbs (31.2 kg)
- Country of Origin
- USA
- Country of origin
- United States
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Elo 5503L still manufactured?
No, the Elo 5503L is discontinued. Smart-Boards supplies the current successor model, the Elo 5554L, which offers updated specifications for GCC and African markets.
Which countries in the GCC and Africa receive this product line?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations. Delivery times depend on the specific country and order size, confirmed in the quotation.
Does Smart-Boards provide installation in the UAE?
Yes, on-site installation is available within the UAE only. For other countries, delivery is ready for local setup with remote guidance if needed to ensure proper configuration.
What warranty coverage is included with the successor model?
The manufacturer provides a 3-year warranty with Advanced Unit Replacement (AUR). Smart-Boards offers extended service options, including 4 or 5-year coverage with AUR or On-Site Exchange.
Can the display be mounted behind glass?
Yes, the TouchPro PCAP option supports Touch Thru capability, allowing the display to be mounted behind glass, in counters, or in fully encased kiosks for added durability.
What is the power consumption of the Elo 5503L?
The typical power consumption is 81 W when ON, 1.8 W in SLEEP mode, and 0.3 W when OFF, using the standard AC/DC adapter without additional computer modules.
How do I get pricing for the Elo 5554L?
Pricing is by quotation only. Contact Smart-Boards for quote-only pricing, which includes education, government, bulk, and tender options for multi-site rollouts across the region.
