Product overview

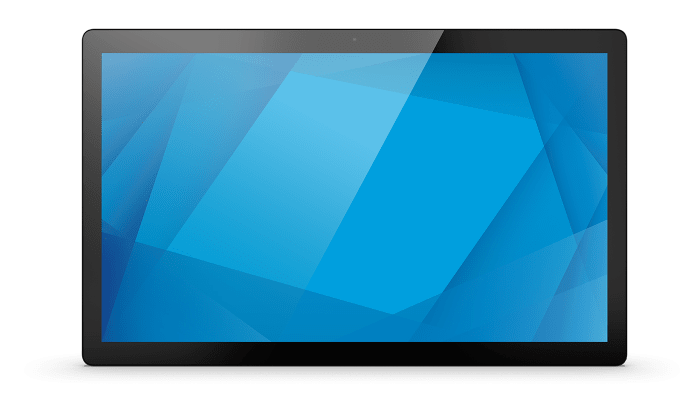

ELO 22-inch I-Series with Linux. A projector-free, PC-free interactive display for teaching and team meetings.
The ELO 22-inch I-Series with Linux is an interactive display designed to keep every session engaging - a bright panel, smooth touch and integrated apps let presenters annotate, cast and video-call without extra hardware. Smart-Boards offers it across the UAE, wider GCC and Africa with quotation-based pricing, bulk and education options, and reliable delivery wherever you are based.
Key features
- 22" display at 250 cd/m² brightness in Full HD for sharp, readable content
- 10 Points Multi Touch, Capacitive touch for smooth, natural writing and group work
- Built-in Linux Debian 10 on a Rockchip RK3399 processor for apps, whiteboarding and casting
- Integrated audio (2 × 2W) that fills the room
- Built-in camera and microphones ready for video calls
- Flexible connectivity: USB 3.0 × 1; Type C USB output × 1
Specifications
| Specification | Detail |
|---|---|
| Screen size | 22" |
| Resolution | Full HD |
| Panel & backlight | LED backlight (LED) |
| Brightness | 250 cd/m² |
| Refresh rate | 60 Hz |
| Touch | 10 Points Multi Touch, Capacitive |
| Operating system | Linux Debian 10 |
| Processor | Rockchip RK3399 |
| Memory | 4 GB RAM, 32 GB storage |
| Audio | 2 × 2W |
| Built-in camera | Yes |
| Connectivity | USB 3.0 × 1; Type C USB output × 1 |
Ideal for: boardrooms, classrooms, training rooms, lecture halls and government meeting spaces across the GCC and Africa
Delivery & logistics: Smart-Boards ships the ELO 22-inch I-Series with Linux to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; other countries receive delivery ready for local setup.
Frequently asked questions
1. What is the ELO 22-inch I-Series with Linux?
It is a 22" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at Full HD on a led backlight (led), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 10 Points Multi Touch, Capacitive, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Linux Debian 10 on board for whiteboarding, casting and apps, powered by a Rockchip RK3399 processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (2 × 2W) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Professional mounting is available within the UAE.
7. Do you ship the ELO 22-inch I-Series with Linux across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
8. How do I get a price for the ELO 22-inch I-Series with Linux?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
9. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request.
10. Is there a warranty and after-sales support?
Yes - the ELO 22-inch I-Series with Linux comes with manufacturer warranty plus Smart-Boards after-sales support for the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Specifications
| Ifp accessories | Quick Install Guide, Screws for cable cover door |
|---|---|
| Ifp backlight | LED |
| Ifp bluetooth | Bluetooth 5.0 |
| Ifp brightness | 250 cd/m² |
| Ifp built in camera | Yes |
| Ifp cpu | Rockchip RK3399 |
| Ifp display color | 8bit |
| Ifp ethernet rj45 | LAN (Gigabit) × 1 |
| Ifp included cables | NA Power Cable, EU Power Cable, Power Brick |
| Ifp operating humidity | 20%~80% |
| Ifp operating temprature | 0°C to 40°C |
| Ifp os version | Linux Debian 10 |
| Ifp power consumption | 14.49W |
| Ifp power standby | 0.32W |
| Ifp product dimensions | 524.8 × 324.8 × 29.7 mm |
| Ifp product weight | 4.3 kg |
| Ifp ram | 4 GB |
| Ifp refresh rate | 60 Hz |
| Ifp resolution | Full HD |
| Ifp screen size | 22 inch |
| Ifp sd card slot | Micro SD slot × 1 |
| Ifp shipping dimensions | 600 × 168 × 406 mm |
| Ifp speaker output | 2 × 2W |
| Ifp speaker type | Built-in Speakers |
| Ifp storage | 32 GB |
| Ifp touch points | 10 Points Multi Touch |
| Ifp touch technology | Capacitive |
| Ifp type c in | Type C USB output × 1 |
| Ifp usb ports | USB 3.0 × 1 |
| Ifp viewing angle | Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
| Ifp wall mount | VESA 75mm and 100mm |
| Ifp warranty | 2 years |
| Ifp wi fi | 802.11a/b/g/n/ac |
Frequently asked questions
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
