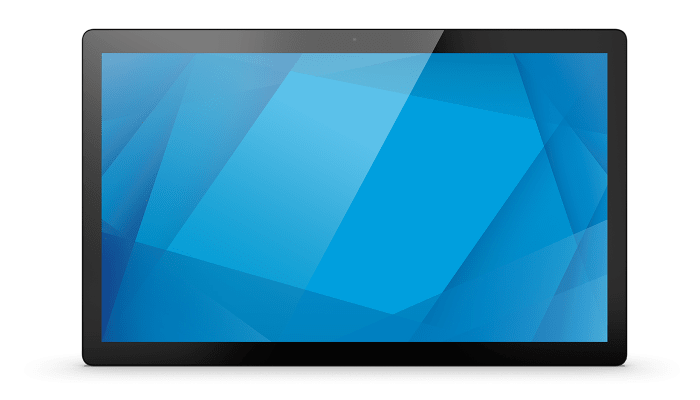

The Elo I-Series 5 (E541463) is a 22-inch Android 14 touchcomputer designed for digital signage and kiosk applications. Featuring a Qualcomm Snapdragon QCS6490 processor and 8GB RAM, it delivers reliable performance in a sealed enclosure. Smart-Boards supplies this model for multi-site deployments across the GCC and Africa.
This Elo unit combines a 22-inch Full HD display with PCAP touch technology, supporting up to 10 simultaneous touch points. The internal Qualcomm Snapdragon QCS6490 processor paired with 8GB RAM ensures smooth operation of Android 14 and EloView management software. It includes integrated WiFi 6E, Bluetooth 5.2, and an 8MP webcam for versatile connectivity. The sealed touchscreen protects against dust and moisture, ensuring durability in high-traffic environments.
Smart-Boards provides this Elo touchcomputer for businesses requiring flexible signage solutions across the GCC and African regions. The device supports Power over Ethernet via the optional E669163 kit, simplifying installation in locations with limited power access. It offers extensive mounting options including VESA 75mm and 100mm compatibility. We coordinate logistics from Dubai Silicon Oasis to ensure timely delivery to UAE, KSA, Qatar, Kuwait, Oman, and Bahrain.
Key features
- Android 14 OS - Runs Android 14 with Google Play Services and EloView content deployment tools.
- Touch Display - 21.5-inch diagonal active matrix TFT LCD with 1920 x 1080 resolution and 10-point PCAP touch.
- Processing Power - Equipped with a Qualcomm Snapdragon QCS6490 processor, 8GB RAM, and 64GB storage.
- Connectivity - Includes Gigabit Ethernet, USB 3.0, Micro SD slot, GPIO, WiFi 6E, and Bluetooth 5.2.
- Mounting Flexibility - Supports VESA 75mm and 100mm patterns for wall, shelf, or floor stand installation.
- Accessory Options - Compatible with MSR, fingerprint scanners, barcode readers, and EMV card readers.
- Sealed Enclosure - Touchscreen is sealed to the LCD to withstand demanding environmental conditions.
Ideal for digital signage, self-service kiosks, and point-of-sale systems, this Elo touchcomputer suits buyers across the GCC and Africa seeking durable, modular AV hardware.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- North American Power Cable, European Power Cable, 1 × Power Brick
- SD card slot
- Micro SD slot × 1
Display
- Colour
- Black
- Backlight
- LED
- Brightness
- 250 cd/m²
- Colour depth
- 8bit
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 22 inch
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,000:1
- Panel technology
- LCD
- Response time
- 14 ms
Touch
- Touch points
- 10 Points Multi Touch
- Touch technology
- Capacitive
System
- Processor
- Qualcomm Snapdragon QCS6490
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 64 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- USB-C
- Type-C × 1
- USB ports
- USB 3.0 × 1, Micro-USB 2.0 × 4
- Wi-Fi
- Wi-Fi 6E
Camera & audio
- Built-in camera
- Yes
- Camera
- 8 MP
- Speaker output
- 2 × 1.5 W
- Speaker type
- Built-in Speakers
- Microphone
- 2 digital mics
Physical & warranty
- In the box
- Screws for cable cover door
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- < 15.2 W
- Standby power
- ≤ 0.2 W
- Dimensions
- 524.8 × 324.8 × 29.7 mm
- Weight
- 3.8 kg
- Shipping dimensions
- 590 × 168 × 400 mm
- VESA mount
- VESA 75 mm, 100 mm
- Warranty
- 2 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the warranty period for the Elo I-Series 5?
The manufacturer provides a 2-year warranty. Smart-Boards also offers extended service options, including 3, 4, or 5-year warranty coverage and OS 360 subscriptions, available upon quotation.
Which countries can receive delivery?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners. Delivery times depend on the country and order size, confirmed in your quote.
Does Smart-Boards handle installation in the UAE?
Yes, we provide on-site installation services within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
Can this unit be powered by Ethernet?
Yes, Power over Ethernet is supported using the optional Elo PoE Device kit (P/N E669163). This reduces cabling complexity for signage deployments.
What mounting options are available?
The unit supports VESA 75mm and 100mm mounting patterns. You can use wall mounts, tabletop stands, shelf brackets, floor stands, or pole mounts.
Is the operating system upgradeable?
The device ships with Android 14. Planned upgrades to Android 16 and 18 are available through the OS 360 subscription service for continuous content management support.
Can I add a barcode scanner?
Yes, the unit supports optional peripherals including 2D barcode scanners (SE2707, SE4720, SE4107), magnetic stripe readers, and fingerprint scanners for specialized kiosk applications.
