Product overview

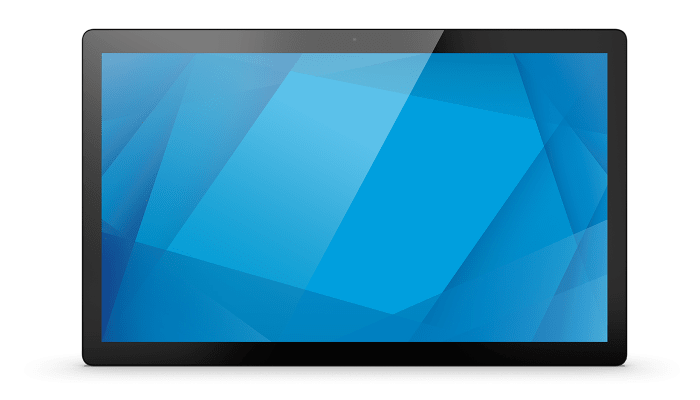

ELO 22-inch I-Series 4 for Android Standard Model, Android 10, Black. A 22" interactive display built for boardrooms, classrooms and training rooms.
Built for modern meeting rooms and classrooms, the ELO 22-inch I-Series 4 for Android Standard Model, Android 10, Black is an all-in-one interactive flat panel with a crisp screen, natural writing and built-in collaboration tools. It replaces the projector-and-whiteboard setup with one clean device that deploys fast and is easy to use. Smart-Boards delivers it throughout the GCC and African markets with demos, tailored quotations and cost-efficient shipping through established logistics partners.
Key features
- 22" display at 250 cd/m² brightness in Full HD for sharp, readable content
- 10 Points Multi Touch, Capacitive touch for smooth, natural writing and group work
- Built-in Android 10 on a Qualcomm Snapdragon SDA660 (Standard)… processor for apps, whiteboarding and casting
- Integrated audio (2 × 0.8 W (Standard), 2 × 2 W (Value)) that fills the room
- Built-in camera and microphones ready for video calls
- Flexible connectivity: USB 3.0 × 1; Type C USB output × 1
Specifications
| Specification | Detail |
|---|---|
| Screen size | 22" |
| Resolution | Full HD |
| Panel & backlight | LED backlight (LED) |
| Brightness | 250 cd/m² |
| Refresh rate | 60 Hz |
| Touch | 10 Points Multi Touch, Capacitive |
| Operating system | Android 10 |
| Processor | Qualcomm Snapdragon SDA660 (Standard), Rockchip RK3399 (Value) |
| Memory | 4 GB RAM, 64 GB / 32 GB storage |
| Audio | 2 × 0.8 W (Standard), 2 × 2 W (Value) |
| Built-in camera | Yes |
| Connectivity | USB 3.0 × 1; Type C USB output × 1 |
Ideal for: boardrooms, classrooms, training rooms, lecture halls and government meeting spaces across the GCC and Africa
Delivery & logistics: Smart-Boards ships the ELO 22-inch I-Series 4 for Android Standard Model, Android 10, Black to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; other countries receive delivery ready for local setup.
Frequently asked questions
1. What is the ELO 22-inch I-Series 4 for Android Standard Model, Android 10, Black?
It is a 22" interactive flat panel with multi-point touch and built-in Android - an all-in-one screen for meetings, teaching and training that removes the need for a separate projector and PC.
2. What resolution and panel does it use?
It runs at Full HD on a led backlight (led), keeping text and detail sharp across the room.
3. How responsive is the touch?
It supports 10 Points Multi Touch, Capacitive, so several people can write and annotate at the board at the same time with a natural feel.
4. Does it need a separate computer?
No. It runs Android 10 on board for whiteboarding, casting and apps, powered by a Qualcomm Snapdragon SDA660 (Standard)… processor; an optional OPS slot adds full Windows if you need it.
5. Is the built-in audio strong enough?
Yes - the integrated speakers (2 × 0.8 W (Standard), 2 × 2 W (Value)) project clearly, with support for external audio when required.
6. How is it mounted?
It uses a standard VESA fixing on a wall bracket or a mobile/floor stand. Professional mounting is available within the UAE.
7. Which countries can you deliver to?
We deliver across the UAE, wider GCC (KSA, Qatar, Kuwait, Oman, Bahrain) and African markets, using established logistics partners to keep shipping costs low. UAE orders include on-site installation; other countries receive delivery ready for local setup.
8. Why is there no price shown, and how do I buy?
We work quote-only so we can offer the best project and volume pricing. Request a quote from the page or email info@procure.ae, or call +971 4 546 5041, and we will send a formal quotation.
9. Do you handle installation?
On-site installation is available within the UAE. For other GCC and African countries we supply and ship the ELO 22-inch I-Series 4 for Android Standard Model, Android 10, Black ready for your local team to set up, with remote guidance if needed.
10. What warranty do I get?
It is covered by manufacturer warranty, and Smart-Boards provides after-sales support across the GCC and African markets.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Specifications
| Ifp accessories | Quick Install Guide, Screws for cable cover door |
|---|---|
| Ifp backlight | LED |
| Ifp bluetooth | Bluetooth 5.0 |
| Ifp brightness | 250 cd/m² |
| Ifp built in camera | Yes |
| Ifp cpu | Qualcomm Snapdragon SDA660 (Standard), Rockchip RK3399 (Value) |
| Ifp display color | 8bit |
| Ifp ethernet rj45 | RJ45 (1000 Mbps Port) × 1 |
| Ifp included cables | NA Power Cable, EU Power Cable, Power Brick |
| Ifp operating humidity | 20%~80% RH |
| Ifp operating temprature | 0 °C to 40 °C |
| Ifp os version | Android 10 |
| Ifp power consumption | < 19.8 W (Standard), < 15.7 W (Value) |
| Ifp power standby | ≤ 0.4 W |
| Ifp product dimensions | 524.8 × 324.8 × 29.7 mm |
| Ifp product weight | 3.8 kg (Standard), 4.3 kg (Value) |
| Ifp ram | 4 GB |
| Ifp refresh rate | 60 Hz |
| Ifp resolution | Full HD |
| Ifp screen size | 22 inch |
| Ifp sd card slot | Micro SD slot × 1 |
| Ifp shipping dimensions | 590 × 168 × 400 mm (Standard), 600 × 168 × 406 mm (Value) |
| Ifp speaker output | 2 × 0.8 W (Standard), 2 × 2 W (Value) |
| Ifp speaker type | Built-in Speakers |
| Ifp storage | 64 GB / 32 GB |
| Ifp touch points | 10 Points Multi Touch |
| Ifp touch technology | Capacitive |
| Ifp type c in | Type C USB output × 1 |
| Ifp usb ports | USB 3.0 × 1 |
| Ifp viewing angle | 178° (H) / 178° (V) |
| Ifp wall mount | VESA 75 mm and 100 mm |
| Ifp warranty | 2 years |
| Ifp wi fi | 802.11a/b/g/n/ac |
Frequently asked questions
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
