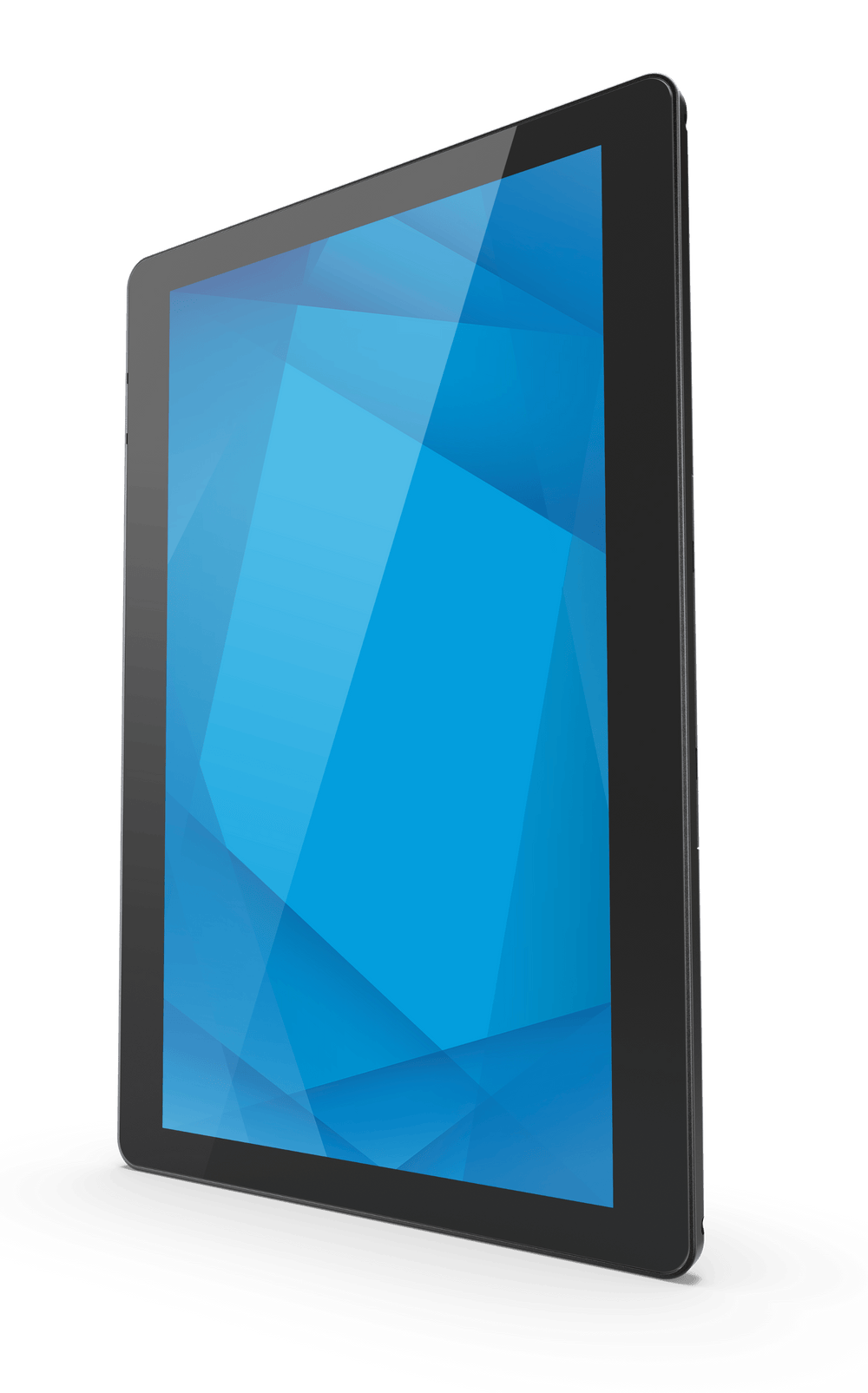

The Elo I-Series 3 is a 22-inch signage media player featuring Intel Core i3 or i5 processors, 1080p resolution, and integrated PCAP touch. Smart-Boards supplies this unit across the GCC and Africa for digital signage and self-service applications, offering regional logistics and support.
This Elo device integrates an Intel processor with a 21.5-inch active matrix TFT LCD, delivering a 1920 x 1080 resolution at 60Hz. It supports up to 64GB of DDR5 RAM and NVMe SSD storage, ensuring reliable performance for digital signage and automation controls. The enclosure includes a Kensington lock and supports 100mm VESA mounting for flexible deployment in commercial environments.
Smart-Boards supplies the Elo I-Series 3 to organizations across the GCC and Africa, from Dubai to regional offices. We provide quote-only pricing with options for education and bulk orders. Delivery time depends on the country and order size, confirmed on the quotation. Our team handles shipping through established logistics partners, ensuring cost-effective delivery to your site.
Key features
- Processor Options - Available with Intel Celeron 7305L, Core i3-1215UL, or Core i5-1245UL processors, with i5 models offering Intel vPro capabilities for enhanced management.
- Touch Technology - Features PCAP (TouchPro) touch technology supporting 10 touch points, with a sealed touchscreen that provides durability for high-traffic public areas.
- Connectivity Ports - Includes Gigabit LAN, four USB 3.0 ports, Micro USB ports for Elo Edge Connect peripherals, and a full-function USB-C port for versatile device integration.
- Wireless Standards - Built-in Wi-Fi 6E (802.11ax) supports 2.4GHz, 5GHz, and 6GHz bands, alongside Bluetooth 5.3, ensuring stable wireless connections for signage content.
- Mounting and Stands - Supports 100mm VESA mounting for wall or arm installation, with optional tabletop and floor stands available for self-service kiosk configurations.
Ideal for: Digital signage, self-service kiosks, and automation controls for businesses and government entities across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- North America Power Cord, European Power Cord, Power Adapter – 180W, Cable RJ-50 to DB-9, Quick Installation Guide, Cable tie, VESA mounting screw
- Key features
- 10-point PCAP touch, 21.5-inch Full HD LCD, IP54 rating, Wi-Fi 6 (802.11ax), Bluetooth 5.3, Gigabit Ethernet, Kensington lock, TPM 2.0
Display
- Backlight
- LED
- Brightness
- 250 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 22 inch
- Surface protection
- Anti-glare
- Viewing angle
- 178° (H) / 178° (V)
- Contrast ratio
- 1,000:1
- Panel technology
- LCD
- Response time
- 14 ms
Touch
- Touch points
- 10 Points Multi Touch
- Touch technology
- Capacitive
System
- Processor
- Intel Celeron 7305L / Intel Core i3-1215UL / Intel Core i5-1245UL / Intel Core i7-1265UL
- Graphics
- Intel UHD Graphics / Intel Iris Xe Graphics
- NPU
- Hailo 8 AI Module (on select models)
- Operating system
- No OS
- RAM
- 8 GB / 16 GB / 32 GB
- Storage
- 128 GB / 256 GB / 1 TB
Connectivity
- Bluetooth
- Bluetooth 5.3
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- Serial port
- RJ50 Powered Serial Port × 1
- USB-C functions
- Power up to 27W, USB 3.0, Display Port, Additional Video Out
- USB-C
- USB-C (USB 3.0, DisplayPort, 27 W charging, additional video out)
- USB ports
- USB 3.0 × 4, Micro USB 2.0 × 4, 24V Powered USB × 1, 12V Powered USB × 2
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5/6 GHz
Camera & audio
- Audio out
- Audio Port (3.5 mm headset jack) × 1
- Speaker output
- 2 × 2 W
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- North America Power Cord, European Power Cord, Power Adapter 180 W, Cable RJ-50 to DB-9, Quick Installation Guide, Cable tie, CFD mounting screw, VESA mounting screw, VESA cover and mounting screw
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C to 35 °C
- Power consumption
- 39 W (typical)
- Standby power
- < 0.5 W
- Dimensions
- 525.8 x 368.7 x 204.6 mm
- Weight
- 10.02 kg
- Shipping dimensions
- 645 x 513 x 318 mm
- VESA mount
- 100 × 100 mm (VESA)
- Warranty
- 3 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries in the GCC and Africa can receive this product?
Yes, Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. We use established logistics partners to deliver to your specific location. Delivery times vary by country and are confirmed in your quotation.
Is on-site installation available outside the UAE?
No, on-site installation is only provided within the UAE. For other countries, the unit is delivered ready for local setup. We offer remote guidance to assist your local team with the installation process, ensuring the device is correctly configured and operational at your site.
What operating systems does the I-Series 3 support?
The media player supports Windows 10 IoT Enterprise LTSC 64-bit, Windows 11 IoT Enterprise LTSC 64-bit, and ChromeOS Flex. It is also available without a pre-installed operating system, allowing you to choose the OS that best fits your digital signage or kiosk requirements.
Can I extend the RAM or storage capacity?
Yes, the unit has two SO-DIMM slots expandable to 64GB DDR5 RAM and an M.2 PCIe NVMe SSD slot. You can upgrade components by opening the back cover. Smart-Boards can supply compatible upgrade kits, including higher-capacity SSDs and additional RAM modules for your specific model.
What optional peripherals are available for this model?
You can attach peripherals using Elo Edge Connect or USB ports. Options include magnetic stripe readers, fingerprint scanners, customer displays, and 2D barcode scanners. These accessories enhance the device's functionality for point-of-sale, identity verification, and self-service applications.
Does the unit include mounting hardware?
Yes, the package includes VESA mounting screws, a VESA cover, and a CFD mounting screw. The unit supports standard 100mm VESA patterns. For wall or ceiling mounts, you may need a separate wall mount kit or arm, which Smart-Boards can also supply if required.
How is warranty and support handled in the GCC?
The product includes a 3-year manufacturer warranty. Smart-Boards provides after-sales support for our clients across the GCC and Africa. We can also arrange extended warranty coverage options, such as 4 or 5-year plans, to ensure long-term reliability for your digital signage infrastructure.
