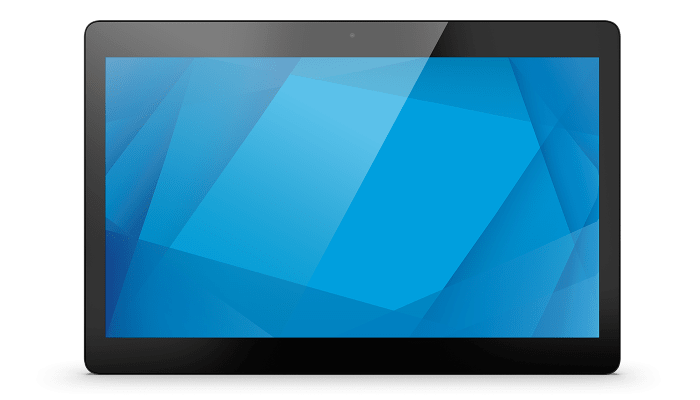

The Elo I-Series E131747 is a 15-inch Linux-based digital signage and interactive kiosk computer designed for durable, secure public-facing applications. Featuring a Rockchip RK3399 processor, 4GB RAM, and a 1080p touch display, it delivers reliable performance for self-service and point-of-sale systems across the GCC and Africa.
This device integrates a 15.6-inch active matrix TFT LCD panel with 1920x1080 resolution and 250 nits brightness for clear visibility in various lighting conditions. The PCAP touchscreen supports up to 10 simultaneous touch points, enabling intuitive interaction for kiosks or price checkers. Powered by a Rockchip RK3399 processor and 4GB of RAM, it runs a stable Linux Debian 10 operating system, ensuring consistent uptime for critical enterprise tasks.
Connectivity is robust, featuring Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0, and a 5MP auto-focus webcam for video-enabled applications. It includes a 32GB storage drive, Micro SD slot, and GPIO for peripheral expansion. The unit supports PoE via an optional Elo module and accepts 100-240V AC input, making it suitable for diverse power standards. Smart-Boards supplies this model to organizations across the GCC and Africa, offering tailored deployment support.
Key features
- Linux Touch Interface - 15.6-inch 1920x1080 PCAP display with 10-point touch capability for reliable user interaction.
- Performance Hardware - Rockchip RK3399 processor with 4GB RAM and 32GB storage runs Linux Debian 10 efficiently.
- Network Connectivity - Includes Gigabit Ethernet, Wi-Fi 802.11ac, Bluetooth 5.0, and optional PoE support.
- Integrated Camera - Built-in 5MP webcam with 1080p@30fps resolution and auto-focus for video applications.
- Global Power Compatibility - Accepts 100-240V AC input at 50-60Hz, suitable for international electrical standards.
Ideal for: Self-service kiosks, point-of-sale terminals, and digital signage displays requiring a durable Linux touchscreen, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- NA Power Cable, EU Power Cable, Power Brick
- SD card slot
- microSD card slot × 1
- Key features
- Linux Debian 10, 10-point PCAP touch, touchscreen sealed to LCD, 5 MP autofocus webcam, Wi-Fi 5 (802.11ac), Bluetooth 5.0, Gigabit Ethernet, microSD slot, PoE via optional module
Display
- Backlight
- LED
- Brightness
- 250 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 15 inch
- Viewing angle
- 160° (H) / 160° (V)
- Contrast ratio
- 700:1
- Panel technology
- LCD
- Response time
- 25 ms
Touch
- Touch points
- 10 Points Multi Touch
- Touch technology
- Capacitive
System
- Processor
- Qualcomm Snapdragon SDA660 / Rockchip RK3399
- Operating system
- Android 10
- RAM
- 4 GB
- Storage
- 64 GB / 32 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- USB-C
- Type-C × 1
- USB ports
- USB 3.0 × 1
- Wi-Fi
- Wi-Fi 5 (802.11ac)
Camera & audio
- Built-in camera
- Yes
- Camera
- 5 MP
- Speaker output
- 2 × 0.8 W / 2 × 2 W
- Speaker type
- Built-in Speakers
- Microphone
- 1 built-in analog mic
Physical & warranty
- In the box
- Quick Install Guide, Screws for cable cover door
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 8.91 W (typical)
- Standby power
- ≤ 0.4 W
- Dimensions
- 377.7 × 249.7 × 22.3 mm / 389.7 × 249.7 × 22.3 mm
- Weight
- 1.6 kg
- Shipping dimensions
- 450 × 165 × 330 mm / 465 × 160 × 330 mm
- VESA mount
- VESA 75 mm and 100 mm
- Warranty
- 2 years
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this model suitable for outdoor use?
No, the operating temperature range is 0°C to 40°C, and brightness is 250 nits, which is designed for indoor environments.
Can it be mounted on a wall?
Yes, the enclosure supports VESA 75mm and 100mm mounting patterns for flexible installation options.
Does it support Power over Ethernet?
Yes, PoE is supported via the optional Elo PoE Device (PN: E413396) as detailed in the user guide.
What warranty options are available?
Extended service options include 3, 4, or 5-year warranty coverage with or without Advanced Depot Replacement (ADP) services.
Which countries can be delivered to?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners at the lowest possible cost.
Is on-site installation available outside the UAE?
On-site installation is within the UAE only. Other countries receive delivery ready for local setup with remote guidance if needed.
What is the display viewing angle?
The viewing angle is ±80° horizontally and vertically, providing a total of 160° for wide-angle visibility.
