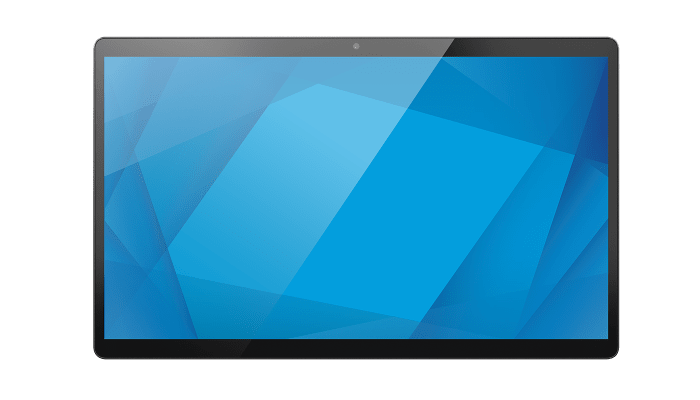

The Elo I-Series 3 Slate is a compact signage media player featuring a 15-inch PCAP touch display and Intel Elkhart Lake J6426 processor. Designed for reliable commercial deployment, it includes integrated security, Gigabit Ethernet, and optional Windows or Linux operating systems. Smart-Boards supplies this unit for projects across the GCC and Africa.
Built on the Intel Elkhart Lake platform, this media player combines processing power with industrial-grade reliability for digital signage environments. The 15.6-inch active matrix TFT LCD offers 1920 x 1080 resolution with 10-point PCAP touch capability, supporting clear visual content and interactive controls. Integrated Intel UHD Graphics handles standard display tasks efficiently while the 128GB NVMe SSD provides secure storage. The device operates without a pre-installed OS or supports pretested Windows 10/11 IoT Enterprise LTSC 64-bit or Linux distributions, allowing flexibility for diverse deployment needs.
Connectivity and security are central to its design, featuring Gigabit Ethernet, dual-band Wi-Fi 6, and Bluetooth 5.2 for robust network integration. An external 65W power adapter powers the unit, which consumes less than 2W in sleep mode. The compact dark gray enclosure supports 75mm VESA mounting, simplifying installation in retail, corporate, or educational settings. Smart-Boards, as an authorised reseller, provides comprehensive documentation and after-sales support for organisations in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African nations.
Key features
- Intel Processing - Powered by an Intel Elkhart Lake J6426 processor with Intel UHD Graphics for consistent media playback performance.
- Touch Display - Features a 15.6-inch 1080p PCAP display with 10-point touch capability and 300 nits typical brightness for clear visibility.
- Network Connectivity - Includes Gigabit Ethernet, 802.11ax Wi-Fi, and Bluetooth 5.2 for reliable wireless and wired connections.
- Security Standards - Equipped with TPM 2.0 and regulatory approvals including CE, FCC, and UL for compliant commercial deployment.
- Operating Flexibility - Supports Windows 10/11 IoT Enterprise LTSC 64-bit or pretested Linux options like Ubuntu and Red Hat for versatile software environments.
Ideal for: Digital signage, interactive kiosks, and POS terminals requiring reliable media playback and touch input for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- North America Power Cord, European Power Cord, 65W Power Adapter, Quick Installation Guide (QIG)
- Key features
- 10-point PCAP touch, TPM 2.0, 8 MP webcam with auto focus, Digital microphone, IO Hub with RJ45 Gigabit and 4 USB-A 3.0, Memory expandable to 32 GB, 2T2R antenna design
- Antenna
- 2T2R
Display
- Backlight
- LED
- Blue light filter
- No
- Brightness
- 300 cd/m²
- Colour depth
- 8-bit (16.2 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 15.6 inch
- Viewing angle
- 170° (H) / 170° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,000:1
- Panel technology
- LCD
- Response time
- 25 ms
Touch
- Touch points
- 10 Points Multi Touch
- Touch response time
- 25 ms
- Touch technology
- Capacitive
System
- Ambient light sensor
- No
- Processor
- Intel Pentium Processor J6426
- Graphics
- Intel UHD Graphics
- Operating system
- No OS
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- USB-C functions
- Supports USB 2.0/3.0, DP Output, Power Delivery 2.0
- USB-C
- USB-C (USB 2.0/3.0, DP output, Power Delivery 2.0)
- USB ports
- USB 3.0 × 4
- Wake-on-LAN
- No
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5/6 GHz
Camera & audio
- Built-in camera
- Yes
- Camera
- 8 MP
- Speaker output
- 2 × 2 W
- Speaker type
- Built-in Speakers
- Microphone
- Digital Microphone
Physical & warranty
- In the box
- North America Power Cord, European Power Cord, 65 W Power Adapter, Quick Installation Guide (QIG), IO Hub
- Operating humidity
- 10%~90% RH
- Operating temperature
- 0 °C to 35 °C
- Power consumption
- < 30 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 362.8 × 223.4 × 15.3 mm
- Weight
- 1.6 kg
- Shipping dimensions
- 460 × 321 × 178 mm
- VESA mount
- 75 × 75 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 4 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Elo I-Series 3 Slate come with an operating system?
The unit is available without an OS, or pre-installed with Windows 10/11 IoT Enterprise LTSC 64-bit. It also supports pretested Linux distributions such as Ubuntu and Red Hat for flexible deployment options.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations. Delivery costs are minimised through established logistics partners, with timing confirmed on the quotation.
Is on-site installation included for orders outside the UAE?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup, with remote guidance provided if needed to assist local teams with configuration and mounting.
What is the warranty coverage for this media player?
The standard warranty is three years. Extended service options are available, including four-year or five-year coverage with or without an Automatic Unit Replacement (AUR) service for added peace of mind.
Does the device support touch interaction?
Yes, the 15.6-inch display features PCAP touch technology supporting up to 10 touch points simultaneously, enabling interactive content control for kiosks or signage applications.
What mounting options are available for installation?
The enclosure supports standard 75mm VESA mounting, allowing secure attachment to walls, stands, or custom brackets. The slim profile ensures a low visual impact in various commercial environments.
How is pricing handled for bulk or tender orders?
Pricing is by quotation only. Smart-Boards offers tailored pricing for education, government, bulk, and tender orders. Contact the team for a detailed quote including delivery and support options for your region.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
