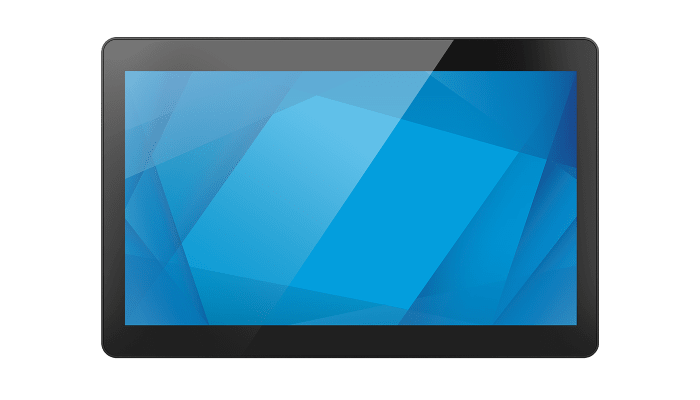

The Elo I-Series 3 is a rugged 15-inch digital signage media player designed for high-traffic environments. Featuring Intel processing, a 1920 x 1080 display, and IP54 sealing, it supports diverse peripheral integration. Smart-Boards supplies this durable unit across the GCC and African regions.
The Elo I-Series 3 media player combines a 15.6-inch active matrix TFT LCD with robust industrial-grade components. It offers a 16:9 aspect ratio and 1920 x 1080 resolution at 60Hz for clear visual output. The enclosure features an IP54 rating, with the touchscreen sealed to the sub-bezel and LCD to resist dust and moisture. This sealing ensures reliable operation in demanding public or industrial settings across the GCC and Africa.
Processing power is delivered by Intel Celeron, Core i3, or Core i5 processors, with options for Intel vPro management. Memory ranges from 8GB to 16GB DDR5 SO-DIMM, expandable to 64GB, paired with NVMe SSDs for fast data access. The device includes integrated 802.11ax Wi-Fi and Bluetooth 5.3 for wireless connectivity. It supports Windows 10/11 IoT Enterprise LTSC or ChromeOS Flex, providing flexible OS choices for digital signage deployments.
Key features
- Durable Enclosure - The black enclosure meets IP54 ingress protection standards, with the touchscreen sealed to the sub-bezel and LCD to withstand dusty or humid environments.
- Intel Processing Options - Configurations include Intel Celeron 7305L, Core i3-1215UL, or Core i5-1245UL processors, offering scalable performance for various signage workloads.
- Peripheral Connectivity - The device supports edge-mounted peripherals via Micro USB ports, including barcode scanners, MSR readers, and fingerprint scanners for interactive kiosks.
- Flexible Mounting - A built-in 75mm VESA mount allows easy installation on walls, shelves, or poles, while the optional tabletop stand provides desktop placement.
- Wireless Integration - Integrated 802.11a/b/g/n/ac/ax Wi-Fi and Bluetooth 5.3 enable seamless wireless communication without external adapters.
Ideal for: Digital signage, self-service kiosks, and interactive displays in schools, corporate lobbies, and public facilities across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- North America Power Cord, European Power Cord, Power Adapter – 180W, Cable RJ-50 to DB-9, Quick Installation Guide (QIG), Cable tie, VESA mounting screw, 75mm to 100mm adapter and mounting screw
- Key features
- 10-point PCAP touch, TPM 2.0, IP54 ingress protection, Kensington lock, Serviceable internal components, Touchscreen sealed to LCD, Memory expandable to 64 GB
- IP rating
- IP54
Display
- Backlight
- LED
- Brightness
- 350 cd/m²
- Colour depth
- 8-bit (16.2 million colours)
- Refresh rate
- 60 Hz
- Resolution
- Full HD
- Screen size
- 15 inch
- Surface protection
- Anti-glare
- Viewing angle
- 170° (H) / 170° (V)
- Aspect ratio
- 16:9
- Contrast ratio
- 1,000:1
- Panel technology
- LCD
- Response time
- 25 ms
Touch
- Touch points
- 10 Points Multi Touch
- Touch response time
- 25 ms
- Touch technology
- Capacitive
System
- Processor
- Intel Celeron 7305L / Intel Core i3-1215UL / Intel Core i5-1245UL / Intel Core i7-1265UL
- Graphics
- Intel UHD Graphics / Intel Iris Xe Graphics
- Operating system
- Windows 10
- RAM
- 8 GB / 16 GB
- Storage
- 128 GB / 256 GB
Connectivity
- Bluetooth
- Bluetooth 5.3
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- Serial port
- RJ50 Powered Serial Port × 1
- USB-C functions
- Power up to 27W, USB 3.0, Display Port, Additional Video Out
- USB-C
- USB-C (USB 3.0, DisplayPort, 27 W charging, additional video out)
- USB ports
- USB 3.0 × 4
- Wi-Fi
- Wi-Fi 6 (802.11ax), 2.4/5/6 GHz
Camera & audio
- Audio out
- Audio Port (3.5 mm headset jack) × 1
- Speaker output
- 2 × 2 W
- Speaker type
- Built-in Speakers
Physical & warranty
- In the box
- North America Power Cord, European Power Cord, Power Adapter – 180 W, Cable RJ-50 to DB-9, Quick Installation Guide, Cable tie, VESA mounting screw, 75 mm to 100 mm adapter and mounting screw
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C to 35 °C
- Power consumption
- 43 W (typical)
- Standby power
- < 0.5 W
- Dimensions
- 384.1 x 247.7 x 37.2 mm
- Weight
- 3.6 kg
- Shipping dimensions
- 481 x 197 x 345 mm
- VESA mount
- 75 × 75 mm (VESA)
- Warranty
- 3 years
- Shipping weight
- 6.52 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the Elo I-Series 3 support touch input?
Yes, the touchscreen uses PCAP (TouchPro®) technology supporting up to 10 touch points, enabling multi-user interaction for kiosks and signage.
What operating systems are compatible?
The media player supports Windows 10 IoT Enterprise LTSC 64-bit, Windows 11 IoT Enterprise LTSC 64-bit, and ChromeOS Flex for flexible deployment.
Can I upgrade the memory and storage?
Yes, the RAM is expandable to 64GB via two SO-DIMM DDR5 slots, and storage can be upgraded using M.2 PCIe NVMe SSDs.
Which countries can this be delivered to?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations via established logistics partners at competitive rates.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, units are delivered ready for local setup with remote guidance if needed.
What warranty is included with this product?
The device comes with a standard 3-year manufacturer warranty, with optional extended service coverage available through Smart-Boards after-sales support.
What optional peripherals can be attached?
Compatible peripherals include magnetic stripe readers, fingerprint scanners, 2D barcode scanners, customer displays, and EMV cradles via edge connectors.
