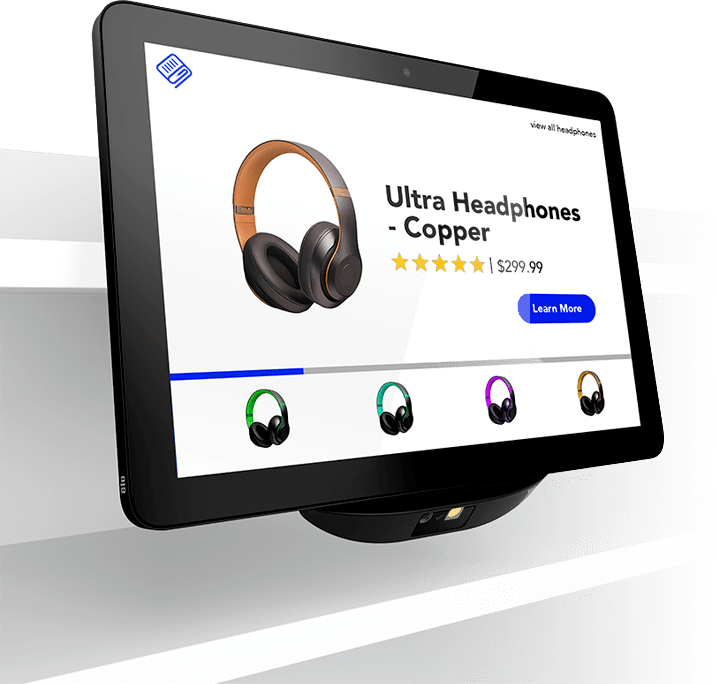

The Elo I-Series 10-inch Linux computer (E143205) is a compact digital signage media player designed for secure, flexible, and powerful content delivery. Featuring a 10.1-inch active matrix TFT LCD with 1280 x 800 resolution and Rockchip RK3399 processor, it supports Debian OS for robust enterprise applications. Smart-Boards supplies this unit across the GCC and Africa, offering expert guidance on multi-site rollouts and regional compliance.
This compact Linux-based device combines industrial-grade durability with modern connectivity, making it suitable for self-service kiosks, price checkers, and industrial controls. The 10.1-inch diagonal display delivers 300 nits of brightness with a 250-nit touch response, ensuring visibility in varied lighting conditions. Equipped with 4GB RAM and 32GB storage, it runs Debian 10 for stable, long-term operation. The integrated 5MP auto-focus webcam and dual 2W speakers enable interactive visitor management and clear audio feedback in public spaces.
Smart-Boards provides the Elo I-Series E143205 to organizations across the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and Africa. The unit ships with North American and European power cables, supporting global voltage standards (100-240 VAC). We offer live or virtual demonstrations to verify suitability for your specific environment. Delivery times depend on country and order size, confirmed on the quotation. On-site installation is available within the UAE, while other regions receive delivery-ready units with remote guidance for local setup.
Key features
- Display and Touch - The 10.1-inch active matrix TFT LCD offers 1280 x 800 resolution at 60Hz, paired with 10-point PCAP touch technology for reliable input.
- Processing Power - Powered by a Rockchip RK3399 processor with 4GB RAM and 32GB storage, it runs Debian 10 Linux for secure and efficient content management.
- Connectivity Options - Includes Gigabit Ethernet, USB 3.0, Type-C USB output, Micro SD slot, GPIO, and 802.11ac Wi-Fi with Bluetooth 5.0 for flexible integration.
- Integrated Camera - A built-in 5MP camera supports 1920x1080 resolution at 30fps with auto-focus, enabling facial recognition or video communication features.
- Mounting and Power - Supports VESA 75mm mounting and PoE via Elo device E413396, with a compact form factor of 252.9 x 169.0 x 22.1 mm.
Ideal for: Self-service kiosks, digital signage, and industrial controls for buyers across the GCC and Africa requiring reliable, Linux-based media players.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Included cables
- NA Power Cable, EU Power Cable, Power Brick
- SD card slot
- microSD card slot × 1
- Key features
- 10-point PCAP touch, 5 MP webcam, 1 analog microphone, microSD slot, Gigabit Ethernet, Wi-Fi 5, Bluetooth 5.0
Display
- Colour
- Black
- Backlight
- LED
- Brightness
- 300 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Refresh rate
- 60 Hz
- Resolution
- 1280 × 800
- Screen size
- 10 inch
- Viewing angle
- 170° (H) / 170° (V)
- Aspect ratio
- 16:10
- Contrast ratio
- 800:1
- Panel technology
- LCD
Touch
- Touch points
- 10 Points Multi Touch
- Touch response time
- 25 ms
- Touch technology
- Capacitive
System
- Processor
- Rockchip RK3399
- Operating system
- Linux Debian 10
- RAM
- 4 GB
- Storage
- 32 GB
Connectivity
- Bluetooth
- Bluetooth 5.0
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- USB-C
- Type C USB output × 1
- USB ports
- USB 3.0 × 1
- Wi-Fi
- Wi-Fi 5 (802.11ac)
Camera & audio
- Built-in camera
- Yes
- Camera
- 5 MP
- Speaker output
- 2W × 2
- Speaker type
- Built-in Speakers
- Microphone
- 1 analog mic
Physical & warranty
- In the box
- North American power cable, European power cable, 1 × power brick, quick install guide, screws for cable cover door
- Operating humidity
- 20%~80% RH
- Operating temperature
- 0 °C to 40 °C
- Power consumption
- 7.2 W (typical)
- Standby power
- 0.4 W
- Dimensions
- 252.9 × 169.0 × 22.1 mm
- Weight
- 0.8 kg
- Shipping dimensions
- 315 × 140 × 228 mm
- VESA mount
- 75 × 75 mm (VESA)
- Warranty
- 2 years
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver to?
We ship to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations through established logistics partners. Delivery times vary by location and order size, confirmed on your quotation.
Is on-site installation available outside the UAE?
On-site installation is available only within the UAE. For other countries, units are delivered ready for local setup, with remote guidance provided if needed.
What operating system does this model run?
It runs Linux Debian 10, providing a stable and secure platform for enterprise applications and custom software development.
Does it support Power over Ethernet?
Yes, PoE is supported via the Elo PoE Device (PN: E413396). Refer to the user guide for detailed configuration requirements.
What mounting options are compatible?
The unit supports VESA 75mm mounting. Optional wall mounts, tabletop stands, and shelf brackets are available separately for flexible deployment.
Can I add a fingerprint scanner or MSR?
Yes, optional peripherals include a Magnetic Stripe Reader (E001002) and Fingerprint Scanner (E134286) for secure transaction processing.
What warranty coverage is available?
Manufacturer warranty is included. Extended options range from 2 to 5 years, including coverage with Advanced Replacement (ADP), via Elo part numbers E819394 to E130719.
