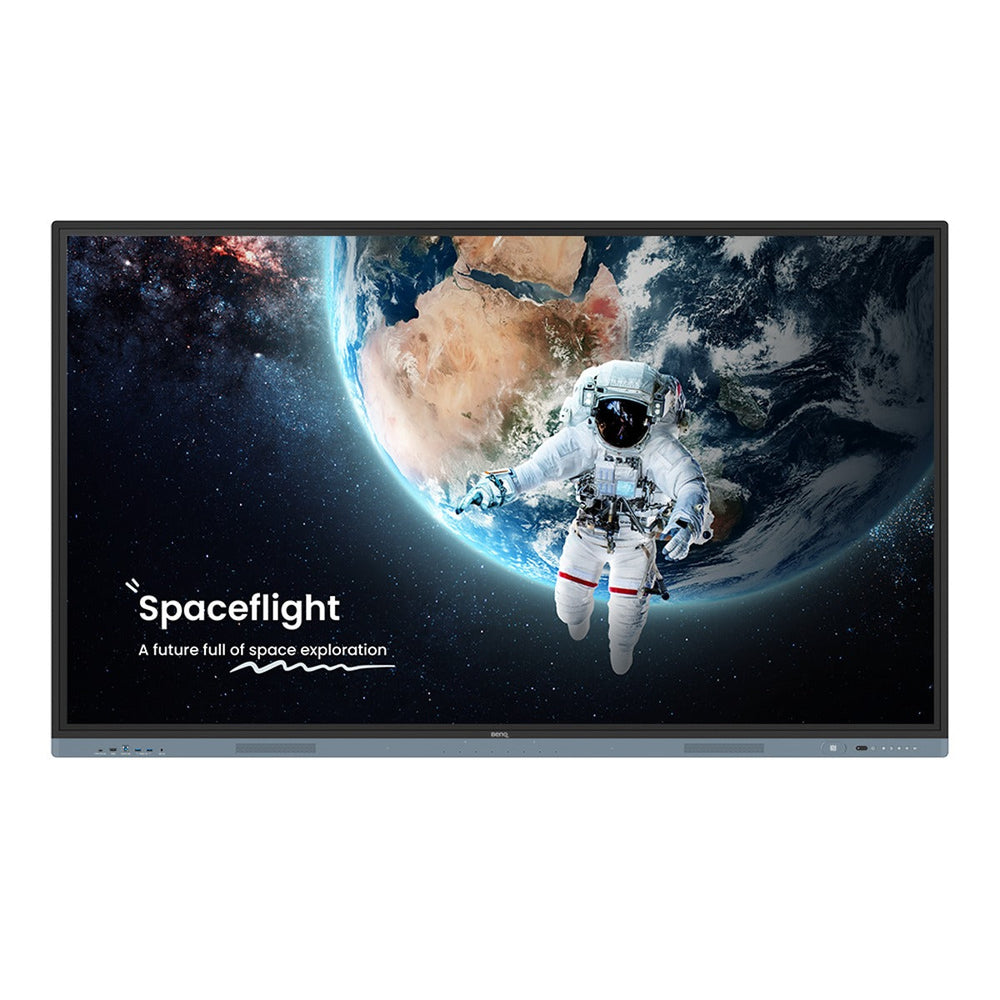

The BenQ Board Master RM8604 is an 86-inch UHD interactive flat panel designed for collaborative workspaces. It features 40-point IR touch, 8-microphone array, and Nano-ionic silver germ-resistant coating. Smart-Boards supplies this unit across the GCC and Africa with installation and support.
This 86-inch display delivers UHD 3840 × 2160 resolution on an IPS panel with 450 nits brightness and 1200:1 contrast. The high-precision IR touch technology supports up to 40 simultaneous inputs with less than 5 ms response time. EZWrite 6.0 whiteboarding and InstaShare 2 wireless sharing enable efficient group work in classrooms or boardrooms.
Connectivity includes DisplayPort, VGA, and multiple USB ports, with an optional Wi-Fi 6 module and Bluetooth 5.2. The built-in 8-microphone array captures audio up to 8 m, while dual 20 W speakers provide output. Managed via DMS and AMS, the panel operates on AC 100-240V, meeting ENERGY STAR standards for energy efficiency in multi-site deployments.
Key features
- UHD Interactive Display - An 86-inch IPS panel with UHD 3840 × 2160 resolution, 450 nits brightness, and 40-point high-precision IR touch for clear collaboration.
- Integrated Audio System - Equipped with an 8-microphone array capturing sound up to 8 m and dual 20 W speakers for clear communication in large rooms.
- Germ-Resistant Surface - Features Nano-ionic silver technology and a 9H tempered anti-glare screen to maintain hygiene and visibility in high-traffic educational and corporate environments.
- Comprehensive Connectivity - Includes DisplayPort, VGA, optical S/PDIF, RS-232, and an OPS slot, with optional Wi-Fi 6 and Bluetooth 5.2 for flexible device integration.
- Software Management - Supports EZWrite 6.0 for whiteboarding, InstaShare 2 for screen sharing, and DMS/AMS for centralized device and account management across sites.
Ideal for: Suitable for schools, universities, ministries, NGOs, and companies in the GCC and Africa requiring reliable interactive displays for training, conferencing, and digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- N/A
- Orientation
- Landscape
Display
- Backlight
- D-LED
- Blue light filter
- Yes
- Brightness
- 450 cd/m²
- Colour depth
- 10bit
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Surface protection
- 9H tempered
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Contrast ratio
- 1200:1
- Panel technology
- IPS
- Response time
- 8 ms
Touch
- Touch points
- up to 40
- Touch response time
- < 5 ms
- Touch technology
- High Precision IR
System
- Ambient light sensor
- Yes
- Processor
- Arm Cortex-A73 × 4 + A53 × 4
- Graphics
- Arm Mali-G52 MP8
- OPS slot
- Optional
- Operating system
- Android 13
- RAM
- 8 GB
- Sensors
- Ambient light sensor, IR sensor
- Storage
- 64 GB, 128 GB
- Operating hours
- 18 hours / 7 days
- Storage conditions
- -10°C ~ 60°C | 14°F ~ 140°F
Connectivity
- Bluetooth
- Bluetooth 5.2
- DisplayPort
- DP 1.2a × 1
- Ethernet (RJ45)
- RJ45 (1000 Mbps Port) × 1
- HDMI input
- HDMI In (HDMI 2.0) × 3
- HDMI output
- HDMI Out × 1
- NFC card reader
- Yes
- Serial port
- RS232 × 1
- Touch USB ports
- Touch-USB 3.0 × 3
- USB-C
- 1 × 3.0 (PD 65 W), 2 × 3.0
- USB ports
- USB 3.0 × 5, USB 2.0 × 2
- VGA input
- VGA × 1
- Wi-Fi
- Wi-Fi 6 (optional)
Camera & audio
- Audio in
- Audio In × 1
- Audio out
- Audio Out × 1
- Built-in camera
- Yes
- Camera
- N/A
- Speaker output
- 2 × 20 W (max)
- Speaker type
- Built-in Speakers
- Microphone
- 8-microphone array (range: up to 8 m | 26ft)
Physical & warranty
- In the box
- 1 × VGA (3 m | 9.8 ft), 1 × HDMI (3 m | 9.8 ft), 1 × USB-B for touch (3 m | 9.8 ft), 1 × USB-C (1.5 m | 4.9 ft)
- Operating humidity
- 20% ~ 80% RH non-condensing
- Operating temperature
- 0°C ~ 40°C | 32°F ~ 104°F
- Power consumption
- 168.9 W
- Standby power
- < 0.5 W
- Dimensions
- 1962.4 × 1174.9 × 87.1 mm (77.3 × 46.3 × 3.4 inch)
- Weight
- 65.2 kg
- Shipping dimensions
- 2095.0 × 1265.0 × 185.0 mm (82.5 × 49.8 × 7.3 inch)
- VESA mount
- VESA 800 × 600 mm ( 4 × M8 × 25L)
- Input voltage
- AC 100-240V 50/60Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does the BenQ RM8604 support wireless screen sharing?
Yes. The panel includes InstaShare 2 for wireless screen sharing. You can also add an optional Wi-Fi 6 module for enhanced connectivity.
Can this panel be delivered to countries outside the UAE?
Yes. Smart-Boards ships to GCC countries including KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African nations, through established logistics partners at low cost.
Is on-site installation available in the GCC?
On-site installation is available within the UAE only. For other GCC and African countries, the panel is delivered ready for local setup with remote guidance if needed.
What is the touch capability of this interactive panel?
The BenQ Board Master RM8604 supports up to 40 simultaneous touch points with a response time of less than 5 ms using high-precision IR technology.
Does the panel include a built-in camera?
No. The specifications do not list a built-in camera. It relies on its 8-microphone array and optional external peripherals for video conferencing needs.
What is the power consumption of the RM8604?
Typical power consumption is 168.9 W, with standby power under 0.5 W. It operates on AC 100-240V 50/60Hz and holds ENERGY STAR certification.
Does Smart-Boards offer demonstrations before purchase?
Yes. We offer live or virtual demonstrations for customers in the GCC and Africa, allowing you to verify features and suitability before committing to a quote.
