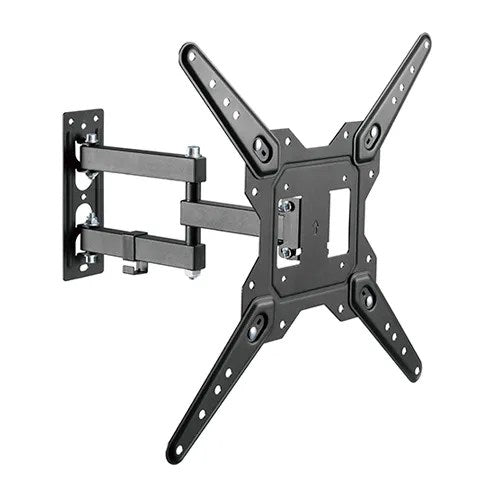

VSYS VS02E-443 Full-Motion Wall Mount for 23"–65" Displays, 30 kg. An articulating arm for rooms where one fixed viewing angle serves nobody well.
A screen on a fixed bracket points at one spot. That is fine for signage and hopeless for a huddle room where people sit on both sides of a table, a reception desk where staff need to turn the display towards a visitor, or a training room that gets rearranged every week. The VSYS VS02E-443 puts a 23" to 65" screen of up to 30 kg on a folding arm that swings 90 degrees either way. Smart-Boards supplies it across the GCC and Africa alongside our interactive panel and commercial display range, with quotations and low-cost delivery to your country.
Folded, the arm holds the panel 60 mm off the wall, close enough to read as a flush installation. Pulled out, it reaches 382 mm and swivels through plus 90 to minus 90 degrees, with a tilt of plus 3 to minus 10 degrees on top of that. It fixes to a single stud or a solid wall, the steel is powder coated and load tested to three times the 30 kg rating, and cable clips run the length of the arm so HDMI and power stay tidy through the whole sweep.
Key features
- Swivel of plus 90 to minus 90 degrees, so the screen can be turned to face either side of a room from a single wall position
- Extension from 60 mm folded to 382 mm out - flush when nobody needs it, reaching into the room when they do
- Tilt of plus 3 to minus 10 degrees layered on top of the swivel, for correcting glare once the arm is where you want it
- 30 kg rating, load tested to three times that figure, comfortably covering the weight of a 65" commercial panel
- VESA from 100x100 mm to 400x400 mm, matching the great majority of 23" to 65" screens and large monitors
- Fixes to a single stud or a solid wall, so it suits partition construction where a dual-stud plate will not land
- Cable clips along the arm keep HDMI and power leads controlled through the full range of movement
- Detachable display panel and a pre-installed direction indicator cut alignment time during installation
- Compact enough for a 23" monitor and rated for a 65" display, which is a wide bracket to specify from one line item
- Powder-coated steel construction for continuous daily adjustment rather than a set-and-forget fixing
| Brand | VSYS |
|---|---|
| Cable management | Cable clips along the arm, cabling follows the full range of motion |
| Display compatibility | 23 inch to 65 inch flat and curved panels |
| Extension range | 60 mm folded to 382 mm extended |
| In the box | Full-motion arm, wall plate, mounting hardware bag, direction indicator, installation guide |
| Material | Powder-coated steel |
| Max load | 30 kg (66 lbs) |
| Mounting type | Wall mount, full motion articulating arm, single screen |
| Swivel range | Plus 90 to minus 90 degrees |
|---|---|
| Testing | Strength tested to 3x the rated load |
| Tilt range | Plus 3 to minus 10 degrees |
| Vesa pattern | 100x100 mm to 400x400 mm |
| Wall distance | 60 mm when folded flat |
| Wall fixing | Single stud or solid wall |
| Model | VS02E-443 |
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
1. What is the VSYS VS02E-443?
It is a full-motion articulating wall mount for displays from 23" to 65" weighing up to 30 kg. The folding arm extends from 60 mm to 382 mm off the wall, swivels plus 90 to minus 90 degrees and tilts plus 3 to minus 10 degrees.
2. Is it compatible with my display?
Yes - if the screen is 23" to 65", weighs 30 kg or less and has a VESA pattern between 100x100 mm and 400x400 mm, it will fit. Tell us your display model when you request a quote and we will confirm the exact fit.
3. How far does the arm actually move?
It folds back to 60 mm and pulls out to 382 mm, and at full extension it swivels 90 degrees in either direction. In a normal meeting room that is enough to turn the screen from facing the table to facing a side wall or a doorway.
4. Does it need two studs?
No. It mounts to a single stud or a solid wall using the supplied plate and hardware, which is one of the reasons it works well in partitioned offices and fit-outs where stud positions are inconvenient. Verify the fixing substrate before installing at the top of the weight range.
5. What happens to the cables when the arm moves?
Cable clips run along the arm and hold the HDMI and power leads to it, so the loops travel with the movement instead of being pulled taut or dragged across the wall. Leave a service loop at the wall end when you first dress the cables.
6. Do you ship the VSYS VS02E-443 across the GCC and Africa?
Yes. Smart-Boards ships to every GCC and African country at the lowest possible cost through established logistics partners. On-site installation is available within the UAE; elsewhere the product arrives ready for local setup.
7. How do I get a price for the VSYS VS02E-443?
Pricing is on request. Send a quote request from the product page or email info@procure.ae and we return a procurement-ready quotation, including education and bulk pricing.
8. Is installation included?
Within the UAE, yes - our team can install and set up the unit. Outside the UAE we ship it ready for local installation and provide setup guidance on request. A direction indicator comes pre-installed to speed up alignment for a local fitter.
9. Is 30 kg enough for a 65-inch screen?
For almost all modern 65" panels, yes - most sit well under that figure. The bracket is load tested to three times its rating for margin. If you are mounting an older or unusually heavy 65" display, or an interactive panel, send us the weight and we will confirm or recommend a heavier model.
10. Can you supply large quantities for a rollout?
Yes - Smart-Boards handles multi-unit rollouts across the GCC and Africa, with volume pricing and procurement-ready documentation for tenders and education projects.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards - GCC & Africa supply, shipping and UAE installation.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
