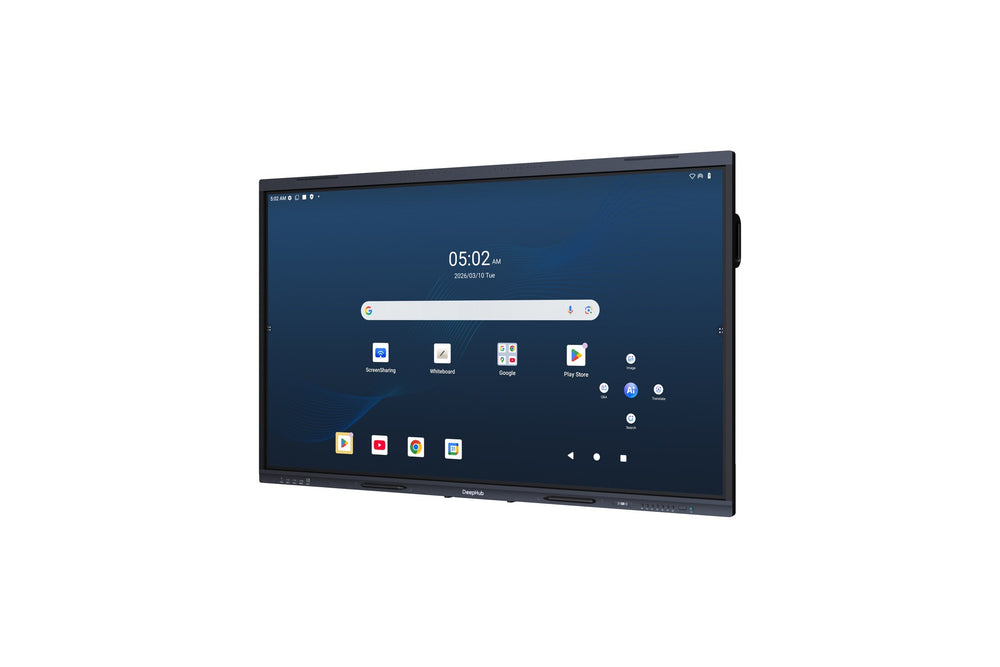

The Dahua LPH65-ST480-U-S2 is a 65-inch interactive flat panel featuring 4K UHD resolution, 64-point infrared touch, and built-in Android 15. Designed for classrooms and boardrooms, it supplies high-spec collaboration tools to buyers across the GCC and Africa through Smart-Boards.
This Dahua ST480 Series panel combines a 65-inch 3840 x 2160 display with 64-point infrared touch for precise interaction. The system runs on Android 15 with a quad-core processor, 8 GB RAM, and 128 GB storage, while supporting external Windows modules. Connectivity includes Wi-Fi 6, Bluetooth 5.4, and four 4K HDMI inputs alongside USB-C and VGA ports.
Integrated audio features a 16-array omnidirectional microphone with 12 m pickup range and four speakers for clear sound. The metal casing measures 116.2 mm deep and weighs 35 kg, fitting standard VESA 600 x 400 mounts. Smart-Boards, an authorised reseller, provides quote-only pricing and logistics support for multi-site deployments across the GCC and Africa.
Key features
- 4K Visual Clarity - The 65-inch DLED screen delivers 3840 x 2160 resolution with 400 nits brightness and 178° viewing angles for clear visibility in bright GCC classrooms.
- 64-Point Touch - Infrared touch technology supports 64 simultaneous points with ≤1.67 ms response time, enabling collaborative writing and navigation for multiple users.
- Android 15 System - Built-in Android 15 offers instant startup and access to apps, with 8 GB RAM and 128 GB storage ensuring smooth performance for educational and business software.
- Advanced Audio - A 16-array microphone array captures voice from up to 12 meters away, paired with four speakers (2x10W + 2x20W) for clear audio in large meeting rooms.
- Comprehensive Ports - Connectivity includes four HDMI inputs, one DP input, three USB-C ports, VGA, and a microSD slot for versatile integration with existing AV equipment.
- Included Accessories - The box contains two stylus pens, a remote control, wall-mount bracket, wireless plug-in module, and power cord for immediate setup.
Ideal for schools, universities, and corporate offices in the GCC and Africa requiring reliable 4K collaboration displays with built-in touch and audio.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- 1 × microSD card slot, up to 512 GB
- Model
- LPH65-ST480-U-S2
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 10-bit colour, 64-point infrared touch, 16-array microphone, 4 speakers, Android 15, Wi-Fi 6, Bluetooth 5.4
- Functions
- Pen writing, finger dragging, dual-colour pen, multi-touch, palm erasing, palm rejection
- Polar pattern
- Omnidirectional
Display
- Colour
- Black (left and right), Lunar Rock Gray (top and bottom)
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 65"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 90% NTSC
- Contrast ratio
- 1,500:1
- Frequency response
- 90 Hz–20 kHz
- Response time
- ≤8 ms
Touch
- Touch points
- 64-point multi-touch (Android and Windows)
- Touch resolution
- 32768 x 32768
- Touch response time
- ≤1.67 ms
- Touch technology
- Infrared
System
- Processor
- Quad-core A76 + quad-core A55
- Graphics
- Mali-G610 MC4
- Operating system
- Android 15
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Wi-Fi
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax), station and access point
- Ports
- HDMI In × 4 (3 at 4K@60 Hz), HDMI Out × 1 (4K@60 Hz), DP In × 1 (4K@60 Hz), VGA In × 1, USB 3.2 Gen1 Type-A × 4, USB-C × 3, USB 2.0 Type-A × 1, touch USB 2.0 Type-B × 4
Camera & audio
- Speaker output
- 2 × 10 W + 2 × 20 W
- Speaker configuration
- 2.2 channel, 4 speakers
- Microphone
- 16-array, omnidirectional
- Pickup range
- 0 to 12 m
Physical & warranty
- Material
- Metal casing, 3.2 mm anti-glare tempered glass
- Mounting type
- Wall mount or mobile bracket
- In the box
- Smart interactive whiteboard, 2 stylus pens, remote control, wall mount bracket, wireless plug-in module, power cord, wall-mount screw pack, quick start guide, legal and regulatory information
- Operating humidity
- 10% to 90% RH, non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 85 W (typical), 290 W (max)
- Standby power
- ≤0.5 W
- Dimensions
- 1446.6 x 913.3 x 116.2 mm
- Weight
- 35 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What operating systems does the Dahua LPH65-ST480-U-S2 support?
It runs Android 15 natively for standalone use. It also supports external Windows 7/8/10/11 systems via a separate module, allowing flexible OS integration for different institutional needs.
Which countries in the GCC and Africa receive delivery?
Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners to ensure cost-effective delivery for multi-site orders.
Is on-site installation available outside the UAE?
On-site installation is provided within the UAE only. For other countries, units are delivered ready for local setup, with remote guidance offered to assist local technicians during installation.
What is the touch technology and response time?
The panel uses infrared touch technology supporting 64 points simultaneously. The touch response time is ≤1.67 ms, ensuring precise and immediate feedback for writing and navigation.
Does it include a built-in microphone for conferencing?
Yes, it features a 16-array omnidirectional microphone with a pickup range of 0 to 12 meters, making it suitable for video conferencing and large classroom environments without external mics.
What power and voltage standards does it support?
It supports 100–240 V AC, 50/60 Hz, making it compatible with standard power grids across the GCC and Africa. Typical power consumption is 85 W with a maximum of 290 W.
What warranty and after-sales support is provided?
Smart-Boards provides the manufacturer warranty plus our own after-sales support. We are an authorised reseller and can confirm availability or recommend successors if models change.
