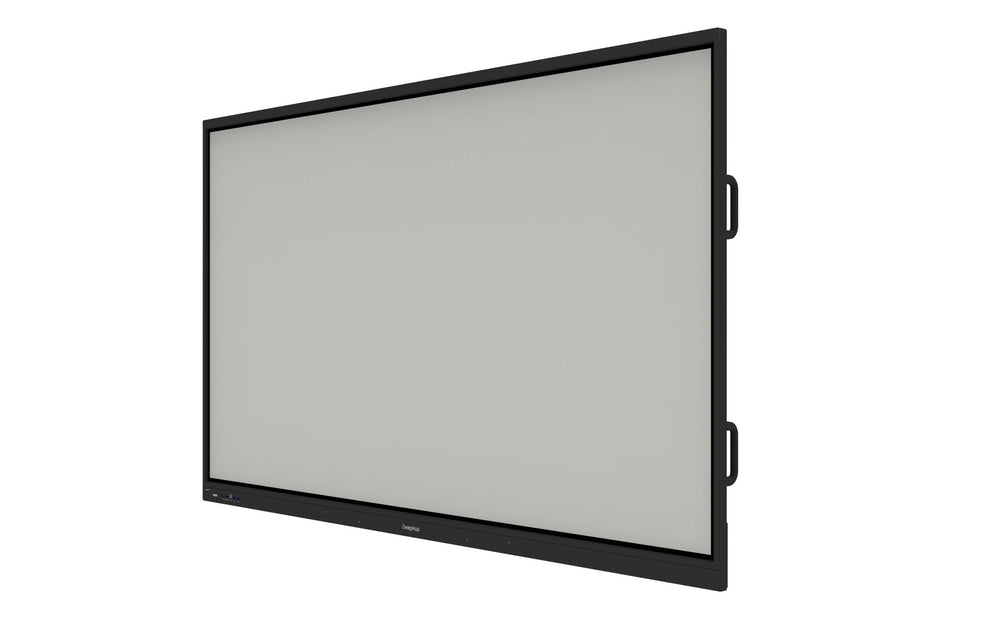

The Dahua LPH86-ST430 is an 86-inch interactive flat panel featuring 4K UHD resolution and 40-point infrared touch for collaborative environments. Supplied by Smart-Boards across the GCC and Africa, this Android 14-based unit supports multi-site deployments with integrated connectivity.
Designed for large conference rooms and lecture halls, this Dahua unit combines a 4K UHD display with robust 40-point multi-touch capability for seamless interaction. The built-in Android 14 operating system provides immediate usability without external computers, while the 8 GB RAM and 128 GB storage ensure smooth performance for educational and corporate applications.
Smart-Boards supplies this interactive panel to schools, universities, and government entities throughout the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain. The device supports 100–240 V AC input, making it adaptable to various regional power standards, and includes a wall-mount bracket for permanent installation or a mobile bracket for flexible deployment.
Key features
- 4K UHD Display - The 86-inch screen delivers 3840 x 2160 resolution with 400 nits brightness and 178-degree viewing angles for clear visibility in well-lit spaces.
- Multi-Touch Interface - Infrared touch technology supports 40 points on Windows and 32 points on Android, with a response time of ≤5 ms and ±1.5 mm accuracy.
- Android 14 OS - Built-in Android 14 with a quad-core processor, 8 GB RAM, and 128 GB storage enables standalone operation and quick access to applications.
- Comprehensive Connectivity - Equipped with three HDMI inputs, USB-C, RJ-45, RS-232, and Wi-Fi 6 for versatile device integration and network stability.
- Integrated Audio - Dual 20 W speakers provide 2.0 channel audio output, reducing the need for external sound systems in medium-sized meeting rooms.
- Included Accessories - The package includes two stylus pens, a remote control, power cord, and wall-mount screw pack for immediate setup upon delivery.
Ideal for classrooms, boardrooms, and training centers in the GCC and Africa requiring high-interaction displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LPH86-ST430
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 40-point and 32-point touch, infrared touch, 2 × 20 W speakers, Android 14, Wi-Fi, Bluetooth 5.4, IR receiver
Display
- Colour
- Black
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Frequency response
- 140 Hz–20 kHz
- Response time
- ≤8 ms
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 40-point (Windows) and 32-point (Android) multi-touch
- Touch resolution
- 32767 x 32767
- Touch response time
- ≤5 ms
- Touch technology
- Infrared
System
- Processor
- Quad-core Cortex-A73
- Graphics
- Mali-G52 MC1
- OPS slot
- 1 × OPS port
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Serial port
- 1 × RS-232
- Wi-Fi
- 802.11 a/b/g/n/ac/ax
- Ports
- HDMI In × 3 (4K@60 Hz), USB 3.2 Gen1 Type-A × 1, USB 2.0 Type-A × 3 (switchable), USB-C × 1, RJ-45 × 1, RS-232 × 1, MIC In, Line Out, optical port, touch USB Type-B × 2, OPS port × 1
Camera & audio
- Speaker output
- 2 × 20 W
- Speaker configuration
- 2.0 channel, 2 speakers
Physical & warranty
- Material
- Metal casing, 4 mm anti-glare tempered glass
- Mounting type
- Wall mount or mobile bracket
- In the box
- Smart interactive whiteboard, 2 stylus pens, remote control, wall mount bracket, power cord, wall-mount screw pack, 2 aerial rods, quick start guide, legal and regulatory information
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 237 W (typical), 370 W (max)
- Standby power
- ≤0.5 W
- Dimensions
- 1953.2 x 1179.8 x 116.7 mm
- Weight
- 59 kg
- VESA mount
- 800 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, EDLA, Energy Star
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver to for this model?
Yes, we supply this unit to the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries. Delivery time depends on the country and order size, confirmed on your quotation. We use established logistics partners to ensure safe transit across the region.
Is on-site installation available outside the UAE?
No, on-site installation is provided within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance is available to assist local technicians with wall mounting or bracket assembly to ensure correct placement.
Does this panel require a PC to function?
No, the Dahua LPH86-ST430 runs on built-in Android 14, allowing standalone operation. You can also connect external devices via HDMI or USB-C for Windows-based workflows. The OPS slot allows for optional PC integration if preferred.
What is the touch technology used?
The panel uses infrared touch technology supporting up to 40 points on Windows and 32 points on Android. The touch response time is ≤5 ms, and the accuracy is ±1.5 mm, ensuring precise interaction for writing and navigation.
Does it support dual operating systems?
Yes, the unit features a built-in Android 14 OS. It also supports Windows 7/8/10/11 when connected via external modules or the OPS slot. This flexibility allows users to switch between Android apps and Windows software as needed.
What is included in the box?
The package contains the smart interactive whiteboard, two stylus pens, a remote control, wall mount bracket, power cord, wall-mount screw pack, two aerial rods, and a quick start guide. Legal and regulatory information is also included.
Can this panel be mounted on a mobile stand?
Yes, while the box includes a wall mount bracket, the panel supports a mobile bracket option. The VESA mount pattern is 800 x 400 mm, allowing compatibility with various standard AV trolleys for flexible room configurations.
