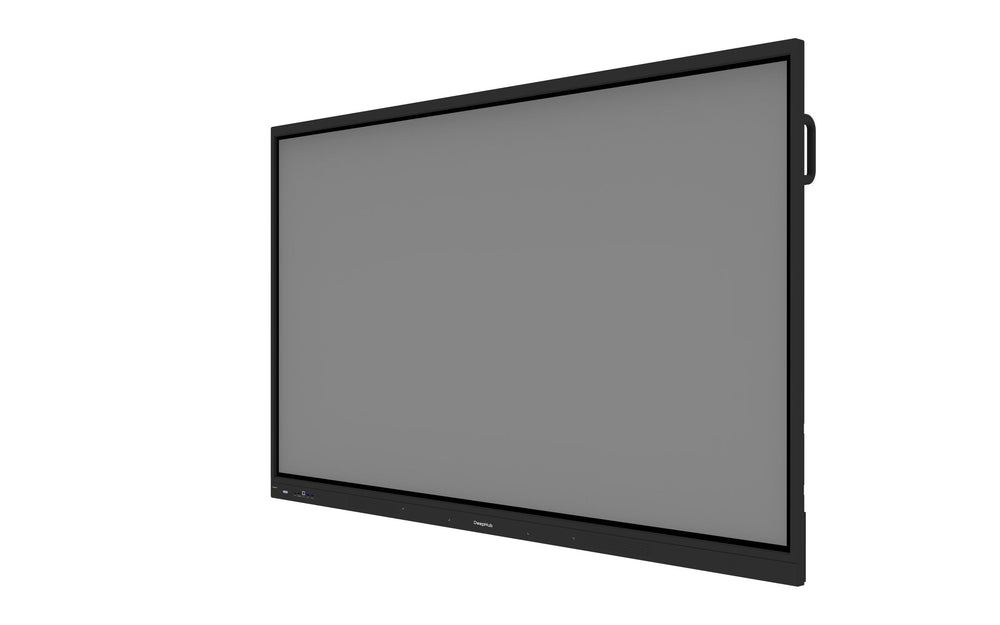

The Dahua ST430 Series LPH75-ST430 is a 75-inch interactive flat panel featuring 4K UHD resolution and Android 14. Designed for collaborative environments, it supports multi-point touch and includes built-in connectivity. Smart-Boards supplies this unit to educational and corporate clients across the GCC and Africa.
This 75-inch display delivers 4K UHD visuals with a 400-nit brightness level and 178-degree viewing angles for clear visibility in bright GCC classrooms. The integrated Android 14 operating system runs on a quad-core processor with 8 GB RAM and 128 GB storage, enabling smooth navigation without external devices. Infrared touch technology provides 40-point input for Windows compatibility and 32-point for Android, allowing multiple users to collaborate simultaneously. The metal casing with 4 mm anti-glare tempered glass ensures durability in high-traffic institutional settings.
Connectivity is comprehensive, featuring three HDMI inputs, USB-C, and an OPS slot for flexible integration with existing AV infrastructure. Built-in 2.0 channel speakers provide 40 W of audio output, reducing the need for external sound systems. Wi-Fi 6 and Bluetooth 5.4 support wireless casting and peripheral pairing, while the RS-232 port allows for centralized management in large deployments. The unit weighs 47.5 kg and supports both wall mounting and mobile brackets, offering installation flexibility for diverse facility requirements.
Key features
- High-Definition Display - The screen offers 3840 x 2160 resolution with 400 nits brightness and 72% NTSC color gamut for accurate content presentation.
- Multi-Touch Interaction - Infrared touch technology supports 40-point input on Windows and 32-point on Android with a response time of ≤5 ms.
- Android 14 Platform - Built-in Android 14 OS with a quad-core Cortex-A73 processor, 8 GB RAM, and 128 GB storage for standalone operation.
- Comprehensive I/O Ports - Includes three HDMI 2.1 inputs, USB-C, RJ-45, RS-232, and an OPS slot for versatile device connectivity and expansion.
- Integrated Audio System - Two 20 W speakers deliver 40 W total output with a frequency response of 140 Hz to 20 kHz for clear audio playback.
- Wireless Connectivity - Supports Wi-Fi 6 (802.11ax) and Bluetooth 5.4 for stable wireless casting and peripheral pairing in crowded networks.
Ideal for: Classrooms, boardrooms, and training centers requiring collaborative tools, suitable for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LPH75-ST430
- Product type
- Interactive Flat Panel
- Key features
- 4K UHD, 40-point and 32-point touch, infrared touch, 2 × 20 W speakers, Android 14, Wi-Fi, Bluetooth 5.4, IR receiver
Display
- Colour
- Black
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 72% NTSC
- Frequency response
- 140 Hz–20 kHz
- Response time
- ≤8 ms
Touch
- Touch accuracy
- ±1.5 mm
- Touch points
- 40-point (Windows) and 32-point (Android) multi-touch
- Touch resolution
- 32767 x 32767
- Touch response time
- ≤5 ms
- Touch technology
- Infrared
System
- Processor
- Quad-core Cortex-A73
- Graphics
- Mali-G52 MC1
- OPS slot
- 1 × OPS port
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Serial port
- 1 × RS-232
- Wi-Fi
- 802.11 a/b/g/n/ac/ax
- Ports
- HDMI In × 3 (4K@60 Hz), USB 3.2 Gen1 Type-A × 1, USB 2.0 Type-A × 3 (switchable), USB-C × 1, RJ-45 × 1, RS-232 × 1, MIC In, Line Out, optical port, touch USB Type-B × 2, OPS port × 1
Camera & audio
- Speaker output
- 2 × 20 W
- Speaker configuration
- 2.0 channel, 2 speakers
Physical & warranty
- Material
- Metal casing, 4 mm anti-glare tempered glass
- Mounting type
- Wall mount or mobile bracket
- In the box
- Smart interactive whiteboard, 2 stylus pens, remote control, wall mount bracket, power cord, wall-mount screw pack, 2 aerial rods, quick start guide, legal and regulatory information
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 178 W (typical), 280 W (max)
- Standby power
- ≤0.5 W
- Dimensions
- 1707.5 x 1041.9 x 116.7 mm
- Weight
- 47.5 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, EDLA, Energy Star
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the operating system of this interactive flat panel?
It runs on Android 14 with a quad-core processor, 8 GB RAM, and 128 GB storage. It also supports Windows 7/8/10/11 via an external OPS module.
Does it support multi-touch for group collaboration?
Yes, it features 40-point infrared touch for Windows and 32-point multi-touch for Android, allowing multiple users to interact with the screen simultaneously.
Which countries in the GCC and Africa do you ship to?
We supply to UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and various African countries through established logistics partners to ensure reliable delivery.
Is on-site installation available outside the UAE?
No, on-site installation is UAE-only. Other countries receive delivery ready for local setup with remote guidance if needed to assist with the process.
What is the power consumption of the 75-inch panel?
The typical power consumption is 178 W, with a maximum of 280 W. Standby power is ≤0.5 W, supporting energy-efficient operation in schools.
Does the package include a wall mount bracket?
Yes, the box includes a wall mount bracket, power cord, screw pack, two aerial rods, and two stylus pens for immediate setup and use.
What certifications does this Dahua model hold?
The unit holds CE, EDLA, and Energy Star certifications, ensuring compliance with international standards for safety and energy efficiency in educational settings.
