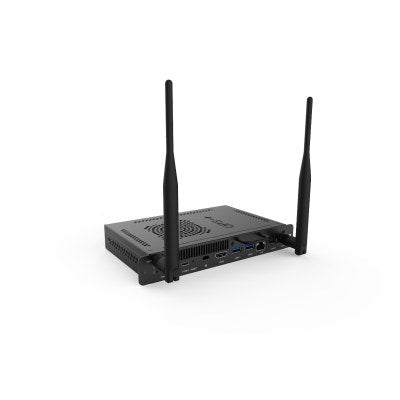

The Dahua SP-PI7B82IS is an Open Pluggable Specification (OPS) computing module designed for interactive flat panels. It features an Intel Tiger Lake-H i7-11390H processor, 8 GB of memory, and 256 GB storage. Smart-Boards supplies this unit across the GCC and Africa.
This OPS module integrates directly into compatible interactive displays to provide full Windows 11 Pro functionality. Powered by an Intel i7-11390H processor with 4 cores and 8 threads, it handles demanding educational and corporate tasks efficiently. The unit includes 8 GB of memory and a 256 GB disk for reliable performance in multi-site deployments.
Connectivity options include an RJ-45 Gigabit port, USB 3.1 Type-C, and HDMI 1.4 output for versatile integration. The compact SGCC casing measures 119 mm × 180 mm × 30 mm, ensuring it fits standard OPS slots. Smart-Boards provides this hardware with manufacturer warranty and after-sales support for buyers in the GCC and Africa.
Key features
- Processing Power - Intel Tiger Lake-H i7-11390H processor with 3.4 GHz base frequency and 12 MB Level 3 cache.
- Memory and Storage - 8 GB of RAM and a 256 GB disk for efficient data handling and application loading.
- Operating System - Pre-activated Windows 11 Pro for immediate use in educational and corporate environments.
- Connectivity - Includes RJ-45 10/100/1000 Mbps, USB 3.1 Type-C, HDMI 1.4, and integrated Wi-Fi/BT via M.2 module.
- Physical Dimensions - Compact 119 mm × 180 mm × 30 mm SGCC casing weighs 0.75 kg for easy installation.
Ideal for: Interactive flat panels requiring Windows 11 Pro computing, suitable for schools and offices across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- SP-PI7B82IS(Win 11 Pro Activated)
- Controls
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Cores
- 4
Display
- Colour
- Black
System
- Processor
- Intel® Tiger lake-H i7-11390H, 3.4 GHz
- Graphics
- Intel® Iris® Xe Graphics
- OPS slot
- 1 × 80 pin JAE port
- Operating system
- Windows 11
- RAM
- 8 GB
- Storage
- 256 GB
- Storage conditions
- –20 °C to +70 °C (–4 °F to +158 °F)
Connectivity
- Ethernet (RJ45)
- 1 × RJ-45 (10/100/1000 Mbps) port
- USB-C
- 1 × USB 3.1 Type-C
- USB ports
- 2 × USB 3.1 Type-A, 1 × USB 2.0 Type-A
- Wi-Fi
- 1 × M.2 2230 PCIE/USB 2.0, WIFI/BT Module
- Ports
- 1 × HDMI 1.4 out, Max.4K/30 Hz
Physical & warranty
- Material
- SGCC
- In the box
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
- Operating humidity
- 10%–90% (RH), non-condensing
- Operating temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Power consumption
- 1 × DC IN
- Standby power
- 0.8 W
- Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Weight
- 0.75 kg (1.65 lb)
- Shipping dimensions
- 254 mm × 196 mm × 77mm (10.00" × 7.72" × 3.03")
- Shipping weight
- 0.95 kg (2.09 lb)
- Input voltage
- 12–19 VDC
- Certifications
- CE
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this OPS module include Windows 11 Pro?
Yes, the Dahua SP-PI7B82IS comes with Windows 11 Pro activated out of the box, ready for immediate deployment in your interactive display system.
What is the processor specification?
It uses an Intel Tiger Lake-H i7-11390H processor with a 3.4 GHz frequency, 4 cores, 8 threads, and 12 MB Level 3 cache.
Which countries can you deliver to?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Is on-site installation available outside the UAE?
No, on-site installation is only within the UAE. Other regions receive the unit ready for local setup with remote guidance if needed.
What ports are available on the module?
It features 1 × RJ-45, 2 × USB 3.1 Type-A, 1 × USB 2.0 Type-A, 1 × USB 3.1 Type-C, and 1 × HDMI 1.4.
What is included in the packaging?
The box contains the OPS module, 2 × antennas, 2 × M3 screws, 1 × desiccant, and 1 × user's manual.
What is the operating temperature range?
The module operates between –5 °C to +45 °C with 10%–90% non-condensing humidity, suitable for standard indoor environments.
