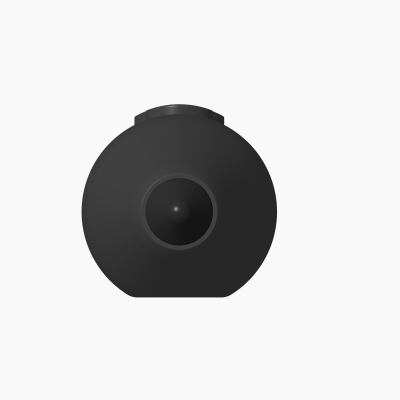

The Dahua PKP-IP1A Smart Pen is a wireless input accessory for interactive flat panels, designed for precise writing and navigation. It features a 1.6 mm pen point and 250 Kbps transmission rate via 2.4 GHz RF. Smart-Boards supplies this device to schools and offices across the GCC and Africa.
This accessory enables accurate interaction with compatible display systems using private 2.4G wireless protocol. The pen operates within a communication distance of up to 15 metres, providing reliable connectivity in classroom or meeting room environments. It supports Android and Windows 10 operating systems, ensuring broad compatibility with existing AV infrastructure. The device is powered via USB bus supply, operating at 3.3V–4.2V, and includes a built-in 150 mAh lithium battery for sustained daily use without constant charging.
Smart-Boards, an authorised reseller, provides the Dahua PKP-IP1A to educational institutions and corporate clients across the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and Africa. We offer live or virtual demonstrations before purchase to verify suitability for your specific interactive panel models. Pricing is by quotation, with options for government and bulk orders. Delivery times depend on country and order size, confirmed on the quote. On-site installation is available within the UAE; other regions receive delivery ready for local setup with remote guidance.
Key features
- Wireless Connectivity - Uses 2.4 GHz RF private protocol with a transmission rate of 250 Kbps for responsive input.
- Precision Tip - Features a 1.6 mm pen point for accurate writing and drawing on compatible interactive surfaces.
- Power Options - Charges via contact post or Type-C port, powered by a built-in 150 mAh lithium battery.
- Compact Design - Dimensions of 185 mm × 20 mm × 20.2 mm and a net weight of 45 g for easy handling.
- System Compatibility - Compatible with Android, Windows 10, and later systems via USB 2.0 or 3.0 ports.
- Included Accessories - Package includes the smart pen, charging post, charging cable, and user manual.
Ideal for: Writing and navigation on interactive flat panels in schools, universities, and corporate meeting rooms across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- PKP-IP1A
- Product type
- Stylus / Pen
- Brand
- Dahua
- Key features
- 2.4 GHz wireless, pressure sensing (4096 levels), page up/down, zoom, laser, spotlight, multiple colors, rechargeable, USB receiver, compatible with Android and Windows 10+
- Battery capacity
- 150 mAh (lithium)
- Compatibility
- Dahua DeepHub whiteboard; 1.6 mm tip, 2.4 GHz RF, 4096 pressure levels, 150mAh battery, USB-C charge, up to 15m range
System
- Operating range
- Up to 15 m
Physical & warranty
- In the box
- Smart pen, charging pen post, charging cable, user's manual
- Operating temperature
- -30 to 55 °C
- Dimensions
- 185 mm × 20 mm × 20.2 mm
- Weight
- 45 g
- Shipping dimensions
- 189 mm × 64 mm × 13 mm
- Shipping weight
- 119 g
- Certifications
- CE
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the operating range of the Dahua PKP-IP1A?
The communication range reaches up to 15 metres, allowing users to write or navigate from a distance without needing to be directly adjacent to the display screen.
Which operating systems are supported?
The pen supports Android and Windows 10 operating systems and later versions, ensuring compatibility with most modern interactive display setups.
How is the pen charged?
It charges by contact using the included charging pen post or through the Type-C port, utilizing a built-in 150 mAh lithium battery for power.
Which countries can receive this product?
Smart-Boards ships to GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners to ensure cost-effective delivery.
Is on-site installation provided?
On-site installation is available within the UAE only. For other countries, products are delivered ready for local setup, with remote guidance provided if needed.
What is included in the packaging?
The packing list contains one smart pen, one charging pen post, one charging cable, and one user manual.
What are the physical dimensions?
The product dimensions are 185 mm × 20 mm × 20.2 mm, with a net weight of 45 g, making it lightweight and portable for daily use.
