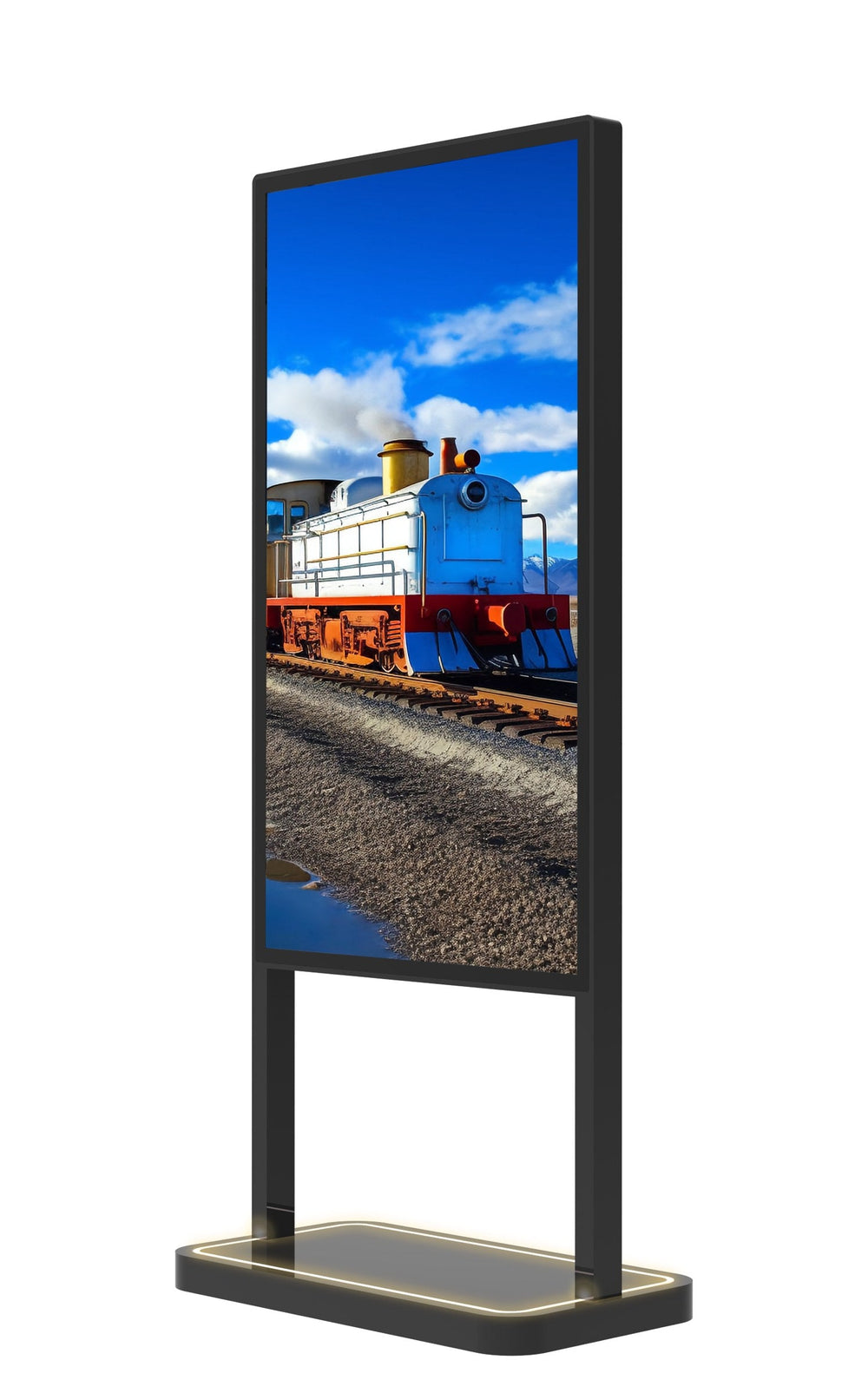

The Dahua LDV55-PAI400TL is a 55-inch vertical digital signage kiosk designed for continuous public display. Featuring 4K UHD resolution, 700-nit brightness, and Android 11, it supports 24/7 operation and remote management. Smart-Boards supplies this industrial-grade unit across the GCC and Africa.
This portrait-oriented kiosk combines a 55-inch 4K UHD LCD panel with an industrial-grade chassis to withstand high-traffic environments. The screen delivers 700 nits of typical brightness and a 178° viewing angle, ensuring content remains visible in bright lobbies or outdoor-adjacent corridors. Built-in 2 × 5 W speakers provide audio for announcements or media, while the Android 11 operating system enables local content playback without external players. The device consumes 220 W at maximum load and weighs 57.6 kg, requiring stable floor placement.
Smart-Boards distributes the LDV55-PAI400TL to institutions and enterprises across the GCC and Africa, offering verification of compatibility with local power standards (100–240 V AC). The unit includes a floor-standing base, remote control, and user manual for immediate setup. For multi-site deployments, the B/S architecture allows centralized program management by time and location. Delivery times depend on the destination country and order size, confirmed during the quotation process. On-site installation is available within the UAE; other regions receive the unit ready for local setup with remote guidance.
Key features
- 4K Industrial Panel - The 55-inch screen offers 3840 x 2160 resolution with 700 nits brightness and 10-bit color depth for clear, vibrant visuals in 24-hour operation.
- Android 11 System - Powered by a quad-core A55 processor, 4 GB RAM, and 32 GB storage, it runs Android 11 for smooth multimedia playback and app execution.
- Vertical Orientation - Designed in a 9:16 aspect ratio with floor-standing base mounting, it fits narrow spaces in lobbies, corridors, and reception areas effectively.
- Remote Management - Intelligent split-screen and B/S architecture enable unified platform control, scheduling by time/location, and operation report generation for admins.
- Connectivity Options - Includes HDMI 2.1, RJ-45 Ethernet, USB 2.0/3.0, and TF card slot, with optional external Wi-Fi module for flexible network integration.
Ideal for corporate lobbies, government service centers, hospitals, and educational institutions across the GCC and Africa requiring durable, always-on vertical displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LDV55-PAI400TL
- Product type
- Vertical Digital Signage Kiosk
- Key features
- Industrial-grade panel, 24-hour operation, Android 11, 4K decoding, intelligent split screen, remote platform management, time and location scheduling, operation reports
- Orientation
- Portrait
Display
- Colour
- Black
- Brightness
- 700 cd/m²
- Colour depth
- 10-bit (8-bit + FRC)
- Resolution
- 4K UHD
- Screen size
- 55"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 9:16
- Response time
- 8 ms
Touch
- Touch points
- 10-point multi-touch
- Touch technology
- PCAP
System
- Processor
- Quad-core A55, 1.92 GHz
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
Connectivity
- Ethernet (RJ45)
- RJ-45 10/100/1000 Mbps
- HDMI input
- HDMI 2.1 × 1 (4K @ 60 Hz)
- USB ports
- USB 2.0 × 1, USB 3.0 × 1
- Wi-Fi
- Optional external Wi-Fi module
- Ports
- HDMI In × 1, RJ-45 Ethernet × 1, USB 2.0 × 1, USB 3.0 × 1, TF card slot × 1, 3.5 mm audio out × 1
Camera & audio
- Speaker output
- 2 × 5 W built-in speakers
Physical & warranty
- Mounting type
- Floor-standing with base
- In the box
- Base, remote control, power cord, user's manual
- Operating humidity
- 10% to 85% RH, non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 220 W (maximum)
- Standby power
- 0.5 W (maximum)
- Dimensions
- 775 x 1900 x 460 mm (W x H x D)
- Weight
- 57.6 kg (net)
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE EMC, CE LVD, CE ERP
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can Smart-Boards supply this kiosk to countries outside the UAE?
Yes, Smart-Boards ships to all GCC countries and African nations through established logistics partners. Delivery times vary by country and order size, and are confirmed on the quotation. The unit arrives ready for local setup with remote guidance if on-site installation is not available in that region.
Is on-site installation included for deliveries outside the UAE?
No, on-site installation is provided within the UAE only. For other countries, the kiosk is delivered with the base and necessary hardware for local setup. Smart-Boards offers remote guidance to assist local teams with assembly and initial configuration.
What is the operating temperature range for this kiosk?
The LDV55-PAI400TL operates within 0 to 40 °C and 10% to 85% RH (non-condensing). It is designed for indoor environments and should not be exposed to direct sunlight or extreme temperatures outside this range.
Does the kiosk support 24-hour continuous operation?
Yes, the industrial-grade panel is designed for 24-hour daily operation. It includes standby power consumption of 0.5 W and maximum power consumption of 220 W, ensuring reliable performance for digital signage applications.
What ports are available for input and connectivity?
The device includes one HDMI 2.1 input, one RJ-45 Ethernet port, one USB 2.0, one USB 3.0, a TF card slot, and a 3.5 mm audio out. An optional external Wi-Fi module can be added for wireless connectivity.
How is content managed across multiple devices?
The kiosk uses B/S architecture for unified platform management. Administrators can manage programs by time and location, adjust split-screen layouts, and generate operation reports remotely, making it suitable for multi-site deployments across the GCC and Africa.
What is included in the box upon delivery?
The package includes the kiosk unit, a floor-standing base, a remote control, a power cord, and a user's manual. All necessary hardware for basic setup is provided, though local tools may be required for final assembly.
