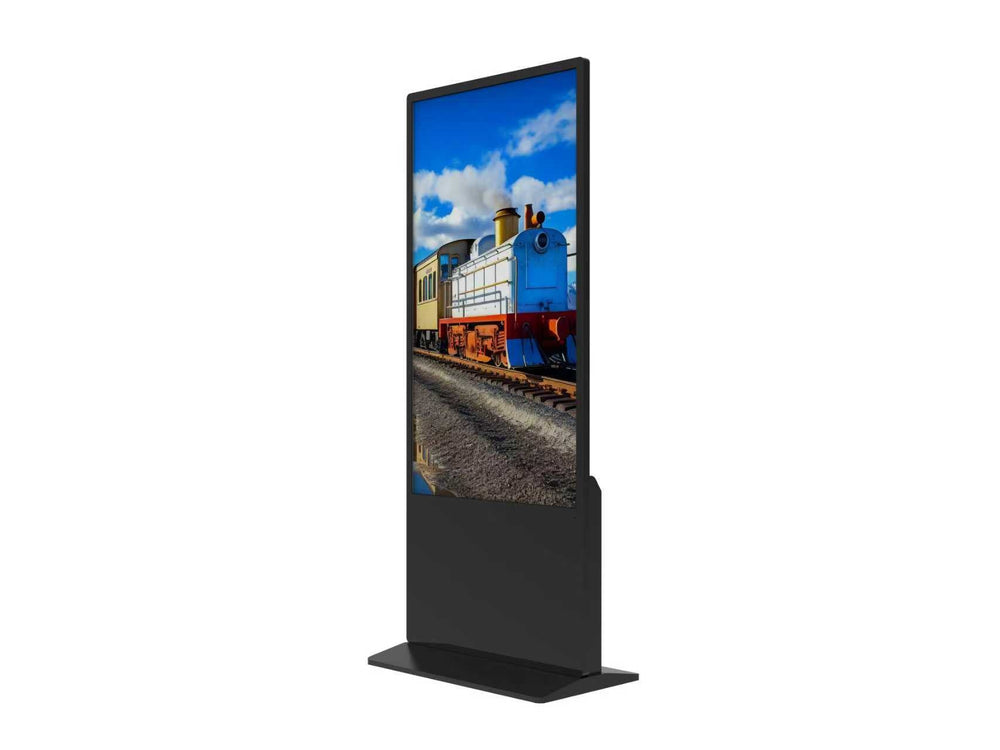

The Dahua LDV65-HAI400L-M is a 65-inch vertical LCD digital signage kiosk designed for continuous public display. It features a 4K IPS panel, Android 11 operating system, and industrial-grade components for 24/7 reliability. Smart-Boards supplies this unit across the GCC and Africa, offering logistics support and remote guidance for local setup.
This vertical display utilises an IPS LCD panel with a 9:16 aspect ratio, delivering 3840 × 2160 resolution at 500 cd/m² brightness. The device operates on Android 11.0 with a quad-core 1.92 GHz CPU, 4 GB RAM, and 32 GB ROM. It supports B/S architecture for time and location-based program management, allowing remote control via a unified platform. The metal casing ensures durability in high-traffic environments.
Connections include HDMI 2.1 input, RJ-45 Ethernet, USB 2.0/3.0 ports, and a TF card slot for media playback. The built-in Android system decodes H.265, H.264, and VP9 video formats up to 4K. Integrated speakers provide audio output, while an IR receiver enables external control. The unit consumes ≤140 W during operation and includes a base for stable vertical installation. Smart-Boards provides quote-only pricing with education and government tender options.
Key features
- Industrial Durability - The device is built for 24/7 operation with an industrial-grade panel and metal casing.
- 4K Display Output - An IPS LCD panel delivers 3840 × 2160 resolution with 178° viewing angles and 500 cd/m² brightness.
- Android Management - Android 11.0 OS with B/S architecture allows remote program management and operation reports.
- Media Connectivity - Includes HDMI 2.1, Ethernet, USB ports, and a TF card slot for versatile content input.
- Smart-Split Display - Intelligent split-screen capabilities allow free adjustment of page layouts for various scenes.
- Vertical Installation - Designed for portrait mode with a dedicated base for stable kiosk setup.
Ideal for: Suitable for airport wayfinding, corporate lobbies, and educational directories for buyers across the GCC and Africa requiring reliable vertical digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LDV65-HAI400L-M
- Orientation
- Portrait
Display
- Colour
- Black
- Backlight
- ELED
- Brightness
- 500 cd/m²
- Colour depth
- 10 bit (8 bit + FRC), 1.07B colors
- Resolution
- 2160 (H) × 3840 (V)
- Screen size
- 65"
- Surface protection
- Haze 1%
- Viewing angle
- 178° (H); 178° (V)
- Aspect ratio
- 9: 16
- Contrast ratio
- IPS 1200:1(typ.)
- Panel technology
- IPS
- Response time
- 8 ms (typ.)
System
- Processor
- 4 cores A55, 1.92 GHZ
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Storage conditions
- –20 °C to +60 °C (–4 °F to +140 °F)
Connectivity
- Bluetooth
- NO
- Ethernet (RJ45)
- 1 × RJ–45 10/100/1000 Mbps self-adaptive Ethernet; port
- Wi-Fi
- Optional (External Wi-Fi module)
- Inputs
- 1 × HDMI 2.1 (4K @60Hz)
- Outputs
- NO
- Ports
- 1 × USB 2.0 ports (type A); 1 × USB 3.0 ports (type A); 1 × TF card slot, up to 128 GB
Camera & audio
- Speaker output
- 2 × 5 W
- Audio
- 1 × 3.5 mm jack output
- Audio codecs
- MPEG-3, WMA, WAV
Physical & warranty
- Material
- Metal casing
- Mounting type
- Vertical
- In the box
- Base, user's manual, power cord, legal and regulatory; information, remote control
- Operating humidity
- 10%–85% (RH), non-condensing
- Operating temperature
- 0 °C to +40 °C (+32 °F to +104 °F) (avoid direct sunlight)
- Power consumption
- ≤ 140 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 2050 mm × 861 mm × 500 mm (80.71" × 33.91" ×; 19.69")
- Weight
- 68kg (149.91 lb)
- Shipping dimensions
- 2154 mm x 234 mm x 1044 mm (84.8" × 9.21" ×; 41.1”)
- Shipping weight
- 83.7kg (184.50 lb)
- Input voltage
- 100–240 VAC, 50/60 Hz
- Certifications
- CE EMC, CE LVD, CE ERP
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Can this vertical signage be delivered to African countries?
Yes, Smart-Boards ships to GCC and African countries through established logistics partners. Delivery time depends on the country and order size, which is confirmed on the quotation. The unit arrives ready for local setup, with remote guidance available if needed.
Is on-site installation included for orders outside the UAE?
On-site installation is available within the UAE only. For other countries, the unit is delivered ready for local setup. Remote guidance is provided to assist with the installation process if required.
What is the operating temperature range?
The operating temperature range is 0 °C to +40 °C. It is recommended to avoid direct sunlight to maintain optimal performance and panel longevity.
Does it support wireless connectivity?
The device includes a standard RJ-45 Ethernet port. An external Wi-Fi module is optional and must be sourced separately. Bluetooth is not supported.
What accessories are included in the box?
The package includes a base for vertical mounting, a user's manual, a power cord, a remote control, and legal/regulatory information documents.
Is this product suitable for 24/7 operation?
Yes, the LDV65-HAI400L-M is designed with an industrial-grade panel intended for 24/7 continuous operation in public or commercial environments.
How is pricing structured for bulk orders?
Pricing is by quotation only. Smart-Boards offers specific options for education, government, and bulk tender projects. Contact the team for a tailored quote.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
