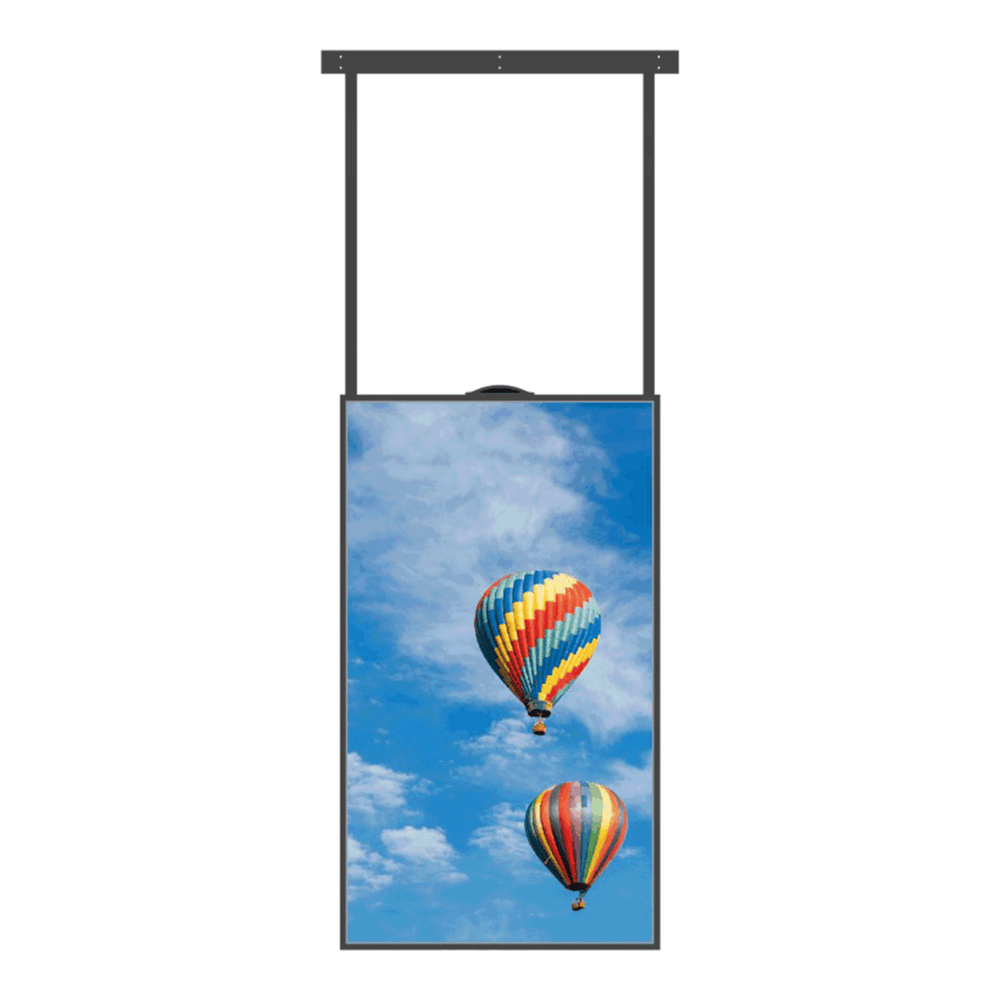

The Dahua LDH55-WAI200L is a 55-inch vertical digital signage display built for industrial environments. It features a 3000 cd/m² IPS panel and Android 11 OS for reliable content management. Smart-Boards supplies this unit across the GCC and Africa with professional logistics support.
This industrial-grade display is engineered for continuous operation, supporting 24/7 use in demanding settings. The 55-inch IPS panel delivers high brightness of 3000 cd/m² with a 9:16 aspect ratio, ensuring clear visibility in well-lit areas. It runs on Android 11.0 with a quad-core processor, 4 GB RAM, and 32 GB ROM. The system supports split-screen layouts and remote management via B/S architecture, allowing administrators to control content by time and location.
Smart-Boards supplies the Dahua LDH55-WAI200L to educational, government, and corporate clients across the GCC and Africa. The unit ships via established logistics partners at competitive rates. On-site installation is available within the UAE; other regions receive ready-to-setup units with remote guidance. We offer live or virtual demonstrations before purchase and provide manufacturer warranty plus after-sales support.
Key features
- Industrial Durability - Designed for 24/7 continuous operation with an industrial-grade panel and metal casing.
- High Brightness Display - Features a 3000 cd/m² IPS panel with 1080p resolution and 178° viewing angles for clear visibility.
- Android Content Management - Runs Android 11.0 with B/S architecture for remote program release and multi-level permission control.
- Vertical Design - Default portrait orientation (9:16) with wall mount VESA 400 x 400mm compatibility.
- Connectivity Options - Includes HDMI 2.1, USB 2.0/3.0, TF card slot, and optional external Wi-Fi module.
Ideal for: Suitable for corporate lobbies, educational institutions, and government facilities in the GCC and Africa requiring reliable vertical digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot (up to 128 GB)
- Model
- LDH55-WAI200L
- Key features
- Industrial-grade panel, 24/7 operation, quad-core A55 CPU, Android 11, intelligent split-screen layout, B/S remote program management, encrypted data, password protection, unified platform management
- Orientation
- Portrait / Landscape
Display
- Backlight
- Direct LED
- Brightness
- 3000 cd/m²
- Colour depth
- 8-bit (16.7 million colours)
- Resolution
- Full HD
- Screen size
- 55"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 9:16
- Contrast ratio
- 1,200:1
- Panel technology
- IPS
- Response time
- 14 ms
System
- Processor
- ARM 4x Cortex-A55, 1.92 GHz
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
Connectivity
- Bluetooth
- None
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 1
- USB ports
- USB 2.0 × 1, USB 3.0 × 1
Camera & audio
- Audio out
- 3.5 mm audio out
- Speaker output
- 2 × 5 W
Physical & warranty
- Mounting type
- Ceiling mount (default); wall mount or floor stand (extra bracket required)
- In the box
- Ceiling mount bracket, Power cord, Legal and regulatory information, Remote control, Screw
- Operating humidity
- 10% to 85% RH
- Operating temperature
- 0°C to 40°C
- Power consumption
- ≤ 360 W
- Standby power
- ≤ 0.5 W
- Dimensions
- 721 x 1250 x 100 mm
- Weight
- 43 kg
- Shipping dimensions
- 1400 x 955 x 310 mm
- VESA mount
- 400 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the Dahua LDH55-WAI200L?
It is a 55-inch vertical digital signage display featuring a 3000 cd/m² brightness IPS panel and Android 11 operating system. It is designed for industrial use and includes remote management capabilities.
Can it be delivered to African countries?
Yes, Smart-Boards ships to African countries through established logistics partners. Delivery times depend on the country and order size, confirmed during quotation.
Is installation included outside the UAE?
No, on-site installation is only available within the UAE. For other regions, units are delivered ready for local setup with optional remote guidance.
What is the display resolution?
The display has a Full HD resolution of 1080 (H) × 1920 (V) pixels, suitable for sharp content in portrait mode.
Does it support remote content updates?
Yes, it uses B/S architecture to manage programs by time and location, allowing unified platform management and remote control.
What mounting options are available?
The default is a ceiling mount bracket. Wall mounting is supported via VESA 400 x 400mm, and floor stands require an extra bracket.
What warranty is provided?
The unit comes with the manufacturer warranty plus Smart-Boards after-sales support. Contact us for specific terms in your region.
