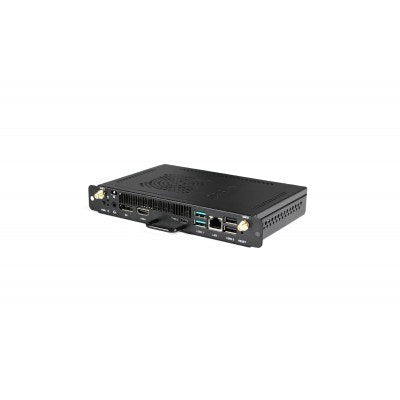

The Dahua SP-PI5C75IS is an Open Pluggable Specification module providing computing power for interactive displays. It features an Intel Alder Lake i5 processor, 16 GB memory, and pre-activated Windows 11 Pro. Smart-Boards supplies this unit for educational and corporate AV installations in the GCC and Africa.
This Dahua module integrates directly with compatible interactive flat panels to enable standalone operation. The Intel Core i5-12450H processor delivers reliable performance for digital signage or classroom applications. It includes 16 GB of memory and a 512 GB disk for system stability. The unit supports Windows 11 Pro, allowing users to run native applications without external hardware.
Connectivity options include dual-band Wi-Fi 6 and Bluetooth 5.2 for wireless peripherals. Video output supports 4K resolution via DisplayPort 1.2 and HDMI 1.4. The compact 119 mm × 180 mm × 30 mm design fits standard OPS slots. Power consumption is typically 53 W, with a maximum of 58.8 W. The unit operates between –5 °C and +45 °C, suitable for varied regional climates.
Key features
- Processing Power - Intel Alder Lake i5-12450H processor with 8 cores and 12 threads for efficient multitasking.
- Memory and Storage - 16 GB RAM and 512 GB disk space provide sufficient capacity for operating systems and applications.
- Operating System - Supports Windows 11 Pro, enabling access to the full Microsoft ecosystem for business and education.
- Connectivity - Includes Wi-Fi 6 (802.11ax), Bluetooth 5.2, and an RJ-45 network port for wired connections.
- Video Output - Features 1 × DP 1.2 and 1 × HDMI 1.4, both supporting maximum 4K resolution at specified refresh rates.
- Physical Dimensions - Measures 119 mm × 180 mm × 30 mm with a net weight of 0.75 kg for easy installation.
- In the Box - Includes 2 antennas, 2 M3 screws, a desiccant packet, and a user manual for setup guidance.
Ideal for: This module suits schools, universities, and corporate offices in the GCC and Africa requiring reliable computing for interactive displays.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- SP-PI5C75IS(Win 11 Pro Activated)
- Controls
- Front, 1 × power button, 1 × resetting button (recessed socket)
- Cores
- 8
Display
- Colour
- Black
System
- Processor
- Intel® Alder lake-H i5-12450H, 4.40 GHz
- Graphics
- Intel® UHD Graphics for 12th Gen Intel® Processors
- OPS slot
- 1 × 80 pin JAE port
- Operating system
- Windows 11
- RAM
- 16 GB
- Storage
- 512 GB
- Storage conditions
- –20 °C to +70 °C (–4 °F to +158 °F)
Connectivity
- Bluetooth
- Yes
- DisplayPort
- 1 × DP1.2 out, Max.4K/60 Hz
- Ethernet (RJ45)
- 1 × RJ-45 (10/100/1000 Mbps)
- USB-C
- 1 × USB 3.1 Type-C
- USB ports
- 2 × USB 3.1, 2 × USB 2.0
- Wi-Fi
- Yes
- Ports
- 1 × HDMI 1.4 out, Max.4K/30 Hz
Camera & audio
- Audio
- Realtek ALC897
Physical & warranty
- Material
- SGCC
- In the box
- 2 × antennas, 2 × M3 screws, 1 × desiccant, 1 × user's manual
- Operating humidity
- 10%–90%, non-condensing
- Operating temperature
- –5 °C to +45 °C (+23 °F to +113 °F)
- Power consumption
- 1 × DC IN
- Standby power
- 0.8 W
- Dimensions
- 119 mm × 180 mm × 30 mm (4.69" × 7.09" × 1.18")
- Weight
- 0.75 kg (1.65 lb)
- Shipping dimensions
- 254 mm × 196 mm × 77 mm (10.00" × 7.72" × 3.03") (L × W × H)
- Shipping weight
- 0.95 kg (2.09 lb)
- Input voltage
- 12–19 VDC
- Certifications
- CE, Energy Star
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this unit come with an operating system?
Yes, the Dahua SP-PI5C75IS supports Windows 11 Pro. It is available with the operating system pre-activated or without any OS, depending on the configuration selected during purchase.
What is the maximum video resolution supported?
The module supports a maximum resolution of 4K. DisplayPort 1.2 outputs up to 4K at 60 Hz, while HDMI 1.4 outputs up to 4K at 30 Hz.
Is Wi-Fi included in this OPS module?
Yes, the device includes integrated Wi-Fi 6 (802.11ax) and Bluetooth 5.2. The package contains two antennas and the necessary M3 screws for installation.
To which countries can Smart-Boards deliver this product?
Smart-Boards ships to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as selected African nations. Delivery times depend on the specific country and order size.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What is the operating temperature range?
The device operates within a temperature range of –5 °C to +45 °C. It can be stored between –20 °C and +70 °C in non-condensing environments.
What ports are available for external connections?
The module offers 2 × USB 3.1, 2 × USB 2.0, 1 × USB 3.1 Type-C, 1 × DP 1.2, 1 × HDMI 1.4, 1 × RJ-45, and a combined Line-out/MIC audio port.
