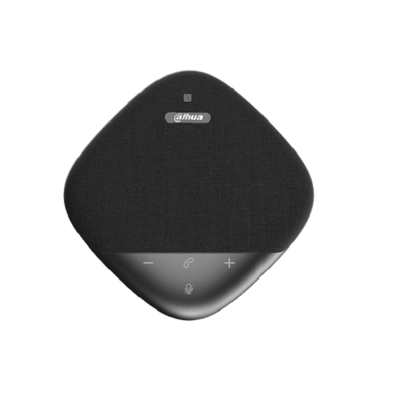

The Dahua PKC-WM1A is an omnidirectional digital microphone designed for clear audio capture in meeting environments. Featuring an 8-microphone array with a 6-meter pickup distance and 360-degree coverage, it ensures reliable voice transmission. Smart-Boards supplies this accessory to organisations across the GCC and Africa.
This device utilises an 8-element microphone array to capture audio from a 6-meter radius, ensuring participants are heard clearly regardless of their position relative to the unit. The 360-degree pickup mode combined with a sensitivity of –24 dBFS and a signal-to-noise ratio of 65 dBA provides high-definition audio quality suitable for professional video conferencing setups.
Powered by a built-in 4,400 mAh lithium battery, the PKC-WM1A offers up to 8 hours of operation at maximum volume on a full charge. It connects via Bluetooth 5.3 or a USB Type-C port for audio input, output, and charging. The compact 126 mm × 126 mm × 34 mm chassis includes indicator lights for battery and volume status, making it a practical addition to hybrid workspace infrastructure.
Key features
- 360° Audio Capture - An 8-microphone omnidirectional array provides a 6-meter pick-up distance for clear voice capture in all directions.
- Long Battery Life - A 4,400 mAh internal battery delivers up to 8 hours of continuous use at maximum audio call volume on a single charge.
- Bluetooth 5.3 Connectivity - Built-in Bluetooth 5.3 module allows wireless pairing with host devices, supplemented by a USB Bluetooth receiver for stable connections.
- Compact Form Factor - The unit measures 126 mm × 126 mm × 34 mm and weighs 0.4 kg, allowing discreet placement on conference tables.
- Multi-Device Control - Seven physical buttons manage power, calls, mute, Bluetooth pairing, volume, and cascading for easy operation in meeting rooms.
Ideal for corporate boardrooms, university lecture halls, and government meeting rooms across the GCC and Africa requiring reliable audio input for video conferencing.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- PKC-WM1A
- Product type
- Microphone
- Brand
- Dahua
- Key features
- Picks up sound 6 m away in all directions, 360° HD audio pickup, 8-array omni-directional microphones, high audio fidelity with automatic gain, wireless cascading of 2 devices, Bluetooth 5.3, Type-C port, lithium battery, indicator lights
- Battery capacity
- 3.7 V, 4,400 mAh
- Battery life
- 8 hours at max call volume
- Compatibility
- Dahua interactive panels; 8 microphone capsules, up to 6m speech recognition range
- Sensitivity
- -24 dBFS
Display
- Frequency response
- 75 Hz – 20 kHz
System
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- Bluetooth
- Bluetooth 5.3
- Connectivity options
- USB Type-C, Bluetooth 5.3
Physical & warranty
- In the box
- Omnidirectional digital microphone, 1 m USB Type-C cable, USB Bluetooth receiver, user's manual
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Dimensions
- 126 mm × 126 mm × 34 mm (4.96" × 4.96" × 1.34")
- Weight
- 0.4 kg (0.88 lb)
- Shipping dimensions
- 156 mm × 156 mm × 64 mm (6.14" × 6.14" × 2.52")
- Shipping weight
- 0.62 kg (1.37 lb)
- Input voltage
- 5 V DC, 2 A (charging)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
How long does the battery last?
The internal 4,400 mAh battery provides up to 8 hours of operation at maximum audio call volume. Recharging takes place via the Type-C port using a 5 V, 2 A power supply.
What is the pickup distance?
The microphone captures audio from a distance of 6 meters. The 360-degree pickup mode ensures that speakers are heard clearly from any direction within this range.
Can I connect this to multiple devices?
Yes, you can cascade up to two units to extend coverage. It connects via Bluetooth 5.3 or the included USB Bluetooth receiver for stable wireless performance.
Which countries does Smart-Boards deliver to?
We ship to all GCC countries including the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as select African nations through established logistics partners.
Do you provide installation services?
On-site installation is available only within the UAE. For deliveries to other countries, the unit arrives ready for local setup with remote guidance provided by our technical team.
What is included in the box?
The package contains the PKC-WM1A microphone, a 1 m USB Type-C cable, a USB Bluetooth receiver, and the user manual. The Type-C port supports both audio and charging.
Is pricing available online?
Pricing is by quotation only. Contact our sales team for quote-only pricing, which includes education, government, bulk, and tender options for our GCC and African markets.
