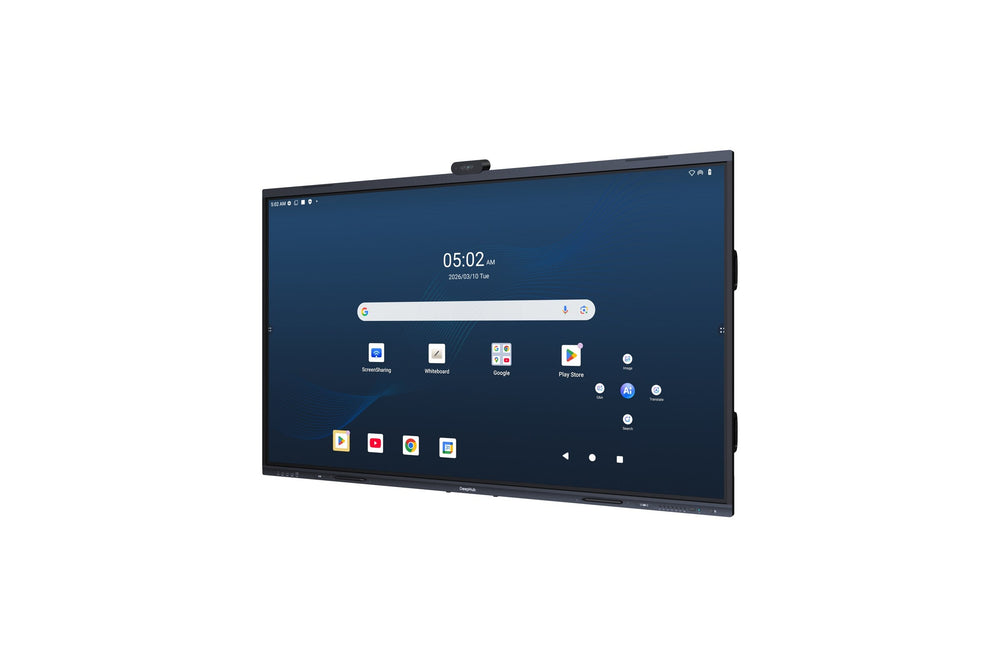

The Dahua LPH86-MC480-U-S2 is an 86-inch 4K UHD interactive flat panel designed for collaborative environments. It features 64-point infrared touch, Android 15, and integrated audio-visual hardware. Smart-Boards supplies this unit to educational and corporate clients across the GCC and Africa.
This 86-inch display delivers 4K UHD clarity with 500-nit brightness and a 178-degree viewing angle. The metal-cased panel includes a 3x50MP camera, 16-array microphone, and quad-core processor. Android 15 runs on 16 GB RAM with 128 GB storage. Wi-Fi 6 and Bluetooth 5.4 ensure stable connectivity for modern classroom or boardroom needs.
Smart-Boards ships this interactive flat panel to GCC and African countries via established logistics partners. On-site installation is available within the UAE only, while other regions receive delivery ready for local setup with remote guidance. We offer live or virtual demonstrations before purchase and provide quote-only pricing for education, government, and bulk orders.
Key features
- 4K UHD Display - The 86-inch screen provides 3840 x 2160 resolution with 500 nits brightness and 178-degree viewing angles.
- 64-Point Touch - Infrared touch technology supports 64 simultaneous touch points on both Android and Windows operating systems.
- Integrated AV - Built-in hardware includes a 3x50MP camera, 16-array microphone, and 4 speakers for video conferencing.
- Android 15 OS - The device runs Android 15 on a quad-core processor with 16 GB RAM and 128 GB internal storage.
- Connectivity - Ports include four HDMI inputs, one HDMI output, one DP input, and multiple USB 3.2 and USB-C connections.
- Smart Features - Key functions include radar human detection, NFC unlock, Wi-Fi 6, and Bluetooth 5.4 for secure wireless pairing.
Ideal for: Interactive teaching, corporate boardrooms, and training centers requiring large-format collaboration tools across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- 1 × microSD, up to 512 GB
- Model
- LPH86-MC480-U-S2
- Product type
- Interactive Flat Panel
- Key features
- Android 15, 4K UHD, 64-point touch, radar human detection, NFC unlock, 16-array microphone, Wi-Fi 6, Bluetooth 5.4
Display
- Colour
- Black sides, Lunar Rock Gray top and bottom
- Backlight
- DLED
- Brightness
- 500 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 86"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 90% NTSC
- Contrast ratio
- 1,200:1 (typical)
- Response time
- 8 ms
Touch
- Touch points
- 64-point multi-touch (Android and Windows)
- Touch technology
- Infrared
System
- Processor
- Quad-core A76 + Quad-core A55
- Graphics
- Mali-G610 MC4
- Operating system
- Android 15
- RAM
- 16 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Wi-Fi
- Wi-Fi 6
- Ports
- HDMI In × 4, HDMI Out × 1, DP In × 1, USB 3.2 Type-A × 4, USB-C × 3, USB 2.0 Type-A × 1
Camera & audio
- Built-in camera
- Yes
- Camera
- 3 × 50 MP (Android), 8 MP video
- Speaker output
- 2 × 10 W + 2 × 20 W
- Speaker configuration
- 4 speakers, 2.2 channel
- Microphone
- 16-array microphone
- Pickup range
- 0 to 12 m
Physical & warranty
- Material
- Metal casing
- Operating humidity
- 10% to 90% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 156 W (basic), 446 W (max)
- Dimensions
- 1914.9 x 1226.8 x 116.2 mm
- Weight
- 60.6 kg
- VESA mount
- 800 x 400 mm
- Bezel size
- Top 35.9 mm, sides 17.5 mm, bottom 40.7 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Does this panel support writing on glass?
Yes, the 64-point infrared touch technology allows for precise writing and drawing directly on the screen surface.
What operating systems are supported?
The panel runs Android 15 natively and supports Windows connectivity for dual-system operation.
Which countries can you deliver to?
We ship to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and select African nations through established logistics partners.
Is installation included outside the UAE?
On-site installation is available in the UAE only. Other countries receive the unit ready for local setup with remote guidance.
What is the screen resolution?
The display features a 4K UHD resolution of 3840 x 2160 pixels for sharp text and video playback.
Can I use it for video conferencing?
Yes, it includes a 3x50MP camera and 16-array microphone with a 12-meter pickup range for clear calls.
What ports are available?
It has four HDMI inputs, one HDMI output, one DP input, four USB 3.2 ports, three USB-C ports, and one USB 2.0 port.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
