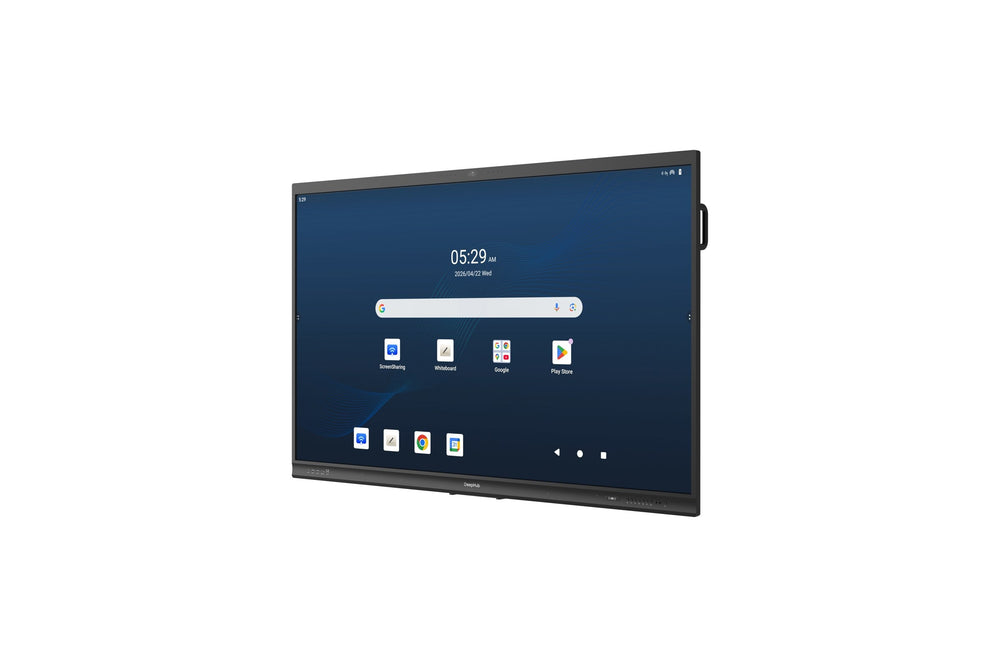

The Dahua LPH75-MC470-C-S3 is a 75-inch 4K UHD interactive flat panel designed for collaborative environments across the GCC and Africa. Featuring Android 16, 50-point infrared touch, and a 52 MP camera, this unit supports multi-site deployments with reliable connectivity and integrated audio.
This interactive display combines a 75-inch 3840 x 2160 screen with a quad-core processor and 8 GB RAM to ensure smooth operation for educational and corporate users. The integrated 8-array microphone captures audio from 8 to 12 meters, while the 52 MP camera facilitates clear video conferencing. With Wi-Fi 6 and Bluetooth 5.4, the panel connects reliably to peripherals and networks without additional hardware.
Smart-Boards supplies this Dahua unit to schools, ministries, and companies in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and Africa. The device runs Android 16 and includes EDLA certification for Google service compatibility. Pricing is provided by quotation, with delivery times confirmed per country and order size. On-site installation is available within the UAE, while other regions receive the unit ready for local setup with remote guidance.
Key features
- Touch Technology - 50-point infrared multi-touch with ±0.5 mm accuracy across 90% of the screen area.
- Integrated Audio - Eight-array microphone with 8 to 12 m pickup range and 2 × 20 W speakers for clear sound.
- Video Capabilities - 52 MP camera supports high-resolution video conferencing and smart whiteboard features.
- Connectivity Options - Includes Wi-Fi 6, Bluetooth 5.4, NFC, and multiple ports including HDMI, DP, and USB-C.
- Operating System - Runs Android 16 with EDLA certification, 8 GB RAM, and 128 GB storage for stable performance.
- Mounting Specifications - Supports VESA 600 x 400 mm mounting for flexible installation on walls or mobile stands.
Ideal for: Interactive teaching, boardroom meetings, and conference rooms for buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- 1 × SD, up to 512 GB
- Model
- LPH75-MC470-C-S3
- Product type
- Interactive Flat Panel
- Key features
- Android 16, 4K UHD, 50-point touch, 8-array microphone, 52 MP camera, Wi-Fi 6, NFC, IR receiver
- IP rating
- IP20
Display
- Colour
- Black sides, dark blue top and bottom
- Backlight
- DLED
- Brightness
- 400 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 16:9
- Colour gamut
- 90% NTSC
- Contrast ratio
- 1,500:1
- Response time
- 8 ms
Touch
- Touch accuracy
- ±0.5 mm (90% of area)
- Touch points
- 50-point multi-touch (Android and Windows)
- Touch technology
- Infrared
System
- Processor
- Quad-core A53 + quad-core A72
- Graphics
- Mali-G52 MC3
- Operating system
- Android 16
- RAM
- 8 GB
- Storage
- 128 GB
Connectivity
- Bluetooth
- Bluetooth 5.4
- Wi-Fi
- Wi-Fi 6
- Ports
- HDMI In × 3, HDMI Out × 1, DP In × 1, USB-C × 2, USB 3.0 × 4, RJ-45 × 2
Camera & audio
- Built-in camera
- Yes
- Camera
- 52 MP
- Speaker output
- 2 × 20 W
- Speaker configuration
- 2 mid-high frequency speakers, 2.0 channel
- Microphone
- 8-array microphone
- Pickup range
- 8 to 12 m
Physical & warranty
- Material
- Metal casing
- Operating humidity
- 0% to 93% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 120 W (basic), 350 W (max)
- Standby power
- ≤0.5 W
- Dimensions
- 1707.6 x 1067.2 x 115.7 mm
- Weight
- 48.6 kg
- VESA mount
- 600 x 400 mm
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, CB, EDLA
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries does Smart-Boards deliver to?
Yes, Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and various African nations through established logistics partners at the lowest possible cost.
Do you offer on-site installation in the UAE?
Yes, on-site installation is available within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance provided if needed.
What is the screen resolution?
The screen resolution is 3840 x 2160 (4K UHD), providing sharp text and video clarity for presentations and collaborative work.
How many touch points does it support?
It supports 50-point multi-touch using infrared technology, allowing multiple users to interact with the screen simultaneously.
Does it include a camera and microphone?
Yes, it includes a 52 MP camera and an 8-array microphone with an 8 to 12 m pickup range, suitable for video conferencing.
What operating system is used?
It runs Android 16 with EDLA certification, ensuring access to Google services and smooth application performance.
What is the power consumption?
The basic power consumption is 120 W, with a maximum of 350 W. Standby power is less than 0.5 W.
Delivery across the GCC & Africa
We ship to the UAE, Saudi Arabia, Qatar, Kuwait, Bahrain, Oman and across Africa at the lowest possible cost through established logistics partners. Lead times and freight are stated clearly in your quotation.
On-site installation in the UAE
Professional installation, mounting and configuration are available within the UAE. Outside the UAE the product arrives ready for local installation, with remote setup guidance from our team.
- Export-grade packing and transit insurance
- Procurement-ready documents for tenders and projects
- Wall mount or mobile stand fitting (UAE)
- Manufacturer warranty, optional annual maintenance contract
Ready to equip your space?
Get a tailored quote for the GCC & Africa — pricing, availability and project support in one reply.
