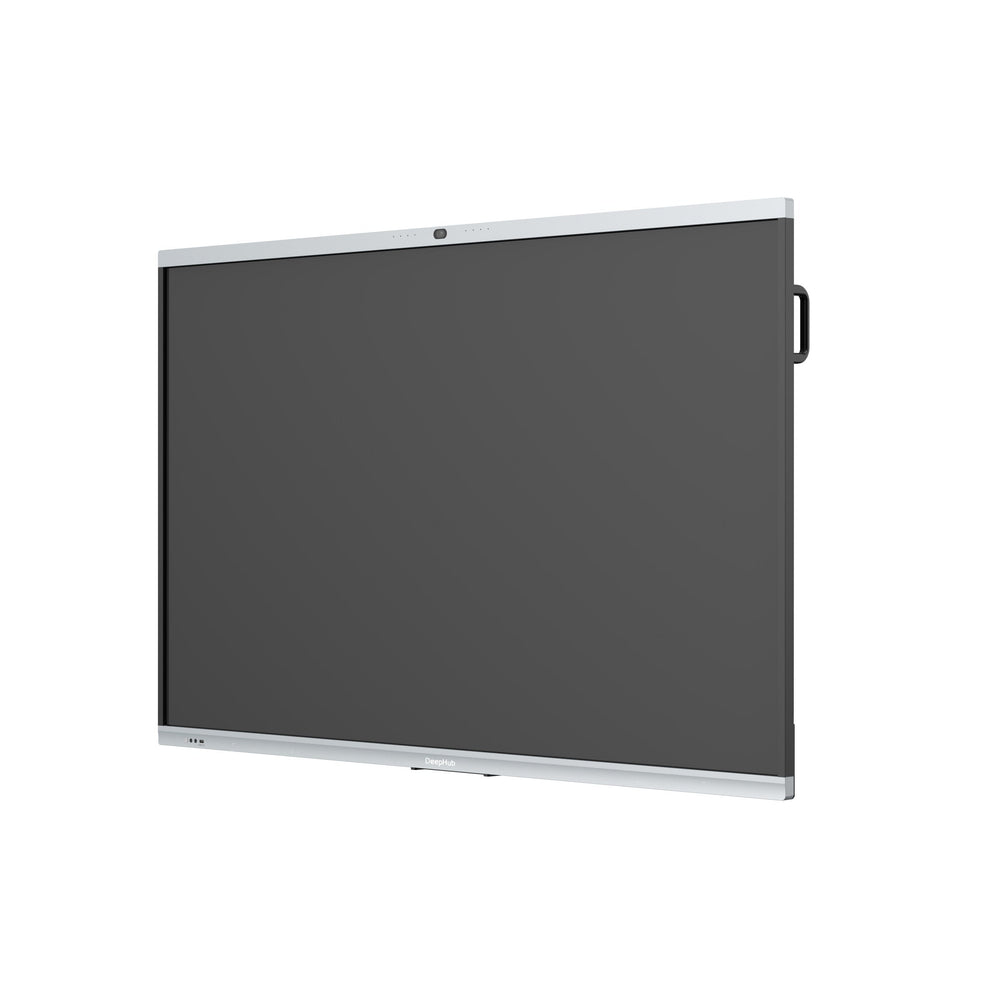

The Dahua LCH75-MC410-B-S2 is a 75-inch interactive flat panel featuring 4K UHD resolution and Android 14. Designed for collaborative environments, it supports 32-point infrared touch and includes integrated audio-visual components. Smart-Boards supplies this model across the GCC and Africa with tailored logistics.
This interactive display integrates Android 14 with a quad-core processor, 8 GB RAM, and 64 GB storage for responsive multitasking. The 75-inch DLED screen delivers 4K UHD resolution at 350 nits brightness with a 178-degree viewing angle. Built-in connectivity includes Wi-Fi 6, Bluetooth 5.2, and dual HDMI 2.0 inputs. The system supports both Android and Windows modules, offering flexible operation for diverse professional requirements.
Communication is enhanced by an eight-array microphone system with an 8 to 12-meter pickup range and dual 15-watt speakers. The integrated camera supports 48 MP photos and 4 MP video for clear conferencing. Touch functionality reaches 32 points on Android and 40 points on Windows modules. The unit weighs 50 kg and supports VESA 600 x 400 mm mounting, suitable for wall or mobile bracket installation.
Key features
- Android 14 Interface - Runs on Android 14 with a quad-core A55 processor, 8 GB RAM, and 64 GB internal storage for smooth application performance.
- 4K UHD Display - Features a 75-inch screen with 3840 x 2160 resolution, 350 nits brightness, and 1,200:1 contrast ratio for clear visuals.
- Multi-Touch Interaction - Supports 32-point touch on Android and 40-point touch on Windows modules with 32,767 x 32,767 touch resolution.
- Integrated Audio - Includes eight-array microphones for 8 to 12-meter pickup and dual 15-watt speakers for clear audio output.
- Camera Module - Features a dual-lens camera supporting 48 MP photos and 4 MP video for high-quality video conferencing.
- Wireless Connectivity - Supports Wi-Fi 802.11ax (Wi-Fi 6) and Bluetooth 5.2, with access point mode for flexible network integration.
Ideal for: Suitable for classrooms, conference rooms, and corporate training centers requiring integrated video conferencing, this panel suits buyers across the GCC and Africa seeking reliable AV hardware.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- LCH75-MC410-B-S2
- Product type
- Interactive Flat Panel
- Key features
- Android 14, 4K UHD, 32-point touch on Android, 8-array microphone, 2 × 15 W speakers, Wi-Fi access point, Bluetooth 5.2, Windows module support
Display
- Colour
- Black sides, starry gray top and bottom
- Backlight
- DLED
- Brightness
- 350 cd/m²
- Refresh rate
- 60 Hz
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° horizontal / 178° vertical
- Aspect ratio
- 16:9
- Colour gamut
- ≥72% NTSC
- Contrast ratio
- 1,200:1 (typical)
- Response time
- 8 ms (typical)
Touch
- Touch points
- 32 points (Android), 40 points (Windows)
- Touch resolution
- 32,767 x 32,767
- Touch technology
- Infrared
System
- Processor
- Quad-core A55
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 64 GB
- Storage conditions
- -20 to 60 °C, 10% to 90% RH, non-condensing
Connectivity
- Bluetooth
- Bluetooth 5.2
- Wi-Fi
- 802.11b/g/n/a/ac/ax, station and access point
- Ports
- HDMI 2.0 In × 2 (4K@60 Hz); USB 3.2 Gen1 Type-A × 1; USB 2.0 Type-A × 1; Type-C × 1 (USB 2.0 device, 5 W charging); RJ-45 × 1; 3.5 mm line out × 1; touch port × 1
Camera & audio
- Built-in camera
- Yes
- Camera
- Android: 48 MP photo, 4 MP video; Windows: 4 MP photo and video
- Speaker output
- 2.0 channel, 2 × 15 W
- Microphone
- 8 arrays, 8 m to 12 m pickup
Physical & warranty
- Mounting type
- Wall mount; mobile bracket
- Operating humidity
- 10% to 90% RH, non-condensing
- Operating temperature
- 0 to 40 °C
- Power consumption
- 141.5 W (basic); 270 W (max)
- Standby power
- ≤0.5 W
- Dimensions
- 1707.6 x 1038.5 x 115.7 mm
- Weight
- 50 kg
- VESA mount
- 600 x 400 mm
- Shipping weight
- 58.4 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What is the operating system?
The device runs on Android 14, providing access to app ecosystems and built-in collaboration tools without external computers.
Does it support Windows?
Yes, the panel supports Windows modules for touch functionality, allowing users to connect external PCs or use optional Windows boards.
Which countries can be delivered to?
Smart-Boards ships to all GCC countries and African nations through established logistics partners, ensuring cost-effective delivery to your location.
Is installation included in the UAE?
On-site installation is provided within the UAE only. Other regions receive the unit ready for local setup with remote guidance if available.
What are the mounting options?
The panel supports VESA 600 x 400 mm mounts, allowing for secure wall mounting or attachment to mobile brackets for flexible placement.
What ports are available?
It includes two HDMI 2.0 inputs, USB 3.2 Type-A, USB 2.0 Type-A, Type-C, RJ-45, and 3.5 mm line out for versatile connectivity.
What is the power consumption?
The unit consumes 141.5 W typically and up to 270 W at maximum, with standby power under 0.5 W for energy efficiency.
