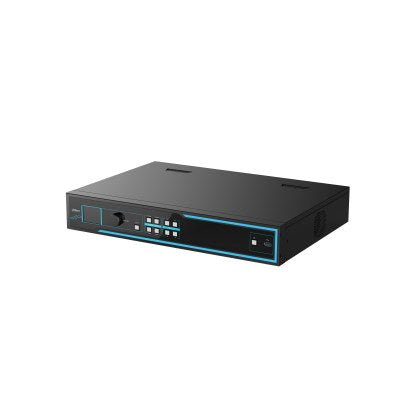

The Dahua DSCON2100-0416H is a 1.5U embedded multi-screen controller designed for video wall splicing and display management. It supports up to 16 HDMI outputs, 4 HDMI inputs, and custom resolutions up to 3840 pixels wide. Smart-Boards supplies this unit across the GCC and Africa from Dubai.
This 1.5U rack-mounted device manages complex video wall layouts using an embedded Linux processor. It decodes H.264 and H.265 streams while supporting 16 simultaneous HDMI outputs. The system allows up to 144 windows with roaming capabilities and custom M x N splits. Users can configure schemes, tours, and scheduled displays via the front panel LCD or network interface.
Smart-Boards acts as an authorised reseller, providing quote-only pricing for education, government, and bulk orders. We ship to GCC and African countries through established logistics partners at low cost. On-site installation is available within the UAE only. Other regions receive delivery ready for local setup with remote guidance if needed.
Key features
- 16 HDMI Outputs - Provides 16 HDMI 1.3 outputs for video wall splicing, supporting resolutions up to 3840 x 524 pixels at 60 Hz.
- 4 HDMI Inputs - Accepts 4 HDMI inputs (2x HDMI 2.0, 2x HDMI 1.3) with modes for 4K@60 Hz or 1080p@60 Hz acquisition.
- Window Management - Splits screens into up to 9 windows each, supporting roaming, custom EDID settings, and scheme tours.
- Control Interfaces - Includes RJ-45 Ethernet, 2x RS-232, 1x RS-485, 3x USB, and a front panel LCD for quick configuration.
- Decoding Power - Decodes 1 channel at 32 MP@30 fps, 2 channels at 8 MP@60 fps, or 4 channels at 8 MP@30 fps.
Ideal for: Suitable for command centres, broadcast studios, and corporate lobbies requiring multi-screen display control, serving buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DSCON2100-0416H
- Product type
- Video Wall Controller
- Key features
- 16-ch HDMI output, 4 HDMI inputs in 3 modes, up to 16 screens spliced, 144 windows with roaming, H.264 and H.265 decoding, scheme tour
- Application
- Video wall splicing and multi-screen display management
- Protocols
- ONVIF, Hikvision Private, Dahua Private
- Rack units
- 1.5U
Display
- Resolution
- Full HD
System
- Processor
- High-performance embedded processor
- Operating system
- Linux
Connectivity
- Ethernet (RJ45)
- 1 × RJ-45, 10/100/1,000 Mbps
- HDMI input
- 2 × HDMI 2.0, 2 × HDMI 1.3
- HDMI output
- 16 × HDMI 1.3
- Serial port
- RS-232 × 2, RS-485 × 1
- USB ports
- 3 × USB
- Ports
- HDMI out × 16, HDMI in × 4, RJ-45 network × 1, RS-232 × 2, RS-485 × 1, USB × 3, 3.5 mm audio out × 1
Camera & audio
- Audio out
- 1 × 3.5 mm
- Audio codecs
- PCM, G.711
Physical & warranty
- Operating humidity
- 10% to 95% RH, non-condensing
- Operating temperature
- -10 to +55 °C
- Power consumption
- 60 W maximum
- Dimensions
- 440 x 66 x 321 mm (W x H x D)
- Weight
- 4.64 kg (net); 7.36 kg (gross)
- Input voltage
- 100–240 V AC, 50/60 Hz
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can this controller be delivered to?
Yes, Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and African nations. Delivery times depend on the country and order size, confirmed on the quotation.
Is on-site installation available outside the UAE?
No, on-site installation is only provided within the UAE. For other countries, the unit is delivered ready for local setup, with remote guidance available if needed.
What is the maximum resolution supported?
The device supports custom output widths and heights from 128 to 3,840 pixels. Default output is 1920 x 1080 @ 60 Hz, but it can handle ultra-high resolutions up to 3840 x 524 @ 60 Hz.
Does it support network control protocols?
Yes, it supports ONVIF, Hikvision Private, and Dahua Private protocols. It also includes 2 RS-232 ports, 1 RS-485 port, and an RJ-45 Ethernet port for integration.
What warranty and support are included?
The product comes with the manufacturer warranty plus Smart-Boards after-sales support. We are an authorised reseller and can confirm availability or recommend successors if needed.
Can I get a quote for bulk orders?
Yes, pricing is by quotation only. We offer education, government, bulk, and tender options. Contact our team for a detailed quote tailored to your region and order size.
What are the power requirements?
The controller operates on 100–240 V AC, 50/60 Hz, with a maximum power consumption of 60 W. It functions in temperatures from -10 to +55 °C and humidity from 10% to 95% RH.
