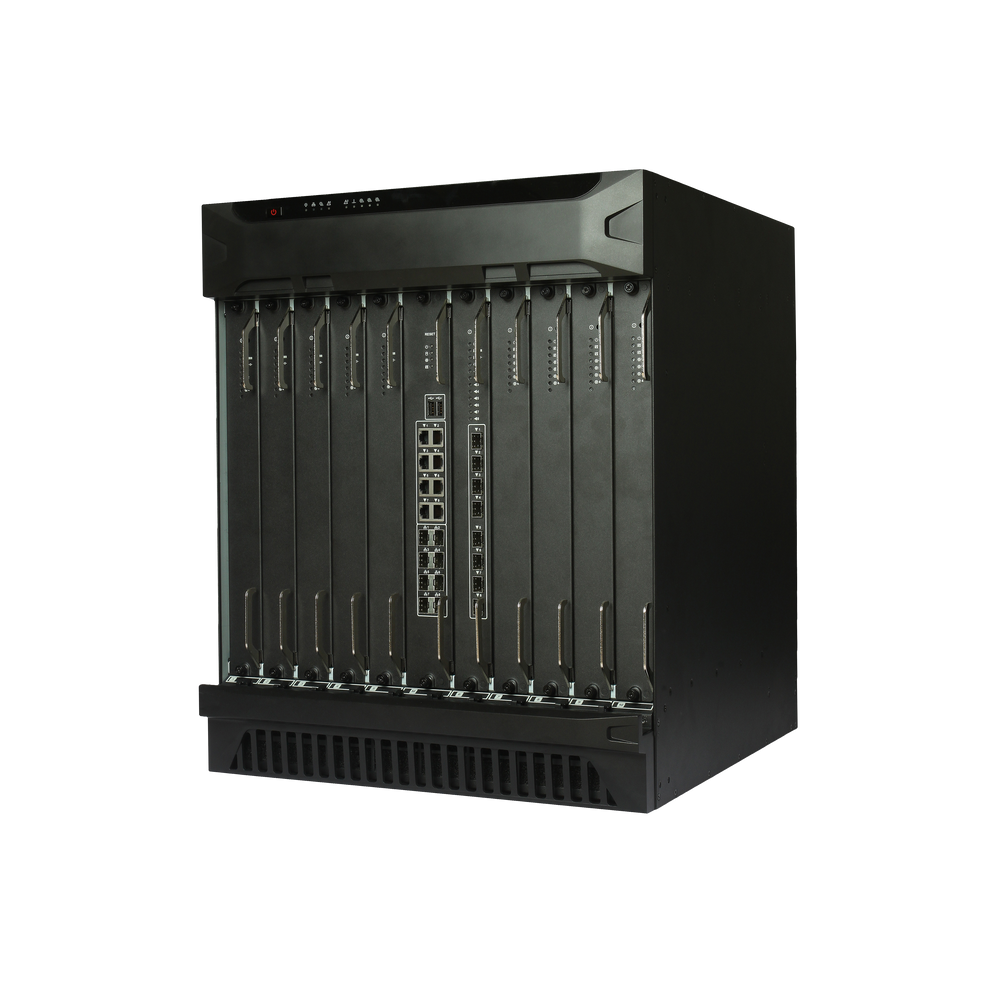

The Dahua M60-12U is a discontinued multi-service video wall controller designed for large-scale surveillance management. It features 180-screen splicing capability and hot-swappable cards. Smart-Boards, an authorised reseller, can confirm current availability or recommend successors for GCC and African clients.

This 12U rack-mounted platform processes mixed digital and network video inputs for high-density displays. It handles up to 180 screens with zoom, merge, and overlay functions. The embedded Linux system uses a quad-core processor to manage 60ch@32MP decoding or 960ch@1080P decoding when fully configured. Its modular design allows flexible configuration via pluggable card modules that support hot-swapping for maintenance.

Connectivity includes eight RJ-45 ports and optional optical ports for matrix control and central storage. It supports TCP/IP, RTP, RTSP, and DHCP protocols for remote management. Users can control the system via web, local GUI, or network keyboard. The unit accepts 100–240 V AC input and operates between 0 to 50 °C. It weighs up to 40 kg and consumes 800 W maximum power.

Key features

• High-Density Splicing - Supports video wall splicing of up to 180 screens with zoom, merge, roam, and overlay capabilities.
• Modular Architecture - Utilises a 19-inch 12U ATCA box with pluggable function cards that support hot-swap for easy maintenance.
• Network Connectivity - Features eight RJ-45 ports and optional optical ports, providing 8 Gbps interface bandwidth for matrix control.
• Decoding Performance - Handles 60 channels at 32MP or 960 channels at 1080P resolution with full configuration of decoding cards.
• Remote Management - Enables remote cast, reboot, upgrade, and default settings via web, local GUI, video platform, or iPad.

Ideal for command centres, security operations, and broadcasting environments requiring high-channel video processing, suiting buyers across the GCC and Africa.
