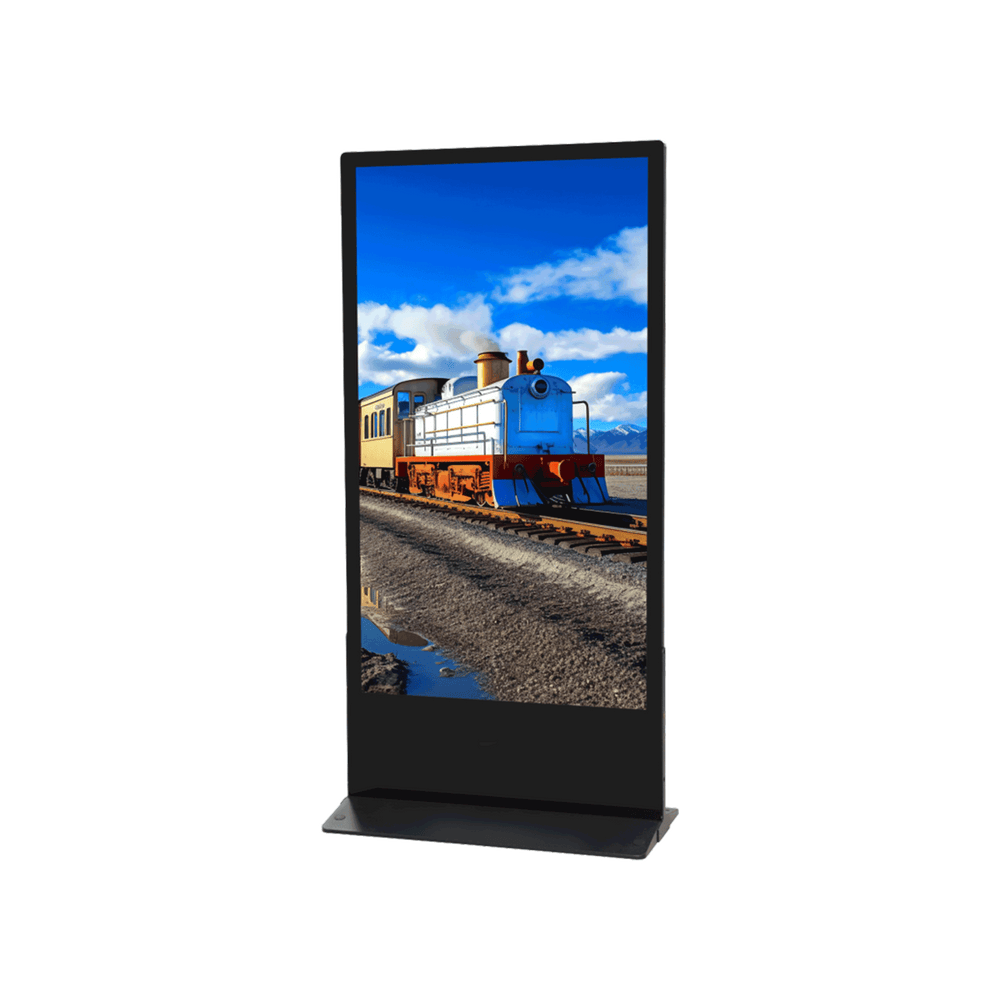

The Dahua LDV75-SAI400L is a 75-inch vertical LCD digital signage kiosk designed for continuous 24/7 operation. Featuring a 4K UHD IPS/VA panel, Android 11 operating system, and remote management capabilities, it suits high-traffic public spaces. Smart-Boards supplies this industrial-grade display across the GCC and Africa.
This vertical display utilises a 75-inch panel with a 9:16 aspect ratio and 2160 × 3840 resolution. The IPS/VA technology ensures consistent colour reproduction with a brightness of 320 cd/m² and a contrast ratio of up to 4000:1. Its metal casing and industrial-grade components support reliable performance in demanding environments, while the Android 11 system provides a stable interface for content management.
The device includes an Android 11 operating system powered by a quad-core A55 CPU, 4 GB RAM, and 32 GB ROM. It supports 4K video decoding for formats such as H.265 and H.264, ensuring smooth playback. Connectivity options include a Gigabit Ethernet port, USB 3.0, USB 2.0, and an optional external Wi-Fi module. The integrated B/S architecture allows for remote program management and encrypted data transmission across multiple locations.
Key features
- Vertical 4K Display - Features a 75-inch panel with 2160 × 3840 resolution and a 9:16 portrait aspect ratio for tall-format content.
- Industrial Durability - Built with an industrial-grade panel and metal casing, designed to operate continuously up to 24 hours a day.
- Android 11 System - Runs on Android 11.0 with a quad-core 1.92 GHz CPU, 4 GB RAM, and 32 GB ROM for stable performance.
- Remote Management - Supports B/S architecture for unified platform management, remote control, and encrypted data transmission.
- Content Playback - Decodes H.265 and H.264 video up to 4K, with support for MP4, AVI, and MKV formats via HDMI or USB.
- Connectivity Options - Includes 1x Gigabit Ethernet, 1x USB 3.0, 1x USB 2.0, TF card slot, and optional external Wi-Fi module.
Ideal for lobbies, transit hubs, and corporate atriums requiring vertical content, suitable for buyers across the GCC and Africa seeking durable digital signage.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- microSD card slot × 1
- Model
- LDV75-SAI400L
- Key features
- Industrial-grade panel, 24-hour operation, Quad-core Android CPU, 4K decoding, Multi-mode playback, Split-screen layouts, Time/location scheduling, Remote platform management
- Orientation
- Portrait
Display
- Colour
- Black
- Backlight
- Direct LED
- Brightness
- 320 cd/m²
- Colour depth
- 10-bit (1.07 billion colours)
- Resolution
- 4K UHD
- Screen size
- 75"
- Viewing angle
- 178° (H) / 178° (V)
- Aspect ratio
- 9:16
- Response time
- 8 ms
System
- Processor
- ARM 4x Cortex-A55, 1.92 GHz
- Operating system
- Android 11
- RAM
- 4 GB
- Storage
- 32 GB
- Operating hours
- 24/7
- Storage conditions
- -20 to 60 °C, 10% to 90% RH
Connectivity
- Bluetooth
- None
- Ethernet (RJ45)
- RJ45 × 1
- HDMI input
- HDMI In × 1
- USB ports
- USB 2.0 × 1, USB 3.0 × 1
Camera & audio
- Audio in
- Audio in × 1
- Audio out
- 3.5 mm audio out
- Speaker output
- 2 × 5 W
- Audio codecs
- MPEG-3, WMA, WAV
Physical & warranty
- Material
- Metal casing
- Mounting type
- Vertical mount
- In the box
- Base, User's manual, Power cord, Legal and regulatory information, Remote control
- Operating humidity
- 10% to 85% RH
- Operating temperature
- 0 to 40 °C
- Power consumption
- 200 W
- Standby power
- 0.5 W
- Dimensions
- 2028 x 1028 x 520 mm
- Weight
- 80 kg
- Shipping dimensions
- 2204 x 234 x 1194 mm
- Shipping weight
- 99 kg
- Input voltage
- 100–240 V AC, 50/60 Hz
- Certifications
- CE, ERP
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What operating system does the LDV75-SAI400L use?
It runs Android 11.0, providing access to standard Android apps and media players for content playback.
Can this screen be used for 24/7 operation?
Yes, the industrial-grade panel is designed for continuous 24-hour daily operation in public or commercial settings.
Does it support remote content management?
Yes, the B/S architecture allows for remote program scheduling, encryption, and unified platform management across devices.
Which countries can you deliver this product to?
We supply to all GCC nations, including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as African countries via established logistics partners.
Is installation included outside the UAE?
On-site installation is provided within the UAE only. For other regions, delivery is ready for local setup with remote guidance if needed.
What is the power consumption of this kiosk?
Power consumption is ≤ 200 W during operation and ≤ 0.5 W in standby mode, supporting standard 100–240 VAC power supplies.
What accessories are included with the unit?
The package includes the base stand, user manual, power cord, remote control, and legal/regulatory information documents.
