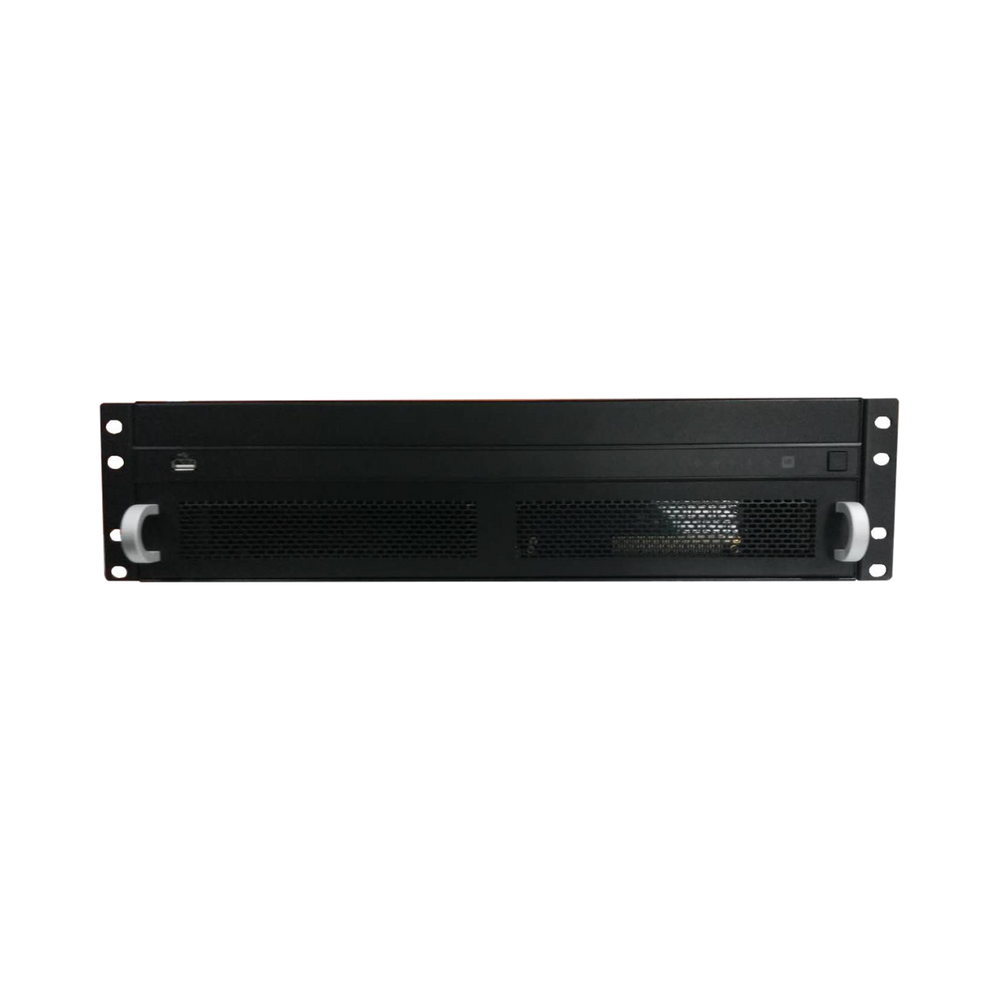

The Dahua DSCON3000-M is a 2.5U ATCA multi-screen controller designed for large-scale video wall deployments. It supports up to 32-screen splicing with low-latency synchronization and 4K HDMI local input. Smart-Boards supplies this discontinued unit across the GCC and Africa with remote setup guidance.
This 2.5U chassis provides robust signal processing for complex AV environments. It supports a maximum of 32 screens in splicing mode with three additional outputs. The system includes pluggable input cards for HDMI 4K, DVI-I, and SDI signals. Its passive rear panel design ensures reliable operation in demanding settings.
Smart-Boards acts as an authorised reseller for this discontinued model. We supply the unit to clients in the UAE, KSA, Qatar, Kuwait, Oman, Bahrain, and African nations. Delivery is handled through established logistics partners at low cost. On-site installation is available within the UAE, while other regions receive remote guidance for local setup.
Key features
- Splicing Capacity - Supports up to 32-screen splicing plus three extra outputs with low-latency synchronization.
- Input Flexibility - Pluggable cards allow configuration for 4K HDMI, DVI-I, 3G-SDI, and CVBS signals.
- System Design - Built in a 19-inch 2.5U ATCA chassis with a high-speed passive rear panel for stability.
- Control Options - Manage the device via PC client, network keyboard, or iPad interface.
- Power & Cooling - Operates on 115–230 V AC with optional redundant power and smart temperature-controlled fans.
- Connectivity - Features two RJ-45 gigabit ports, RS-232/RS-485 serial ports, and USB 2.0/3.0 interfaces.
Ideal for: Suitable for security operations, broadcast studios, and control rooms requiring reliable matrix output, ideal for buyers across the GCC and Africa managing multiple sites.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- DSCON3000-M
- Product type
- Video Wall Controller
- Key features
- 2.5U ATCA chassis, 32-screen splicing plus 3 extra outputs, local 4K HDMI collection, 2 RJ-45 gigabit ports, redundant power optional, low-latency synchronization
- Controls
- PC client, network keyboard, iPad
- Rack units
- 2.5U
Display
- Resolution
- 4K UHD
System
- Operating system
- Linux
Connectivity
- Serial port
- 3 × RS-232 (RJ-45), 1 × RS-485
- Inputs
- Input cards: 2-ch HDMI 4K, 8-ch HDMI, 4-ch DVI-I, 4-ch 3G-SDI, 32-ch CVBS
- Outputs
- Output cards: 8-ch HDMI 1.3, 4-ch 3G-SDI; main control board: 3-ch HDMI 1.3
- Ports
- RJ-45 × 2 (1000M), RS-232 × 3 (RJ-45), RS-485 × 1, USB 2.0 × 1, USB 3.0 × 2
Physical & warranty
- Mounting type
- 19-inch standard 2.5U ATCA chassis
- Operating humidity
- 10% to 90% RH
- Operating temperature
- -10 to +55 °C
- Power consumption
- 90 W minimum system; 360 W fully configured
- Dimensions
- 482.6 x 111.9 x 436.8 mm (W x H x D)
- Weight
- 12.5 kg maximum (fully configured)
- Input voltage
- 115–230 V AC, 47–63 Hz (redundant power optional)
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is the Dahua DSCON3000-M still in production?
No, this model is discontinued. The team can confirm current availability or recommend the current successor model for your requirements.
Which countries receive delivery for this product?
We ship to GCC countries and African nations. Logistics partners handle delivery, with installation limited to the UAE. Other regions receive remote setup guidance.
Does Smart-Boards offer installation in the UAE?
Yes, on-site installation is available within the UAE. For other countries, we provide delivery ready for local setup with remote technical guidance if needed.
What is the maximum screen splicing capacity?
The controller supports a maximum of 32 screens in splicing mode, along with three additional independent outputs for flexible display configurations.
Can this unit handle 4K HDMI inputs?
Yes, it supports local 4K HDMI collection. Input cards are available for HDMI 4K, DVI-I, 3G-SDI, and CVBS signals to suit various source types.
What power supply options are available?
The system operates on 115–230 V AC, 47–63 Hz. Redundant power supplies are optional, and the unit includes smart temperature-controlled cooling fans.
