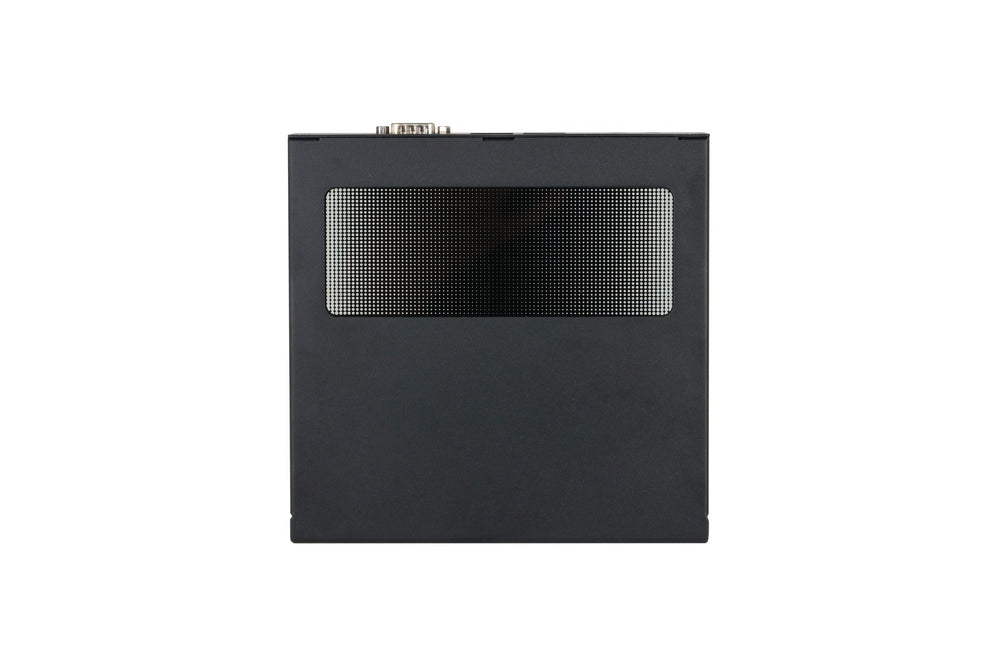

The Dahua DS04-AI400N is a compact Android 14 media player for digital signage, offering 4K video decoding, 8 GB RAM, and dual-band Wi-Fi. Smart-Boards supplies this device to schools, ministries, and companies across the GCC and Africa, with remote setup support.
This metal-cased unit runs Android 14 to manage diverse content types, including PDFs, images, and live data feeds. It connects via a Gigabit Ethernet port or dual-band Wi-Fi 6, ensuring reliable network performance in various environments. The device supports both landscape and portrait orientations on compatible 16:9 or 9:16 screens, making it suitable for standard interactive flat panels and digital displays.
Remote management tools allow administrators to schedule power cycles, import files via USB 3.2, and capture screenshots without physical access. With a maximum power consumption of 18 W and an operating temperature range of -10 to 55 °C, it handles typical indoor deployment conditions. Smart-Boards provides quote-only pricing and logistics for multi-site rollouts across the region.
Key features
- Android 14 Platform - Runs on Android 14 with 8 GB RAM and 32 GB storage for stable application performance.
- 4K Video Decoding - Supports H.265/HEVC and H.264/AVC codecs for smooth 4K at 60 fps or 1080p multi-channel output.
- Dual-Band Connectivity - Includes Wi-Fi 6 (802.11ax) and Bluetooth 5.2 alongside a Gigabit Ethernet RJ-45 port.
- Remote Management - Enables device scheduling, user management, USB file imports, and remote screenshot capture.
- Content Playback Modes - Supports loop, timed, inter-cut, and gasket play for structured digital signage content delivery.
Ideal for: Schools, universities, and corporate offices in the GCC and Africa requiring reliable media players for digital signage or interactive flat panel integration.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- SD card slot
- 1 × TF card slot, up to 512 GB
- Model
- DS04-AI400N
- Product type
- Digital Signage Media Player
- Key features
- 4K decoding, Loop, timed, inter-cut and gasket play, Remote screenshots, USB file import, Device and user management, Auto on and off scheduling, Dual-band Wi-Fi and Bluetooth 5.2
- IP rating
- IP20
System
- Operating system
- Android 14
- RAM
- 8 GB
- Storage
- 32 GB
Connectivity
- Bluetooth
- Bluetooth 5.2
- Ethernet (RJ45)
- 1 × RJ-45 10/100/1000 Mbps
- HDMI output
- 1 × HDMI out, 4K at 60 fps, or 4 channels at 1080p
- Serial port
- 1 × RS-232, 1 × RJ-45
- USB ports
- 2 × USB 3.2 Gen 1 (Type-A)
- Wi-Fi
- Dual-band 2.4 GHz and 5 GHz, 802.11 a/b/g/n/ac/ax
Camera & audio
- Audio out
- 1 × 3.5 mm line out
- Audio codecs
- MP3, WAV, MPEG-4, H.264/AVC, H.265/HEVC
Physical & warranty
- Material
- Metal casing
- In the box
- Power adapter, remote control, quick start guide, legal and regulatory information
- Operating humidity
- 10% to 90% RH, non-condensing
- Operating temperature
- -10 to 55 °C
- Power consumption
- 7 W (typical), 18 W (maximum)
- Dimensions
- 169.4 x 169.7 x 38.2 mm
- Weight
- 825 g
- Input voltage
- 12 VDC
- Certifications
- CE LVD, CE EMC, CE RED
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Which countries can receive delivery?
Yes, Smart-Boards ships to all GCC countries (UAE, KSA, Qatar, Kuwait, Oman, Bahrain) and selected African nations through established logistics partners.
Is on-site installation available outside the UAE?
No, on-site installation is only provided within the UAE. Other countries receive the unit ready for local setup with remote guidance if needed.
Does it support portrait mode displays?
Yes, the DS04-AI400N supports 9:16 aspect ratios for portrait screens, though users should verify compatibility to avoid black borders.
What is the maximum power consumption?
The device has a maximum power consumption of 18 W and operates on 12 VDC input, with typical usage around 7 W.
Can I manage devices remotely?
Yes, the unit supports remote device and user management, network configuration, and scheduling for automatic on/off times.
What is the operating temperature range?
The media player functions in temperatures between -10 to 55 °C and humidity levels from 10% to 90% RH, non-condensing.
Does Smart-Boards provide after-sales support?
Yes, we provide manufacturer warranty coverage plus Smart-Boards after-sales support for all units purchased through our authorized reseller network.
