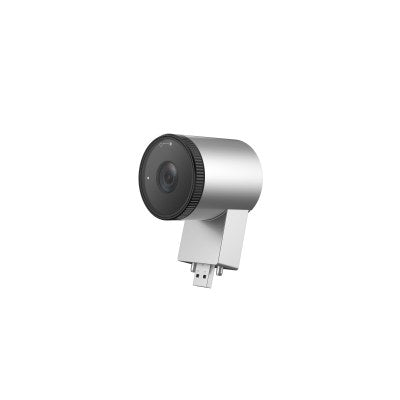

The Dahua BDC-UZ48 is a dedicated USB camera accessory designed exclusively for ST470-P interactive flat panels. It delivers 4K resolution via a 4mm fixed lens for clear video conferencing. Smart-Boards supplies this unit across the GCC and African markets.
This compact accessory integrates directly with the Dahua ST470-P series to enhance conferencing capabilities. Equipped with a 1/1.8" CMOS sensor, it captures high-definition video at up to 3840 × 2160 resolution. The fixed 4mm lens provides an 87° horizontal field of view, ensuring wide coverage for meeting rooms. It operates on standard 5V USB power, consuming a maximum of 5W, making it energy-efficient for continuous use in educational or corporate environments.
Built for reliability, the camera functions within temperatures ranging from –10 °C to +50 °C. Its compact dimensions of 51.7mm × 68.0mm × 96.1mm allow for discreet mounting. The unit supports multiple data formats including MJPG, YUY2, and H.264, ensuring compatibility with various video conferencing software. Smart-Boards acts as an authorised reseller, providing manufacturer warranty and after-sales support for buyers across the UAE, KSA, Qatar, Kuwait, Oman, and Bahrain.
Key features
- High-Resolution Sensor - Features a 1/1.8" CMOS sensor with 48 MP pixel count for sharp image capture.
- 4K Video Output - Supports maximum resolution of 3840 × 2160 pixels at 30 frames per second.
- Wide Field of View - The 4mm fixed-focal lens offers an 87° horizontal field of view for wider coverage.
- Compact Physical Design - Weighing only 0.12 kg, the unit measures 51.7mm × 68.0mm × 96.1mm for easy installation.
- Operational Durability - Functions reliably in operating temperatures from –10 °C to +50 °C and humidity up to 80%.
Ideal for schools, universities, and offices requiring enhanced camera input for ST470-P interactive flat panels, suitable for multi-site buyers across the GCC and Africa.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- BDC-UZ48(Only for ST470-P)
- Signal-to-noise ratio
- >50 dB
Display
- Resolution
- 48 MP
System
- Storage conditions
- –10 °C to +60 °C (+14 °F to +140 °F)
Connectivity
- USB ports
- 1 × USB 2.0, Type A
Camera & audio
- Camera
- 0.1 lux
Physical & warranty
- In the box
- User's manual x 1
- Operating humidity
- 20%–80% (RH)
- Operating temperature
- –10 °C to +50 °C (+14 °F to +122 °F)
- Power consumption
- Max. 5 W
- Dimensions
- 51.7mm × 68.0mm × 96.1mm (2.04" × 2.68" × 3.78") (L × W × H)
- Weight
- 0.12 kg (0.26 lb)
- Shipping dimensions
- 138 mm × 84mm × 95 mm (5.43" × 3.31" × 3.74") (L × W × H)
- Shipping weight
- 0.15 kg (0.33 lb)
- Input voltage
- 5 V
- Certifications
- CB, FCC, IC
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
Is this camera compatible with all Dahua interactive flat panels?
No. The BDC-UZ48 is specifically designed for use with the ST470-P model only. It is not compatible with other series in the Dahua interactive display range.
What is the maximum video resolution supported?
The camera supports a maximum resolution of 3840 (H) × 2160 (V) pixels. It maintains this 4K resolution at 30 frames per second for smooth video conferencing.
Which countries receive delivery for this accessory?
Smart-Boards ships to all GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations through established logistics partners.
Does Smart-Boards provide on-site installation?
On-site installation is available within the UAE only. For deliveries to other countries, the unit arrives ready for local setup with remote guidance if needed.
What power supply does the camera require?
The device operates on a 5 V voltage via a single USB 2.0 Type A port. Maximum power consumption is rated at 5W, ensuring low energy usage.
Can the focal length be adjusted?
No, the BDC-UZ48 uses a fixed-focal lens with a 4mm focal length and F1.6 max aperture. The field of view is fixed at 87° horizontal.
What is included in the packaging?
The package contains the BDC-UZ48 USB camera and one user's manual. It does not include additional cables or mounting hardware beyond standard USB connectivity.
