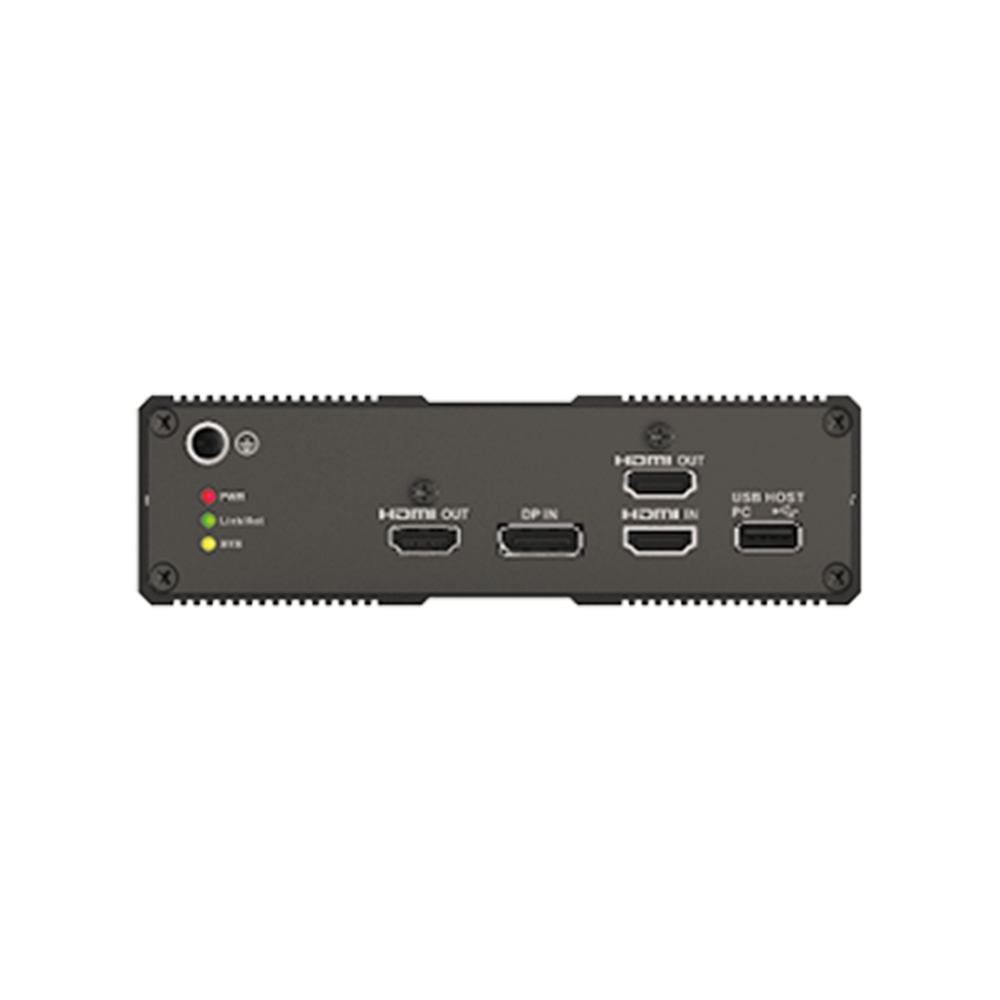

The Dahua NEB0105HI-4K is a 1-channel distributed encoding box for AVoIP video wall systems. It captures 4K UHD @ 30fps via HDMI or DisplayPort and encodes using H.264/H.265. Smart-Boars supplies this unit across the GCC and Africa.
This device serves as a core component in distributed AV over IP architectures, capturing high-resolution video for network transmission. It accepts input from either a single HDMI 1.4 or DisplayPort source, converting it into a streamable format at 3840 x 2160 resolution. The unit supports H.264 and H.265 compression standards, ensuring efficient bandwidth usage while maintaining visual fidelity for large-scale video wall deployments in corporate or educational environments.
Installation flexibility is supported through redundant power options, accepting either 12 VDC or Power over Ethernet (PoE) inputs. Network connectivity is managed via a 1000M RJ-45 port, compatible with TCP/IP, RTP, RTSP, and other standard protocols for reliable data transport. The box includes local output capabilities via HDMI 2.0 and loop ports, alongside serial and alarm interfaces for system integration. Designed for operation in varying climates, it functions between -10 to 55 °C with a compact 0.65 kg form factor.
Key features
- 4K Video Capture - Captures 1-channel HDMI or DisplayPort input and encodes 3840 x 2160 video at 30 fps using H.264 or H.265 codecs.
- Network Protocols - Supports TCP/IP, RTP, RTSP, HTTP, and UDP over a 1000M Ethernet interface for stable AVoIP transmission.
- Redundant Power - Accepts 12 VDC (2.0 A) or PoE power inputs to ensure continuous operation in critical video wall setups.
- Local Output - Provides 1-channel HDMI 2.0 output and 1-channel HDMI loop output for direct display monitoring.
- Integration Ports - Includes RS-232, RS-485, and dual alarm in/out ports for control system connectivity and peripheral triggering.
- Development Support - Provides an SDK, demo software, and development manual for custom application integration and control.
Ideal for: Video wall integration in schools, government ministries, and corporate headquarters across the GCC and Africa requiring reliable 4K AVoIP distribution.
Request a quote: email info@procure.ae or call +971 4 546 5041. Smart-Boards: supply and shipping across the GCC and Africa, installation in the UAE.
General
- Model
- NEB0105HI-4K
- Product type
- 1-Channel 4K Encoding Box
- Key features
- 4K H.264 and H.265 encoding, HDMI and DisplayPort capture, HDMI loop output, two alarm inputs and outputs, RS-232 and RS-485, PoE or 12 VDC power, SDK provided
- Channels
- 1 channel
- Protocols
- RTSP, private, TCP/IP, RTP, HTTP, UDP, DHCP, NTP
Display
- Resolution
- 4K UHD
Connectivity
- Serial port
- RS-232 × 1 (DB9)
- Ports
- HDMI 1.4 In × 1, DisplayPort In × 1, HDMI 2.0 Out × 1, HDMI Loop Out × 1, RJ-45 1000M × 1, RS-232 × 1, RS-485 × 1, USB 2.0 × 1, Alarm In × 2, Alarm Out × 2
Camera & audio
- Audio in
- Embedded HDMI/DP audio, 3.5 mm jack × 1
- Audio codecs
- H.264 (default), H.265 video; G.711a audio
Physical & warranty
- Operating humidity
- 10% to 90% RH, 86 to 106 kPa
- Operating temperature
- -10 to 55 °C
- Power consumption
- 10 W (maximum)
- Weight
- 0.65 kg
- Power source
- 12 VDC, 2.0 A or PoE, redundant inputs
How do I get a price for this product?
Do you deliver across the GCC and Africa?
Do you offer installation and setup?
Is there a warranty?
Can I order in bulk for schools or offices?
What video codecs does the NEB0105HI-4K support?
It supports H.264 and H.265 video codecs for encoding 4K UHD content. Audio encoding uses the G.711a standard, ensuring compatibility with most AVoIP decoders and display processors in regional installations.
Can the unit be powered via PoE?
Yes, the NEB0105HI-4K supports redundant power inputs. It can operate using standard 12 VDC power or Power over Ethernet (PoE), allowing flexible deployment options in existing network infrastructure across GCC and African sites.
Which countries receive delivery from your office?
We ship to GCC countries including UAE, KSA, Qatar, Kuwait, Oman, and Bahrain, as well as various African nations. Delivery times depend on order size and destination, confirmed during the quotation process through established logistics partners.
Is on-site installation available outside the UAE?
On-site installation is provided only within the UAE. For GCC and African countries, units are delivered ready for local setup, with remote guidance available if needed to assist local technicians with configuration and mounting.
Does it support remote management?
Yes, the device supports remote reboot, firmware upgrades, and default setting resets via the network. It utilizes standard protocols like TCP/IP and RTSP, allowing administrators to manage the unit without physical access to the hardware.
What is the maximum power consumption?
The maximum power consumption is 10 W. This low energy requirement makes it suitable for dense video wall controllers where heat management and power efficiency are critical for long-term reliability in warm climates.
What alarm and serial interfaces are included?
The unit features one RS-232 (DB9) and one RS-485 serial port for control integration. It also includes two alarm inputs and two alarm outputs, allowing connection to external sensors or status indicators for system monitoring.
